Test Z: The Heated Seat Does Not Operate Correctly - Right Rear Seat Does Heat But The Heated Seat Indicator Is On All The Time

PINPOINT TEST Z: THE HEATED SEAT DOES NOT OPERATE CORRECTLY - RIGHT REAR SEAT DOES HEAT BUT THE HEATED SEAT INDICATOR IS ON ALL THE TIME

Normal Operation
Pressing the right rear heated seat switch once in either the high or low mode will commanded on the left rear heated seat. Voltage is then supplied to the left rear heated seat switch from the heated seat module on either circuit CHS52 (BU) (high heat mode) or circuit CHS53 (WH/BN) (low heat mode) illuminating the switch indicator. Pressing the right rear heated seat switch again in the mode that is currently on will set the right rear heated seat to off and also turn that LED off.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Heated seat module

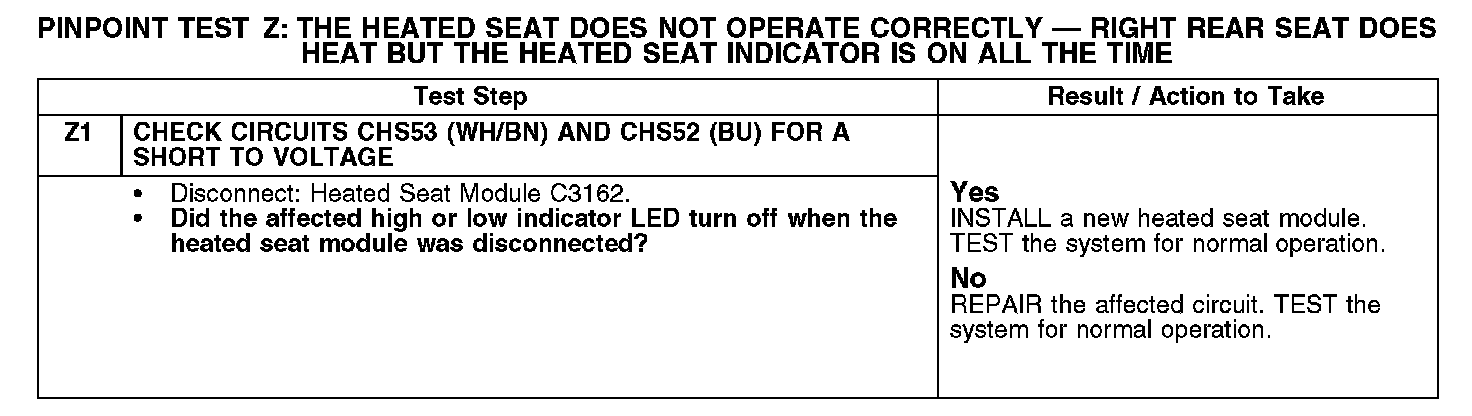

Z1:
