Test D: The Power Seat Is Inoperative - Passenger, Without Power Recliner

PINPOINT TEST D: THE POWER SEAT IS INOPERATIVE - PASSENGER, WITHOUT POWER RECLINE

Normal Operation
The passenger seat control switch is powered by battery voltage to the passenger seat control switch, circuit SBB21 (GY/RD), and is supplied ground on passenger circuit GD148 (GK/YE). When pressed, the seat control switch supplies that voltage and ground to the power seat track motor to move the seat. When pressed in the opposite direction, the seat control switch reverses the polarity to the power seat track motor, which moves the seat in the opposite direction. There is one power seat track motor which moves the seat horizontally (forward/rearward). If a new motor needs to be installed, it is necessary to install an entire power seat track.

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Seat control switch
- Power seat motor (seat track)

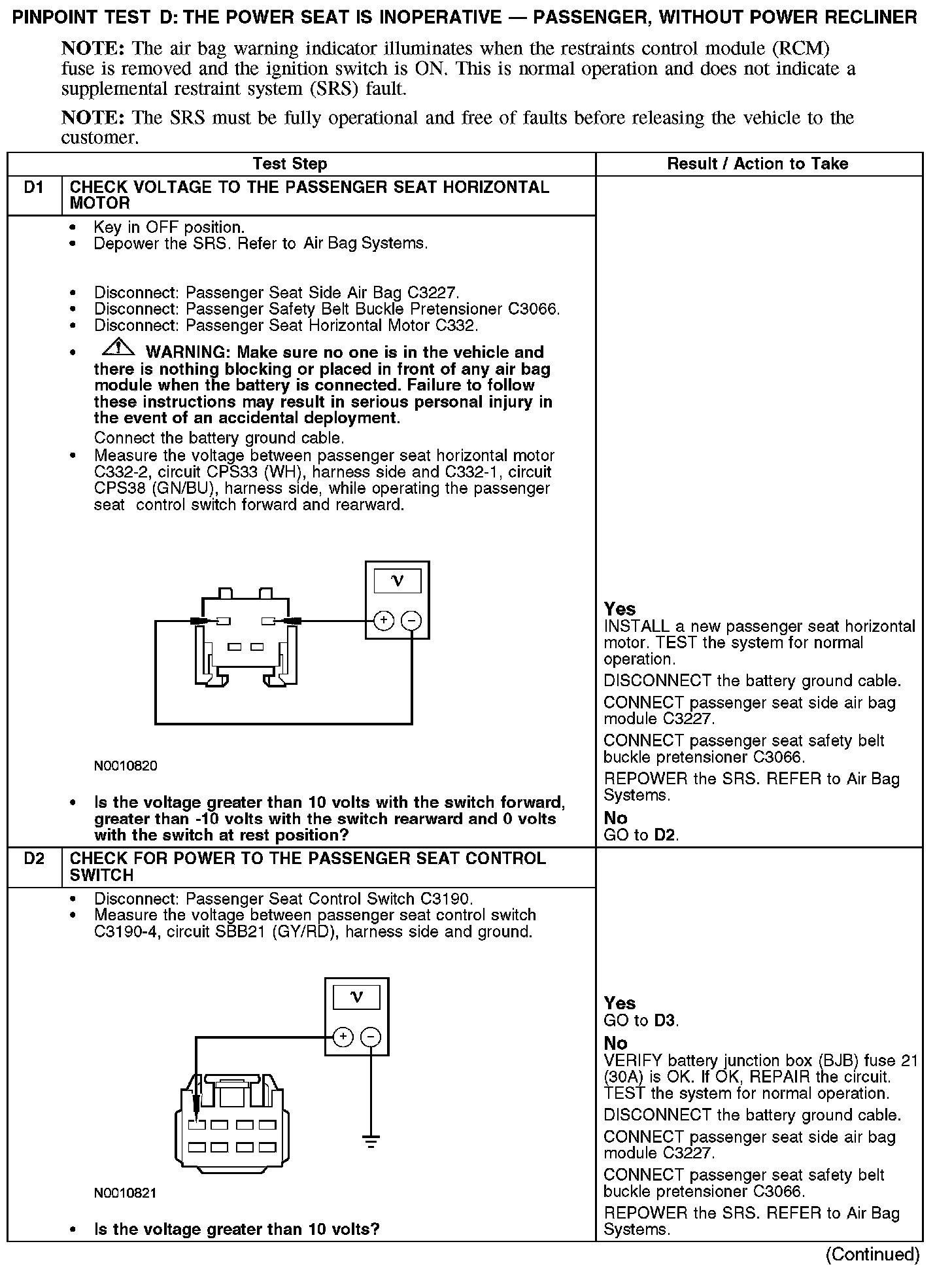

D1-D2:

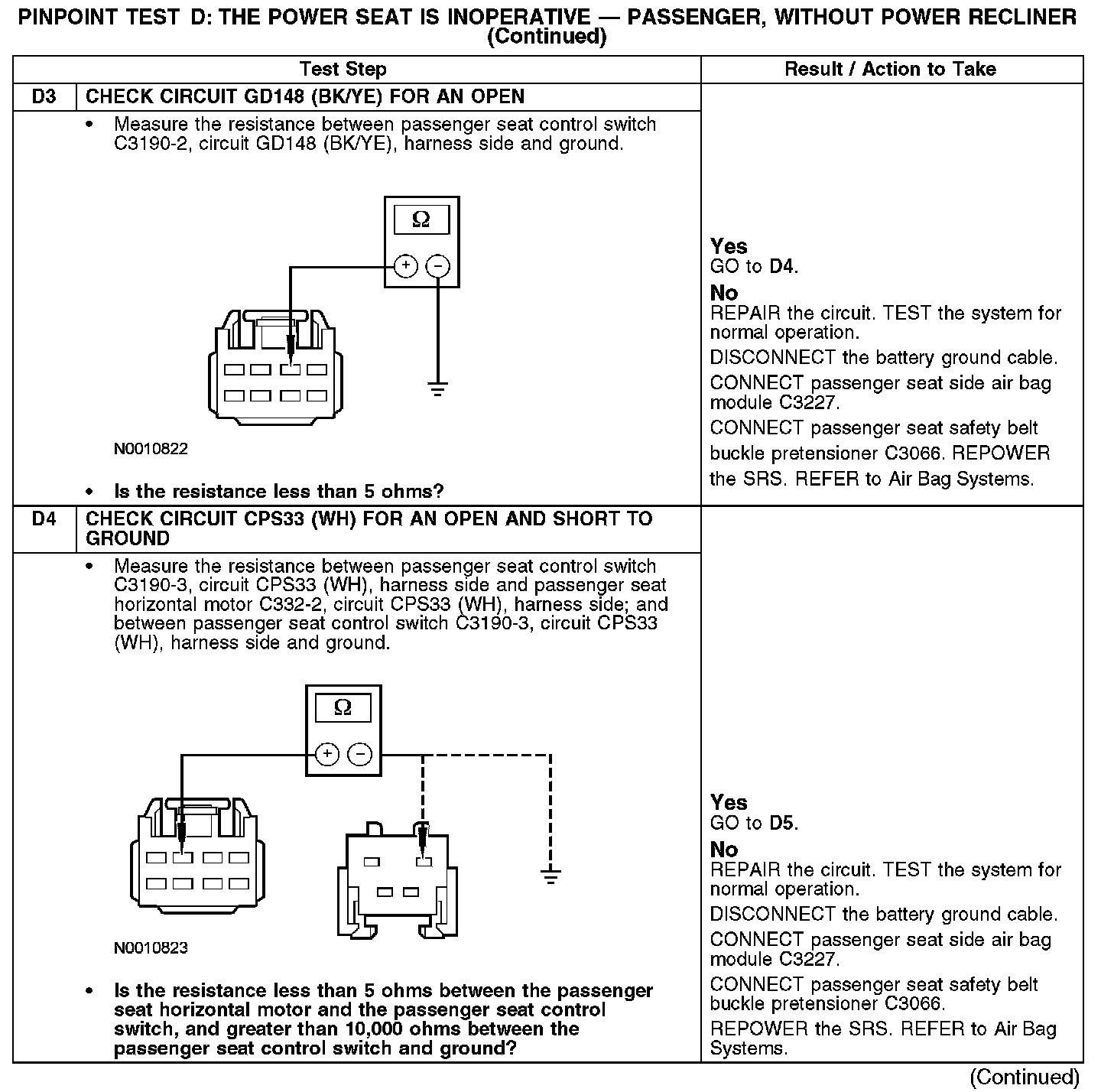

D3-D4:

D5:
