Seat Recliner - Front

SEAT RECLINER - FRONT

Exploded View


Front Seat Backrest (Part 1):






Front Seat Backrest (Part 2):






Driver Front Seat Cushion (Part 1):






Driver Front Seat Cushion (Part 2):






Passenger Front Seat Cushion (Part 1):






Passenger Front Seat Cushion (Part 2):






Special Tool(s)

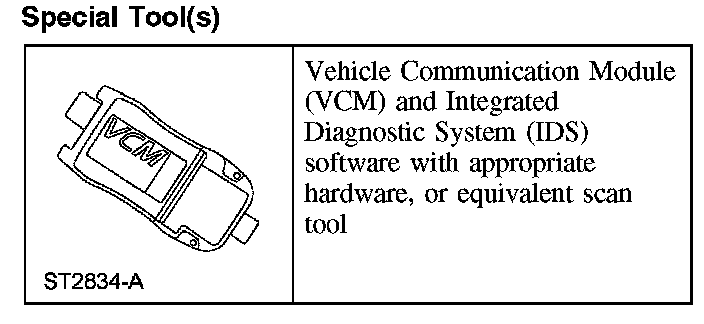

Special Tool(s):






Removal and Installation

WARNING:
- Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which increases the risk of serious personal injury or death.
- Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.

CAUTION: To prevent system failure, it is necessary to carry out the occupant classification sensor (OCS) system reset when a front passenger seat cushion is disassembled, a new trim cover installed or an OCS system service kit is installed. A scan tool is used to carry out the OCS system reset command.

NOTE:
- The air bag warning indicator illuminates when the restraint control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

All seats
1. Remove the front seat.
2. Remove the seat track.
3. Release the cushion trim cover J-clips on the sides of the seat to access the roll pins.
4. Drive out the 2 large roll pins toward the front of the seat cushion pan.
5. Drive out the 2 small roll pins toward the rear of the seat cushion pan.

Power seat recliner
6. Disconnect the power recliner electrical connector.
7. Remove the 3 power recliner screws.

All seats
8. Remove the manual/power recliner.
9. To install, reverse the removal procedure.
10. Install the seat.
11. Repower the SRS. Do not prove out the SRS at this time.

Passenger seat

12. WARNING:
- Make sure the front passenger seat repair is complete, the seat and all attached components (head restraint, seat side shield, etc.) are correctly assembled, and the seat is correctly installed to the vehicle before carrying out the System Reset. Failure to follow these instructions may result in incorrect operation of the occupant classification sensor (OCS) system and increases the risk of serious personal injury or death in a crash.
- Install a new occupant classification sensor (OCS) system service kit as a complete assembly. Never install only part of the kit components. Failure to follow this instruction may result in incorrect operation of the OCS system and increases the risk of serious personal injury or death in a crash.

CAUTION:
- To prevent system failure, it is necessary to carry out the occupant classification sensor (OCS) system reset when a front passenger seat cushion is disassembled, a new trim cover installed or an OCS system service kit is installed. A scan tool is used to carry out the OCS system reset command.
- To prevent system failure the following precautions must be taken before carrying out the occupant classification sensor (OCS) system reset:
- Make sure the voltage to the OCSM is above 8.0 volts and less than 18.0 volts.
- Make sure the OCS system is not at a temperature below 6°C (42°F) or above 36°C (97°F) when initiating the OCS system reset process. If the vehicle has been exposed to extreme cold or hot temperatures, the vehicle must be exposed and kept at a temperature within the limits, 6°C to 36°C (42°F to 97°F) for a minimum of 30 minutes.
- Make sure nothing is present on the passenger seat before carrying out the OCS system reset and nothing is placed on the seat during the process.
- Make sure a minimum 8-second time period has passed after cycling the ignition switch ON before the carrying out the OCS system reset process.

NOTE: If the first attempt to carry out the OCS system reset is unsuccessful, a second attempt must made. If the second attempt to carry out the OCS system reset is unsuccessful, a new OCS system service kit must be installed.

Carry out the OCS system reset.

13. NOTE: The ignition switch must be cycled after the OCS system reset.

Cycle the ignition switch from ON to OFF.

All seats
14. Prove out the SRS as follows:

Turn the ignition key from ON to OFF. Wait 10 seconds, then turn the key back to ON and visually monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator will light continuously for approximately 6 seconds and then turn off. If an air bag SRS fault is present, the air bag warning indicator will:
- fail to light.
- remain lit continuously.
- flash.

The flashing might not occur until approximately 30 seconds after the ignition switch has been turned from the OFF to the ON position. This is the time required for the RCM to complete the testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag warning indicator and any SRS fault discovered must be diagnosed and repaired.

Clear all continuous DTCs from the RCM and OCSM using a scan tool.
