Seat Cushion - Driver
SEAT CUSHION - DRIVERDisassembly and Assembly

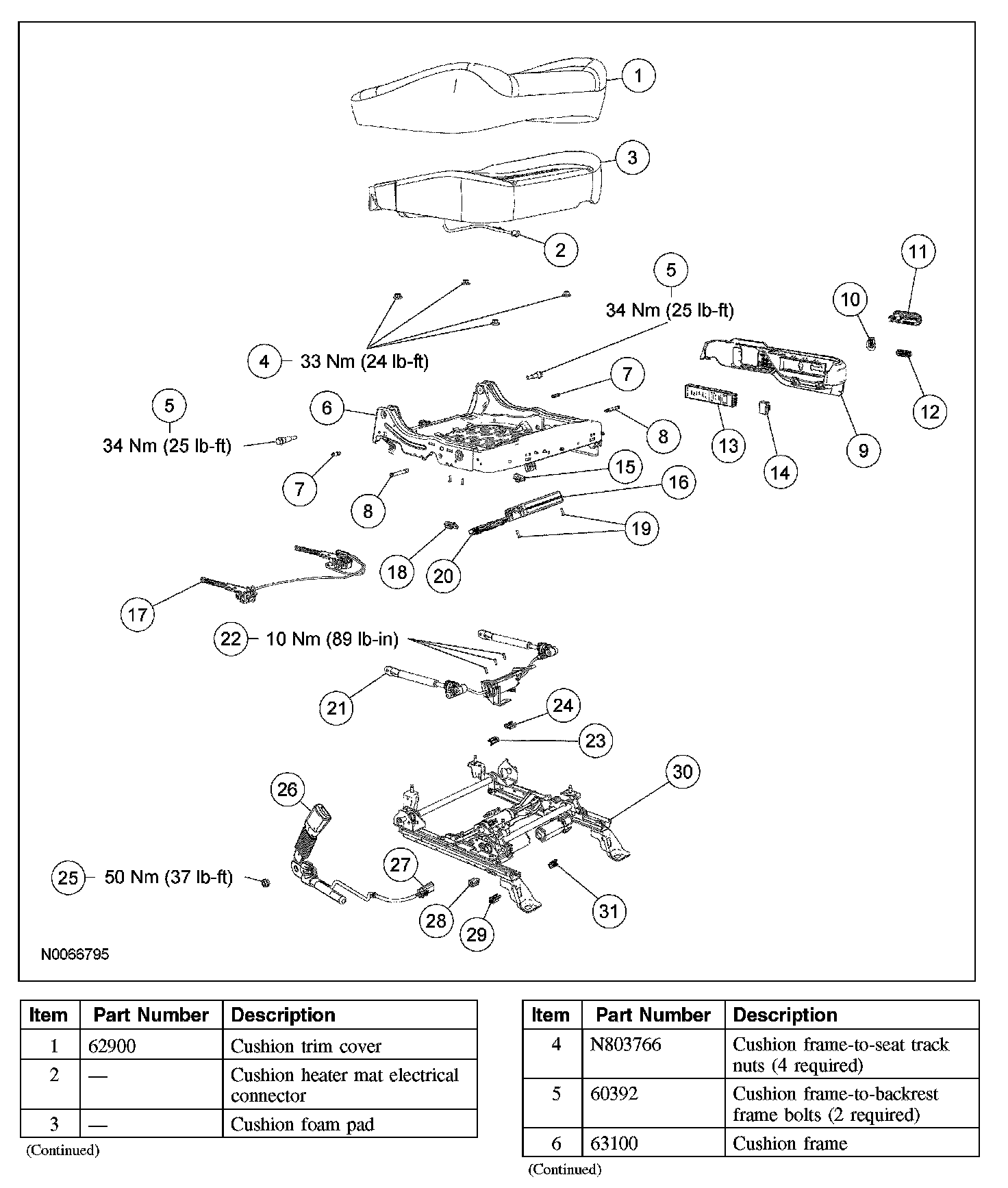

Part 1:

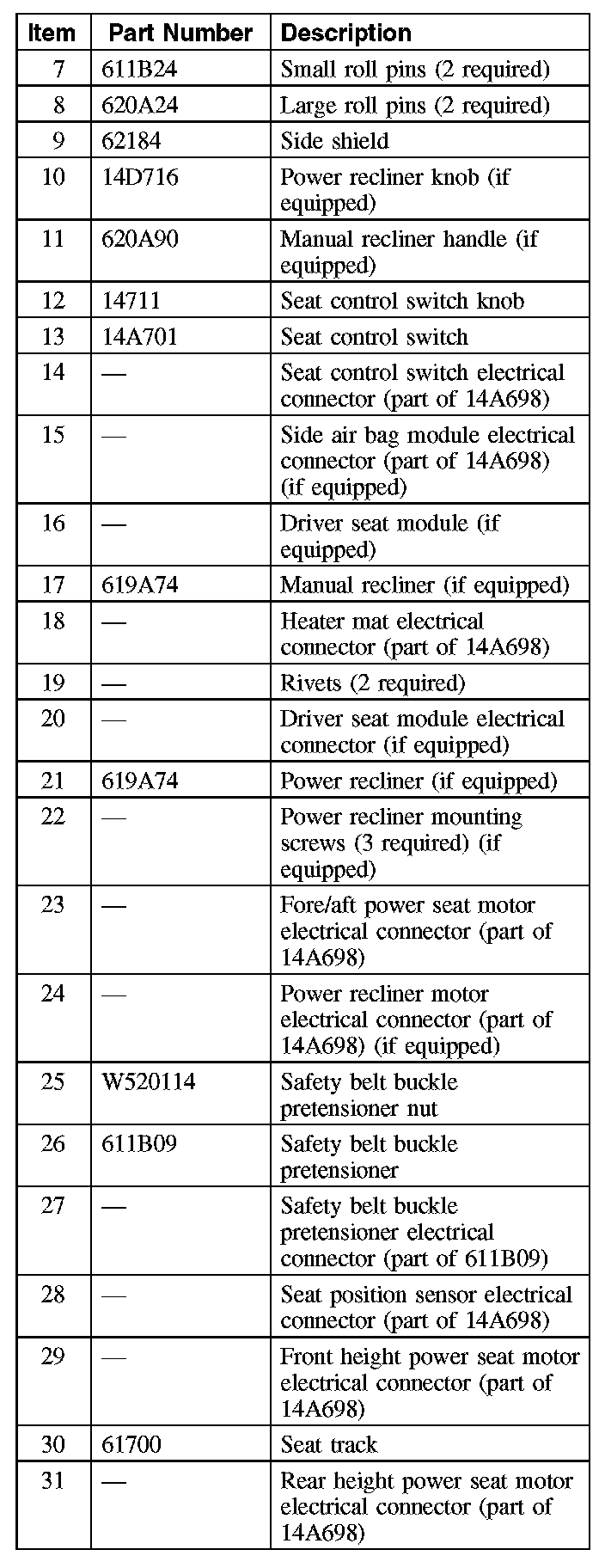

Part 2:
WARNING:
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
- Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which increases the risk of serious personal injury or death.
- Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
NOTE:
- The air bag warning indicator illuminates when the restraint control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
All seats
1. Remove the front seat.
2. Remove the front seat backrest.
3. Remove the seat track.
Seat with power recline
4. Disconnect the power recliner motor electrical connector.
5. Drive out the 2 large roll pins.
6. Remove the 3 bolts and the power recliner assembly.
- To install, tighten to 10 Nm (89 lb-in).
Seat with manual recline
7. Drive out the 2 large roll pins and remove the manual recliner.
All seats
8. If equipped, remove the 2 rivets, disconnect the 4 connectors and remove the driver seat module.
9. Remove the seat wire harness.

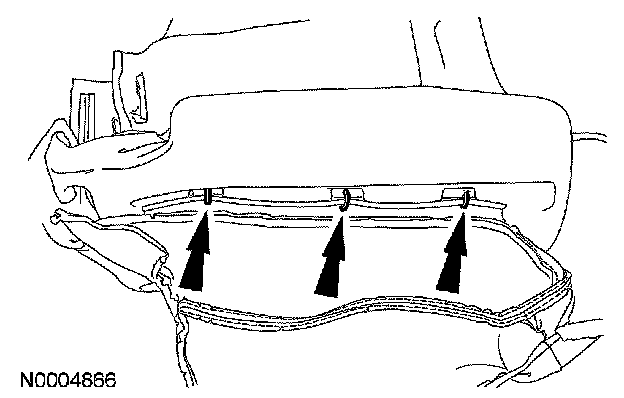

10. Remove the hog rings and the cushion trim cover from the cushion foam pad.
11. To assemble, reverse the disassembly procedure.
12. Install the seat.
- If a new seat track has been installed on a driver seat with memory, the seat must be operated in all directions through the full range of travel to avoid a premature stopping point occurrence after the vehicle is returned to the customer.
13. Repower the SRS.
