Seat Backrest - Third Row

SEAT BACKREST - THIRD ROW

Disassembly and Assembly

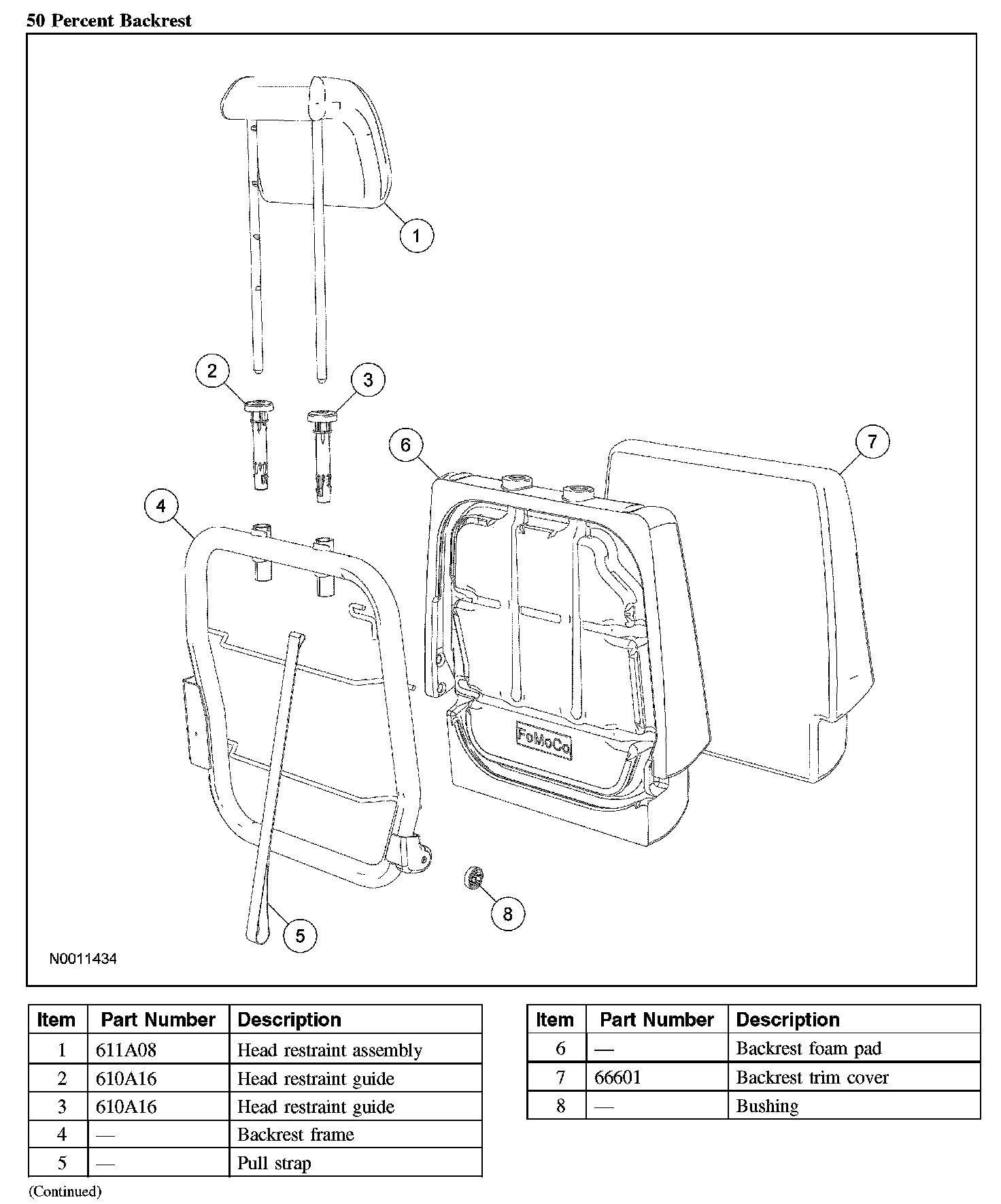

50 Percent Backrest:

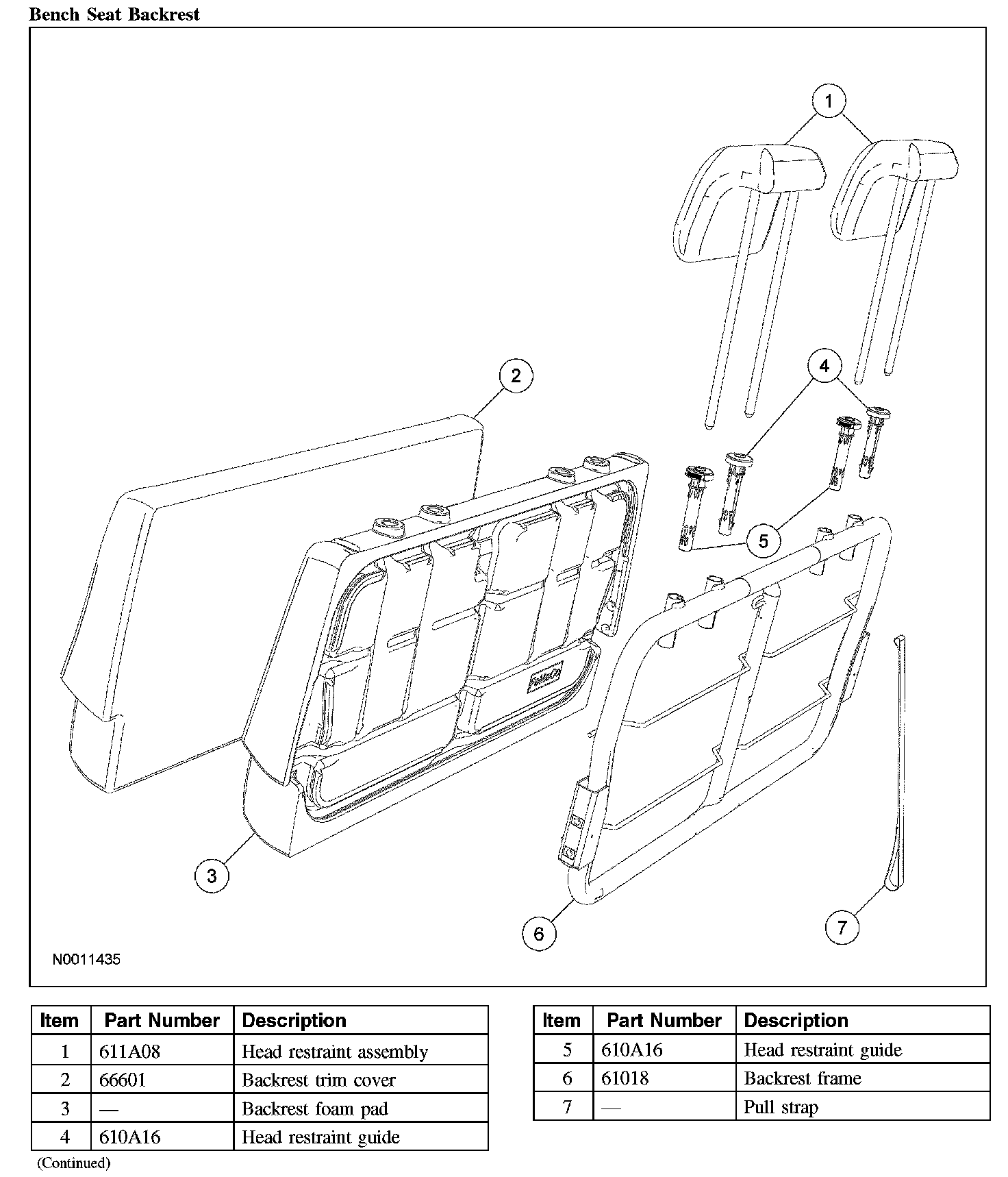

Bench Seat Backrest:

1. Remove the affected third row backrest.
2. Remove the head restraint(s).

3. CAUTION: Use care when separating the seat back trim cover from the hook-and-loop strip, or the hook-and-loop strip may be torn from the seat back foam.

Release the hook-and-loop strips, invert the trim cover and remove the hog rings.

4. Remove the head restraint guides.
- For bench seats, remove 4 head restraint guides.
- For 50/50 seats, remove 2 head restraint guides.

5. Remove the backrest trim cover.
- Pull the strap through the trim cover.

6. Remove the backrest foam pad.
7. For 50 percent backrest, remove the bushing.
8. To assemble, reverse the disassembly procedure.
