Test E: The Roof Opening Panel Does Not Open Or Close

PINPOINT TEST E: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE

The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel system, including: whenever the roof opening panel motor has been removed from the roof opening panel system, the roof opening panel glass has been removed from the roof opening panel system, the roof opening panel assembly has been removed from the vehicle, a new roof opening panel motor has been installed, a new roof opening panel glass has been installed or a new roof opening panel assembly has been installed. Refer to Roof Opening Panel Motor Initialization. Programming and Relearning

Normal Operation
The roof opening panel uses a integrated motor and module to operate the roof opening panel. A new roof opening panel motor/module is installed as an assembly.

The roof opening panel motor/module receives voltage from the accessory delay relay through circuit CBP41 (BU) when the key is in the ACC or RUN position and voltage at all times through circuit SBP19 (BU/RD). The roof opening panel motor/module provides ground to the roof opening panel switch through circuit CPR39 (VT/WH). When the roof opening panel switch is pressed to the CLOSE position, a ground signal is sent to the roof opening panel motor/module through circuit CPR40 (YE/OG), which causes the roof opening panel to close. When the roof opening panel switch is pressed to the OPEN position, a ground signal is sent to the roof opening panel motor/module through circuit CPR31 (VT/BN), which causes the roof opening panel to open.

This pinpoint test is intended to diagnose the following:
- Fuse(s)
- Wiring, terminals or connectors
- Roof opening panel switch
- Roof opening panel motor/module assembly
- Accessory delay relay

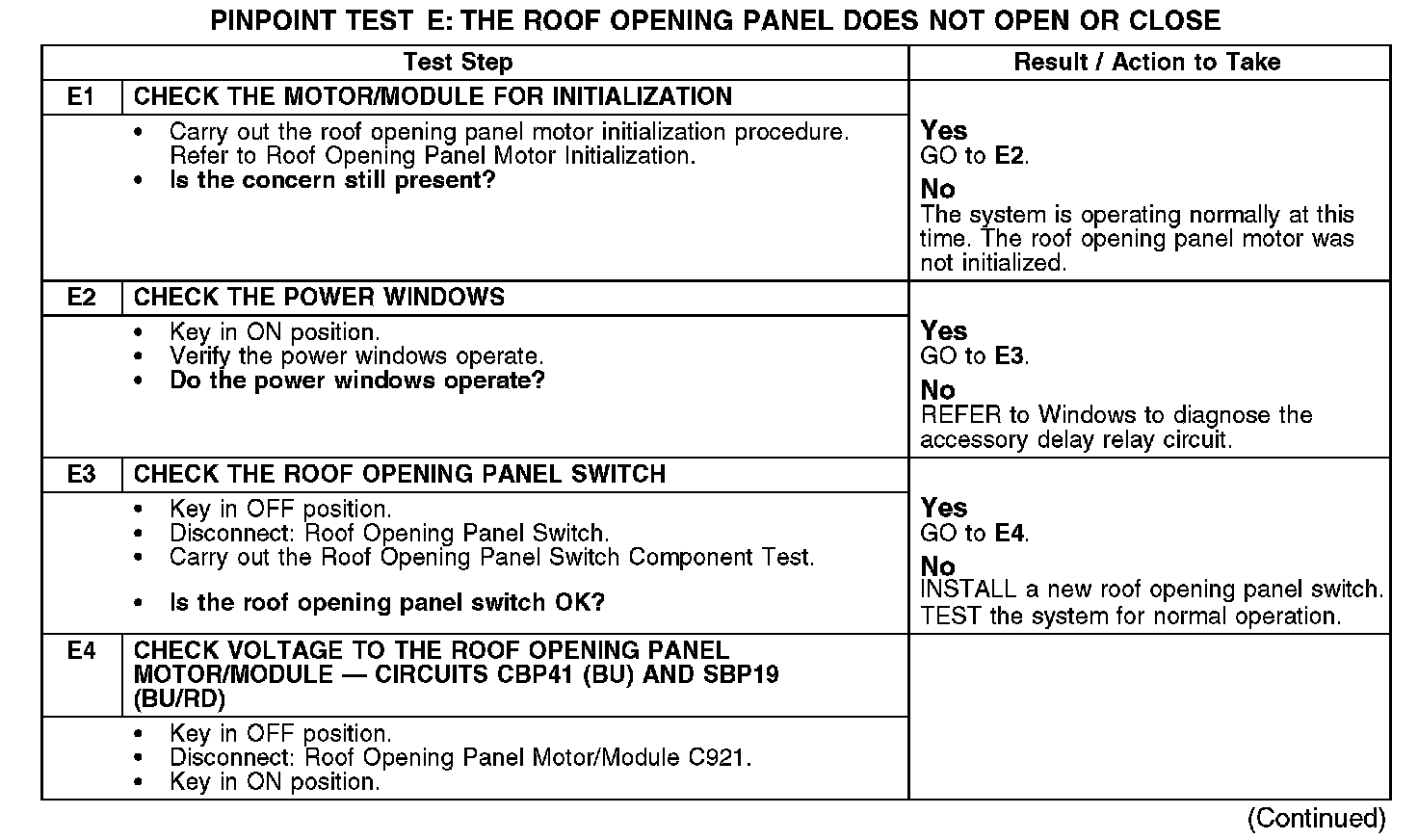

E1-E4:

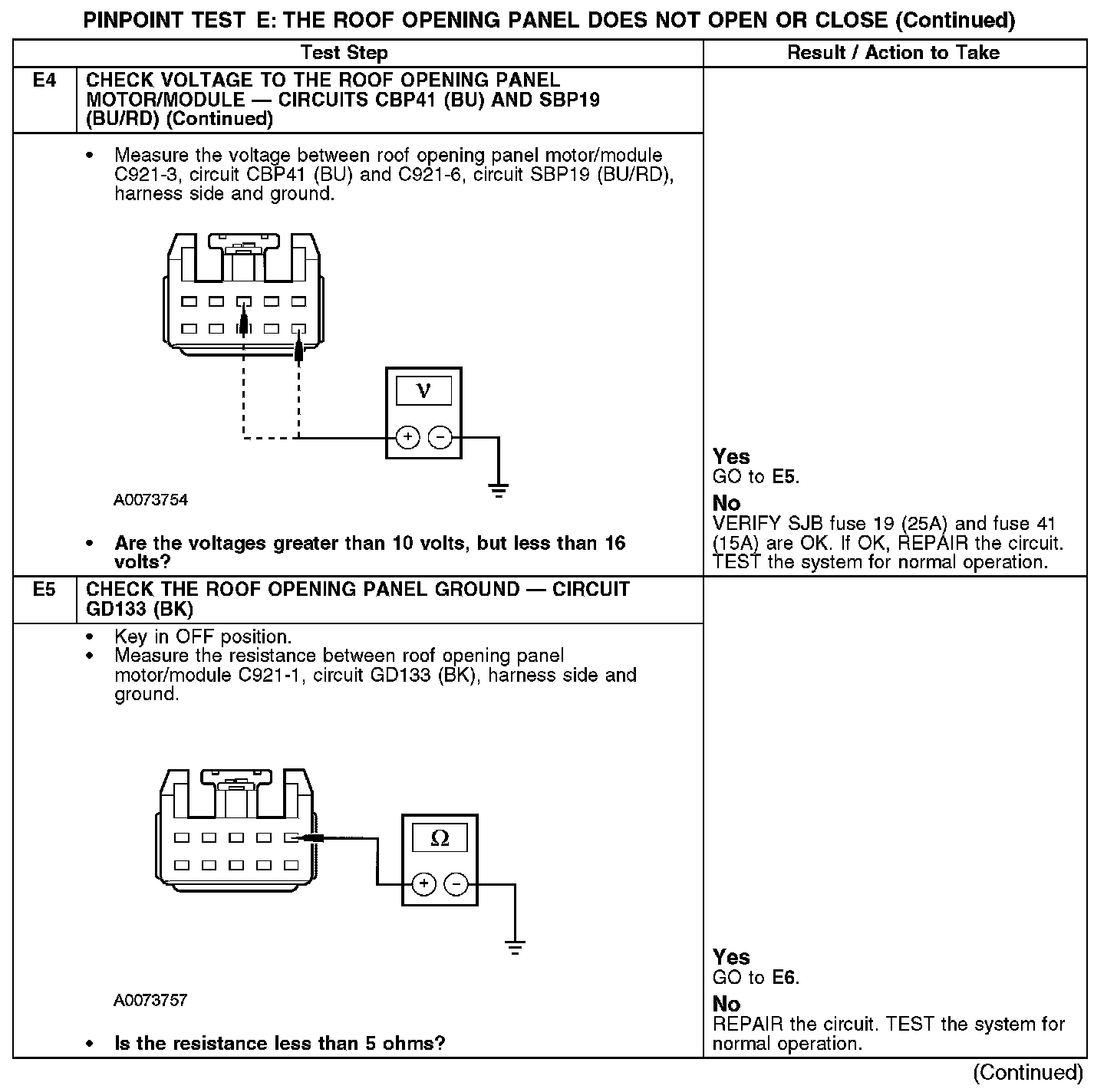

E4-E5:

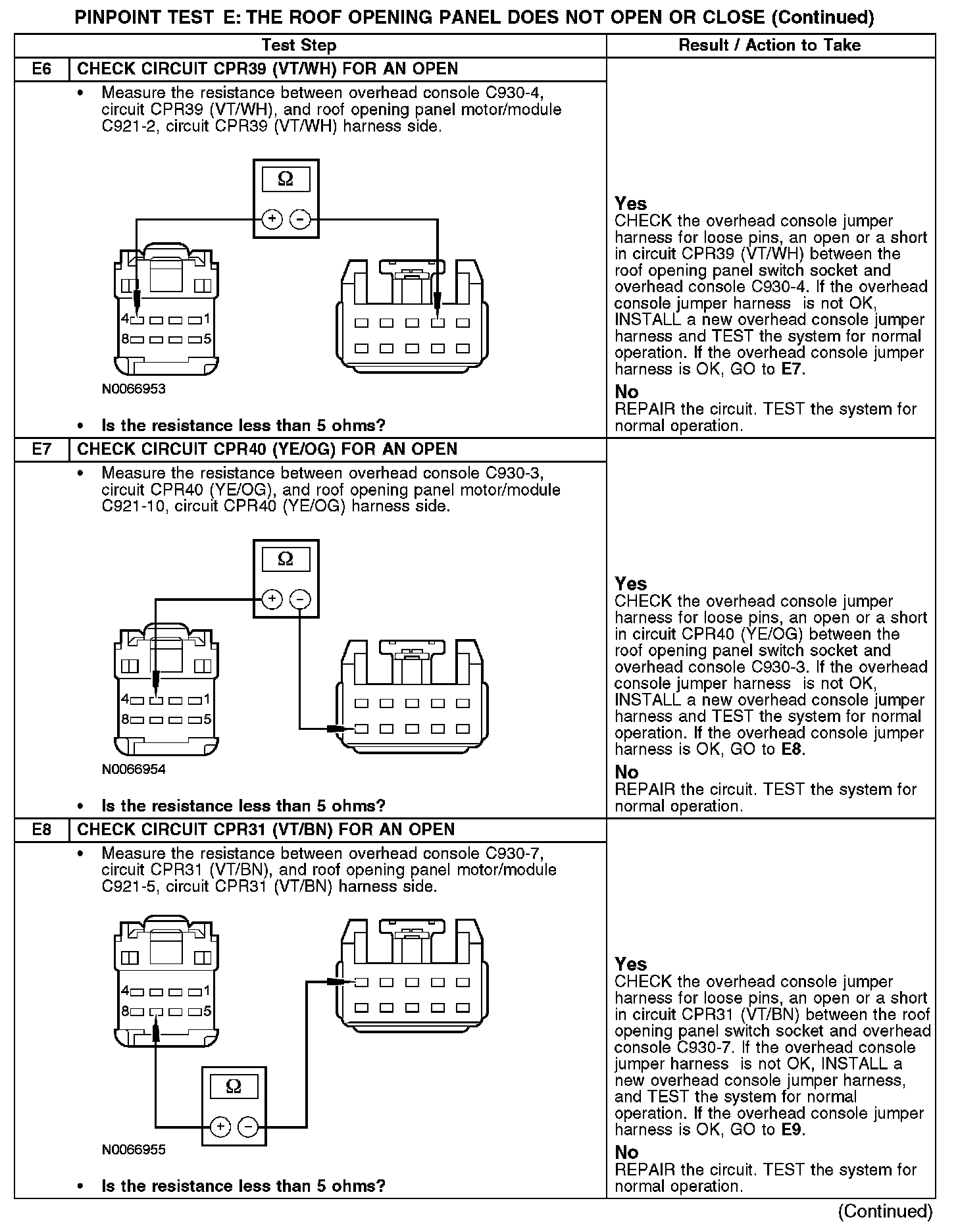

E6-E8:

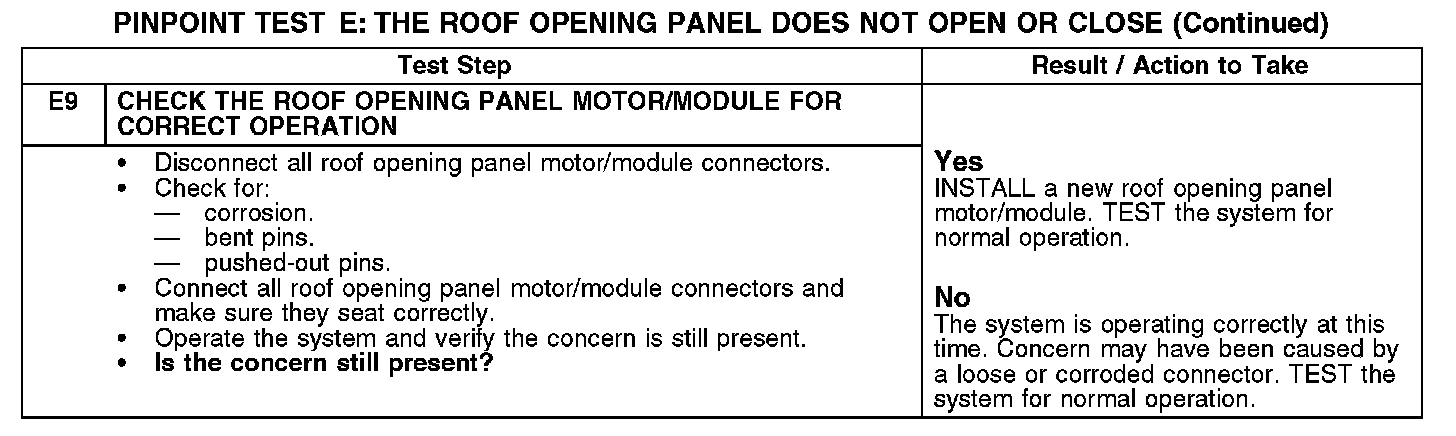

E9:
