Test C: The Roof Opening Panel Rattles

PINPOINT TEST C: THE ROOF OPENING PANEL RATTLES

Normal Operation
When the roof opening panel glass is completely closed, it should be within specifications. Refer to Specifications. All components should be secured correctly.

This pinpoint test is intended to diagnose the following:
- Roof opening panel glass
- Roof opening panel air deflector assembly
- Roof opening panel trough
- Roof opening panel lifter assemblies
- Headliner
- Roof opening panel motor/module pad
- Roof opening panel frame

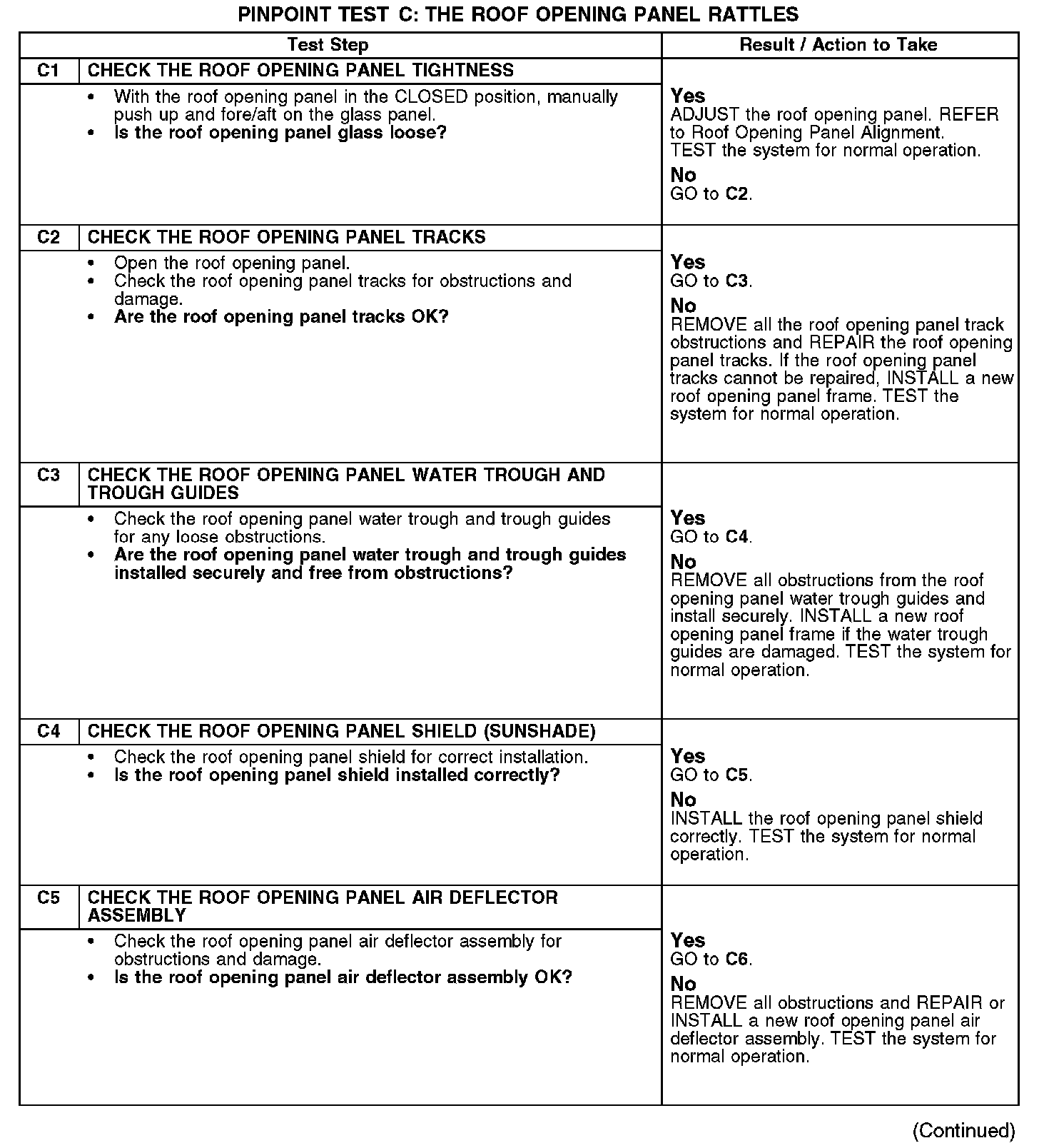

C1-C5:

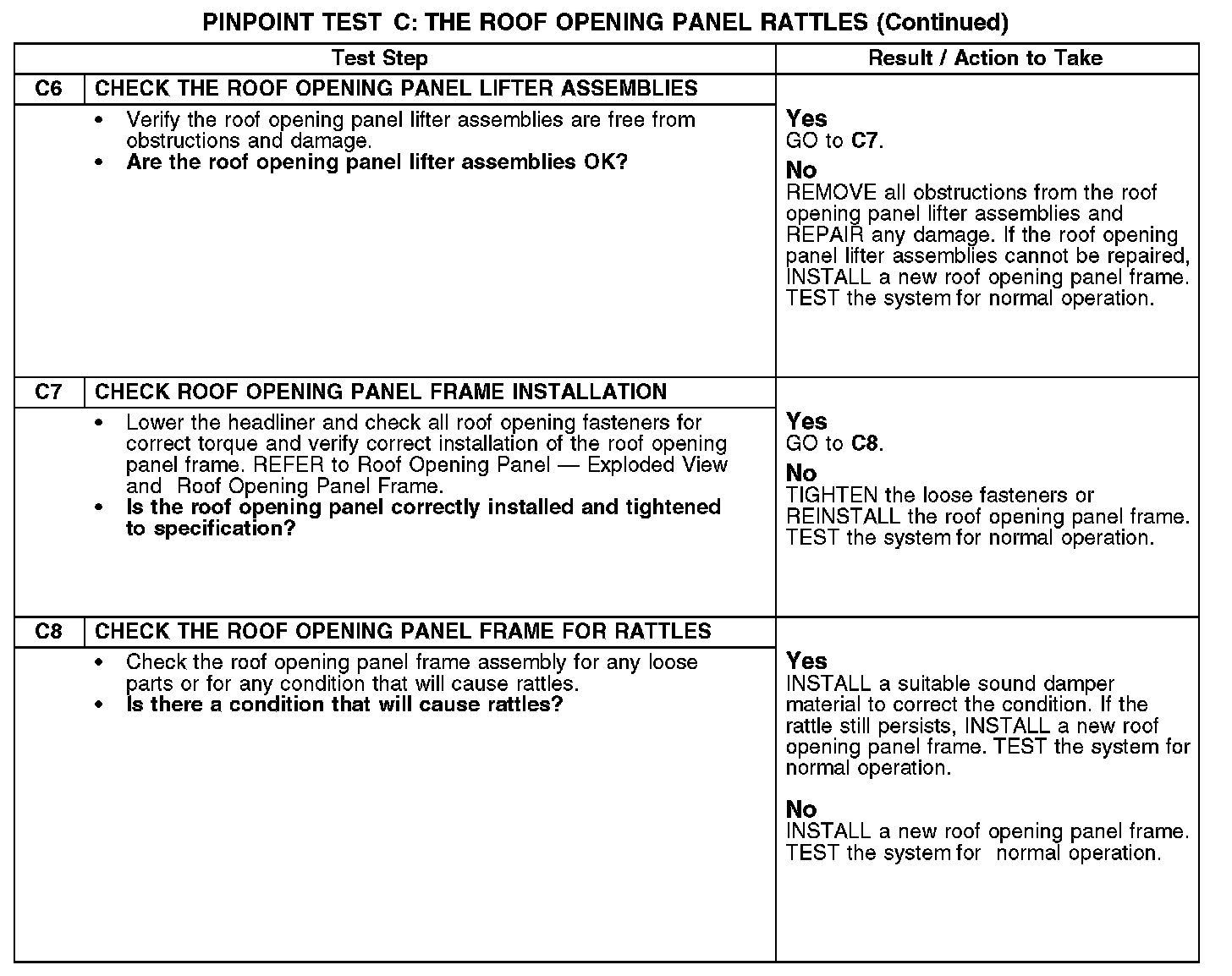

C6-C8:
