Test B: the Roof Opening Panel Leaks

PINPOINT TEST B: THE ROOF OPENING PANEL LEAKS

Normal Operation
When the roof opening panel glass is completely closed, it should be within specifications. Refer to Specifications.

This pinpoint test is intended to diagnose the following:
- Roof opening panel adjustment
- Roof opening panel drain hose(s)
- Roof opening panel seal/weatherstrip
- Roof opening panel frame
- Roof opening panel trough

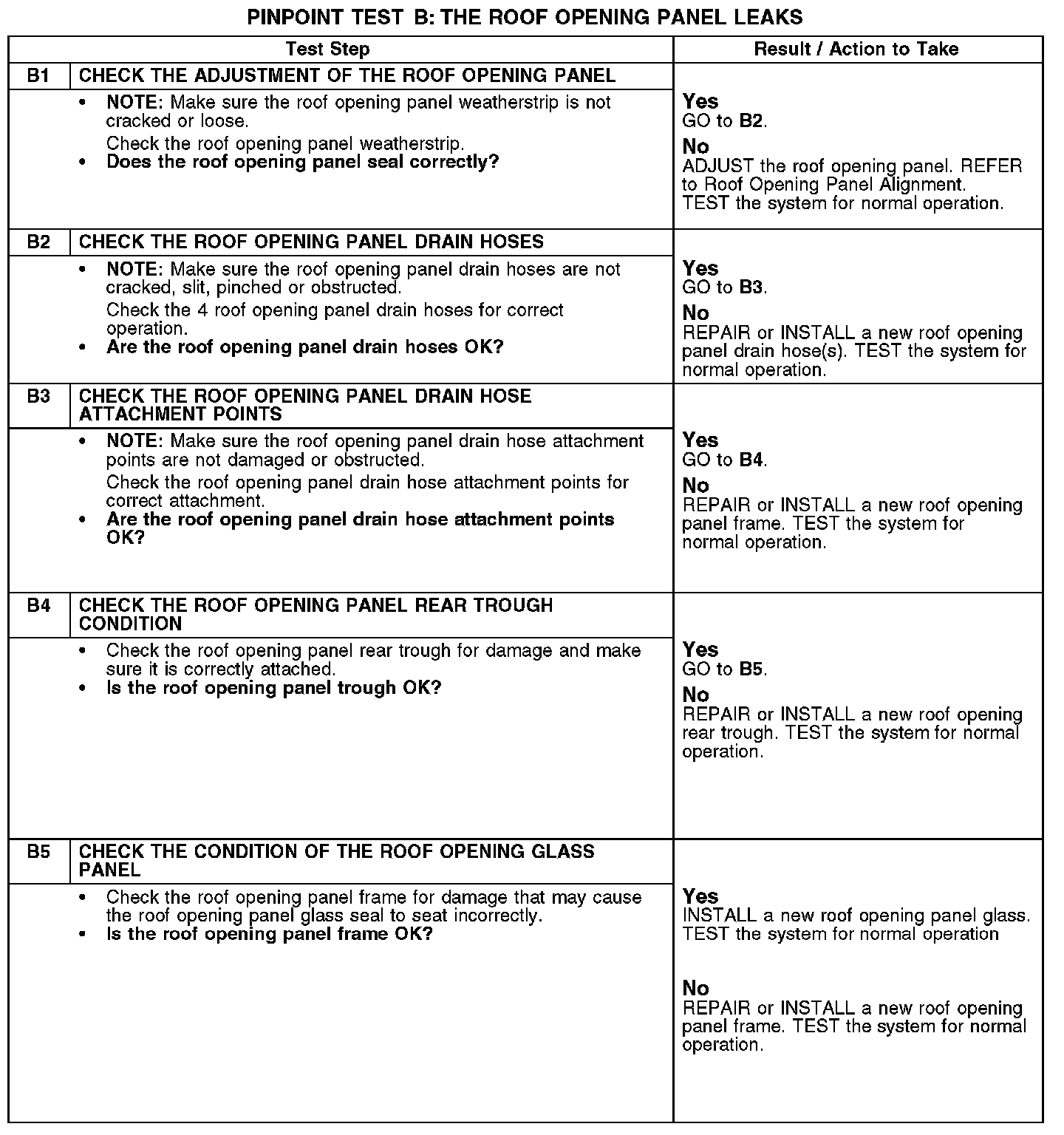

B1-B5:
