Test C: A Single Mirror Does Not Function With Switch Logic - Non-Memory Mirrors

PINPOINT TEST C: A SINGLE MIRROR DOES NOT FUNCTION WITH SWITCH LOGIC - NON-MEMORY MIRRORS

Normal Operation
Under normal operation, the exterior mirror control switch uses circuits CPM16 (BN/BU), CPM17 (BU/GN), CPM20 (BN/WH), CPM21 (YE/VT) or CPM23 (GY) to control the exterior mirror movement.

- When power is received through circuit CPM16 (BN/BU)/CPM20 (BN/WH) and ground through circuit CPM23 (GY), the LH/RH exterior mirror will operate left.
- When ground is received through circuit CPM16 (BN/BU)/CPM20 (BN/WH) and power through circuit CPM23 (GY), the LH/RH exterior mirror will operate right.
- When power is received through circuit CPM17 (BU/GN)/CPM21 (YE/VT) and ground through circuit CPM23 (GY), the LH/RH exterior mirror will operate down.
- When ground is received through circuit CPM17 (BU/GN)/CPM21 (YE/VT) and power through circuit CPM23 (GY), the LH/RH exterior mirror will operate up.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Exterior mirror control switch
- Exterior mirror motor
- Exterior mirror

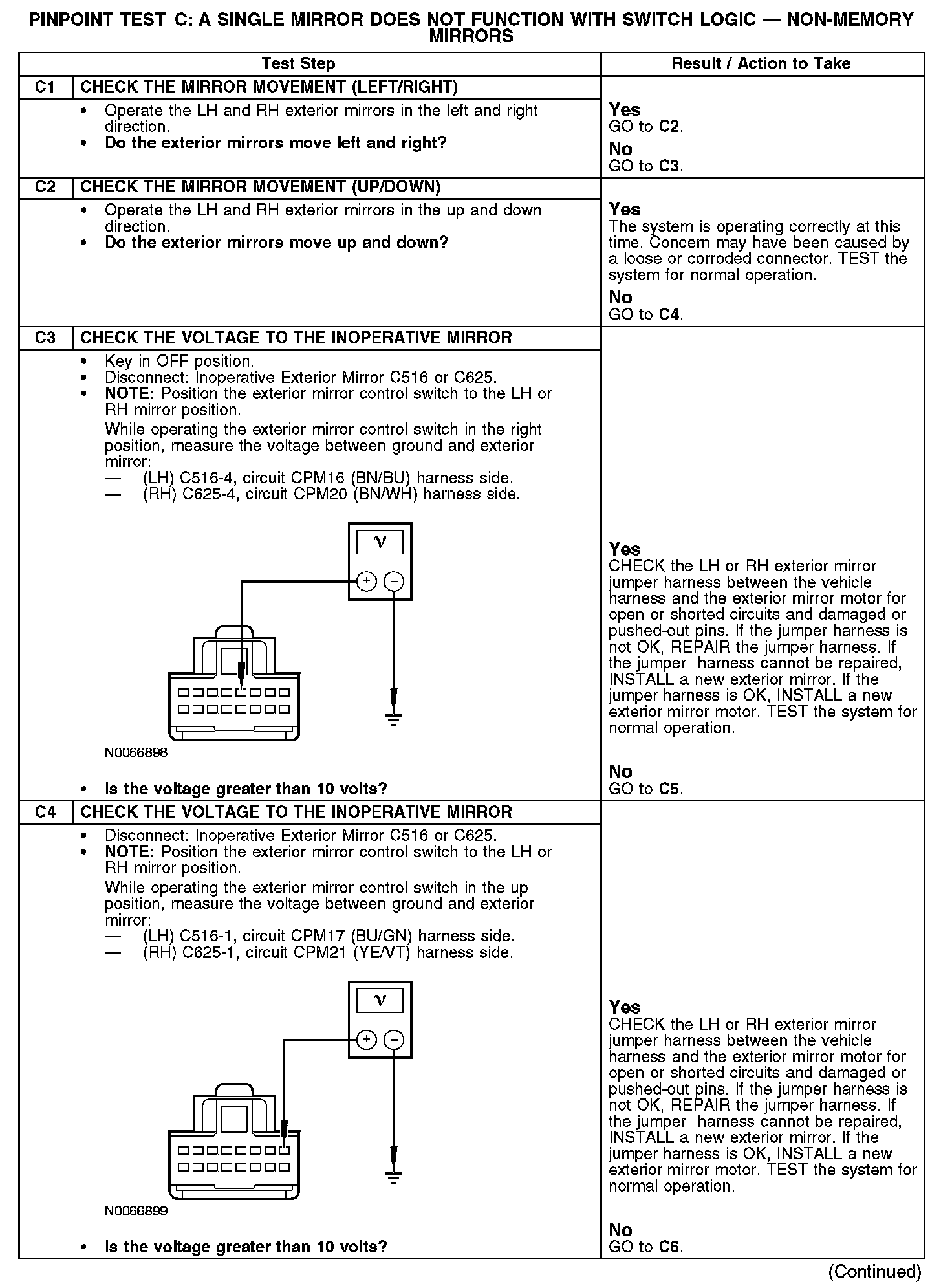

C1-C4:

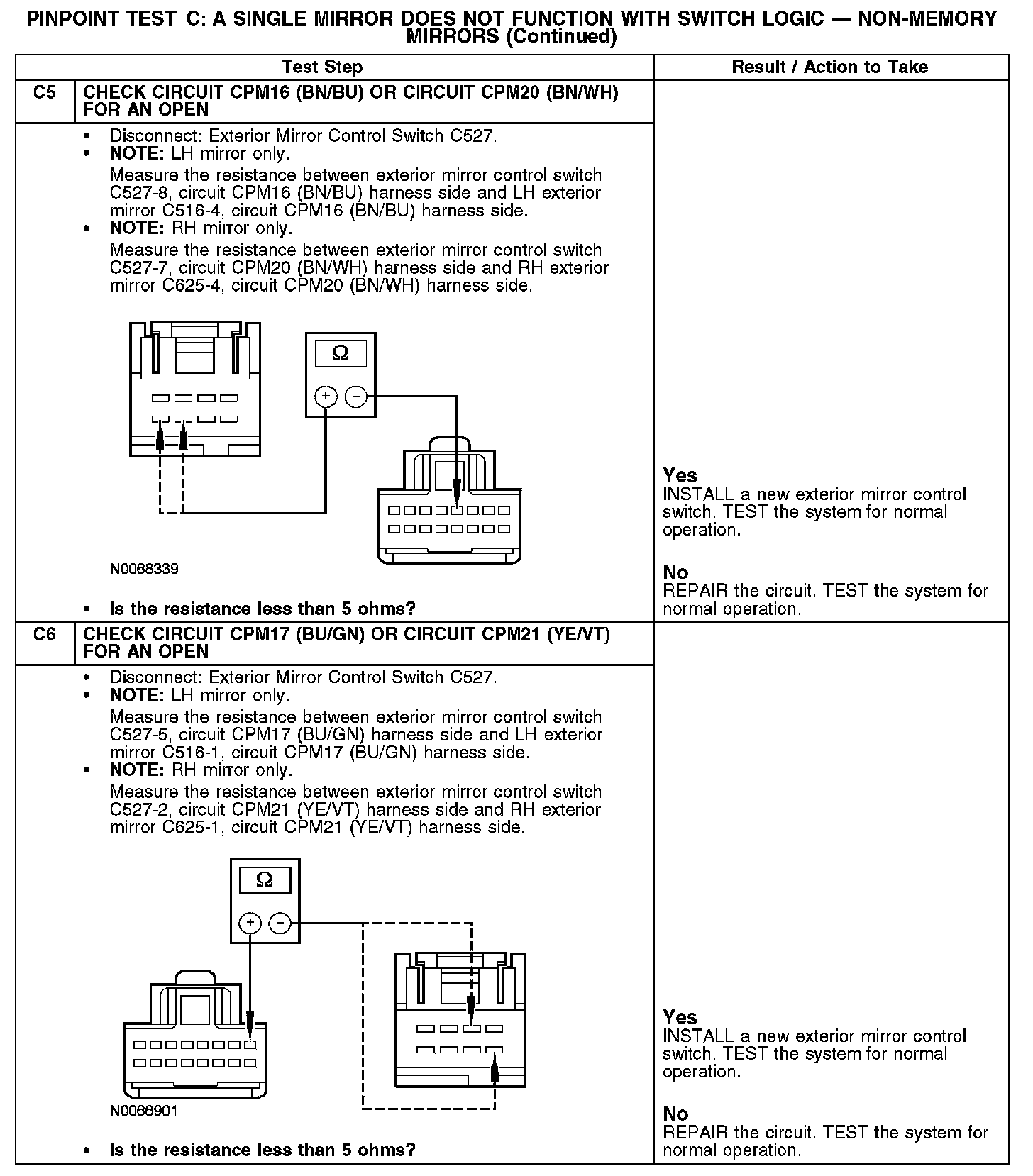

C5-C6:
