Test A: The Mirrors Are Inoperative - Non-Memory Mirrors

PINPOINT TEST A: THE MIRRORS ARE INOPERATIVE - NON-MEMORY MIRRORS

Normal Operation
The exterior mirror control switch receives power through circuit SBP12 (GN/RD) and ground through circuit GD133 (BK). The exterior mirror control switch uses circuit CPM23 (GY) as the common circuit for both exterior mirror up/down and right/left movement.

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Exterior mirror control switch

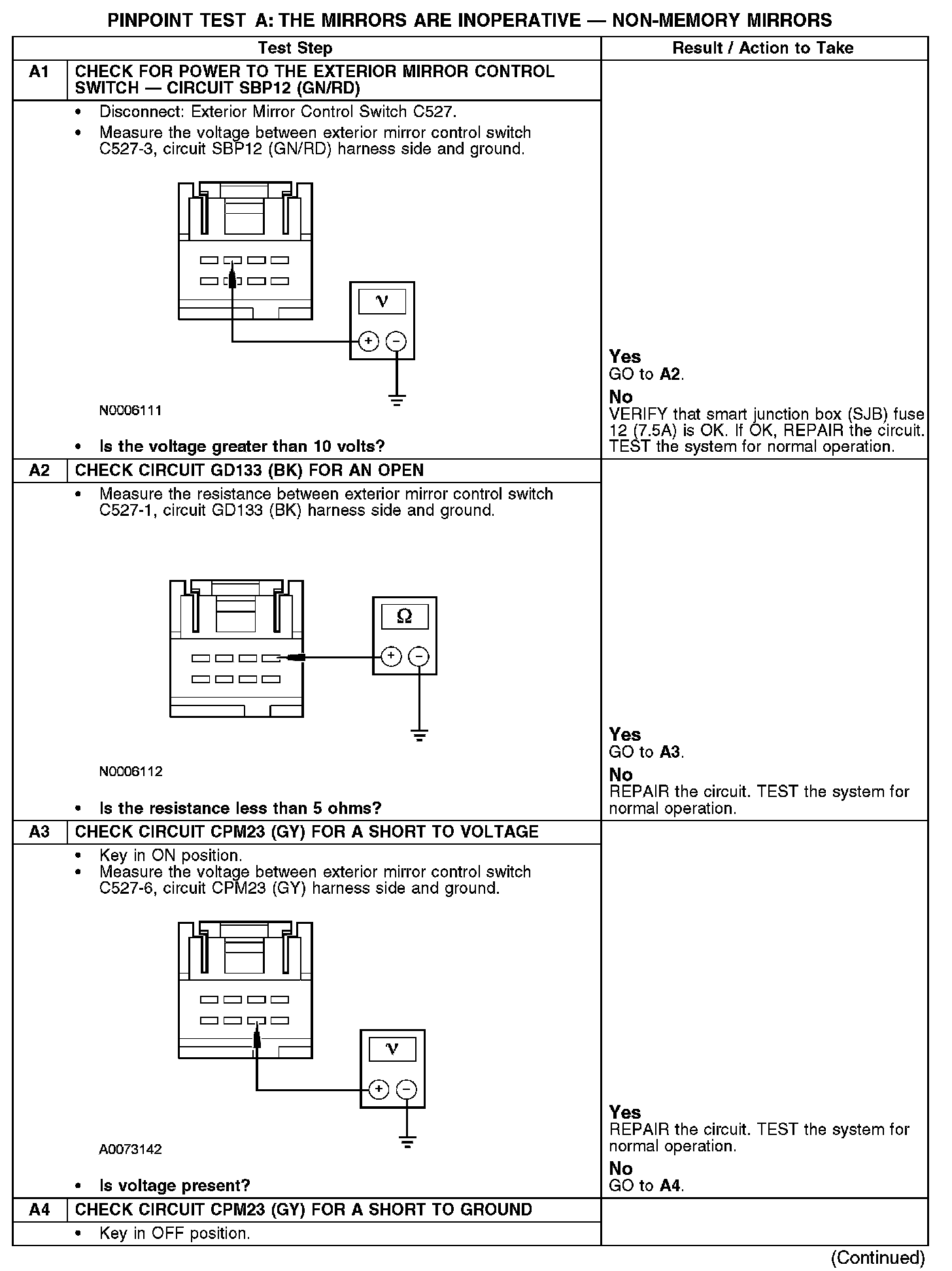

A1-A4:

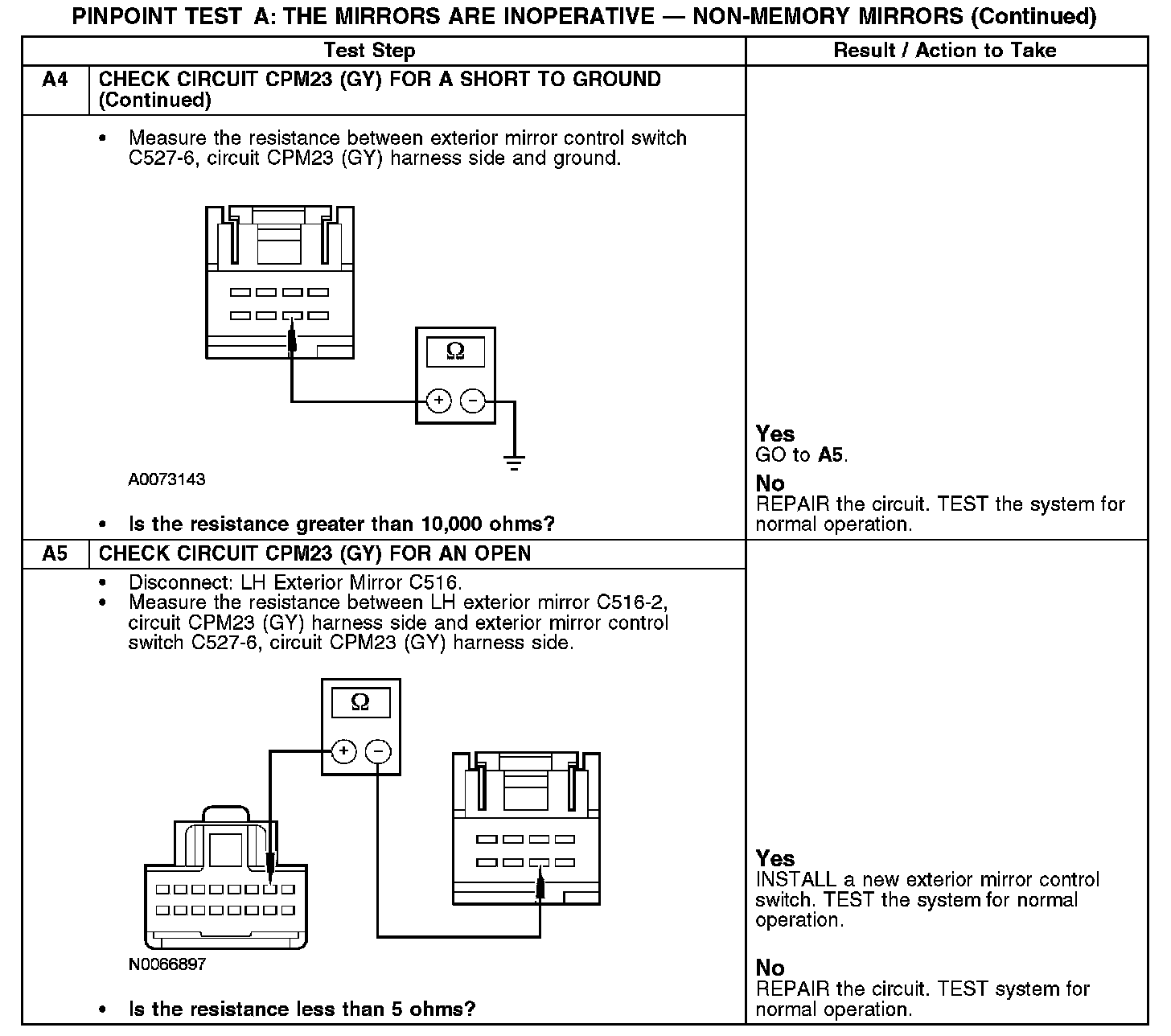

A4-A5:
