Exterior Mirror

EXTERIOR MIRROR

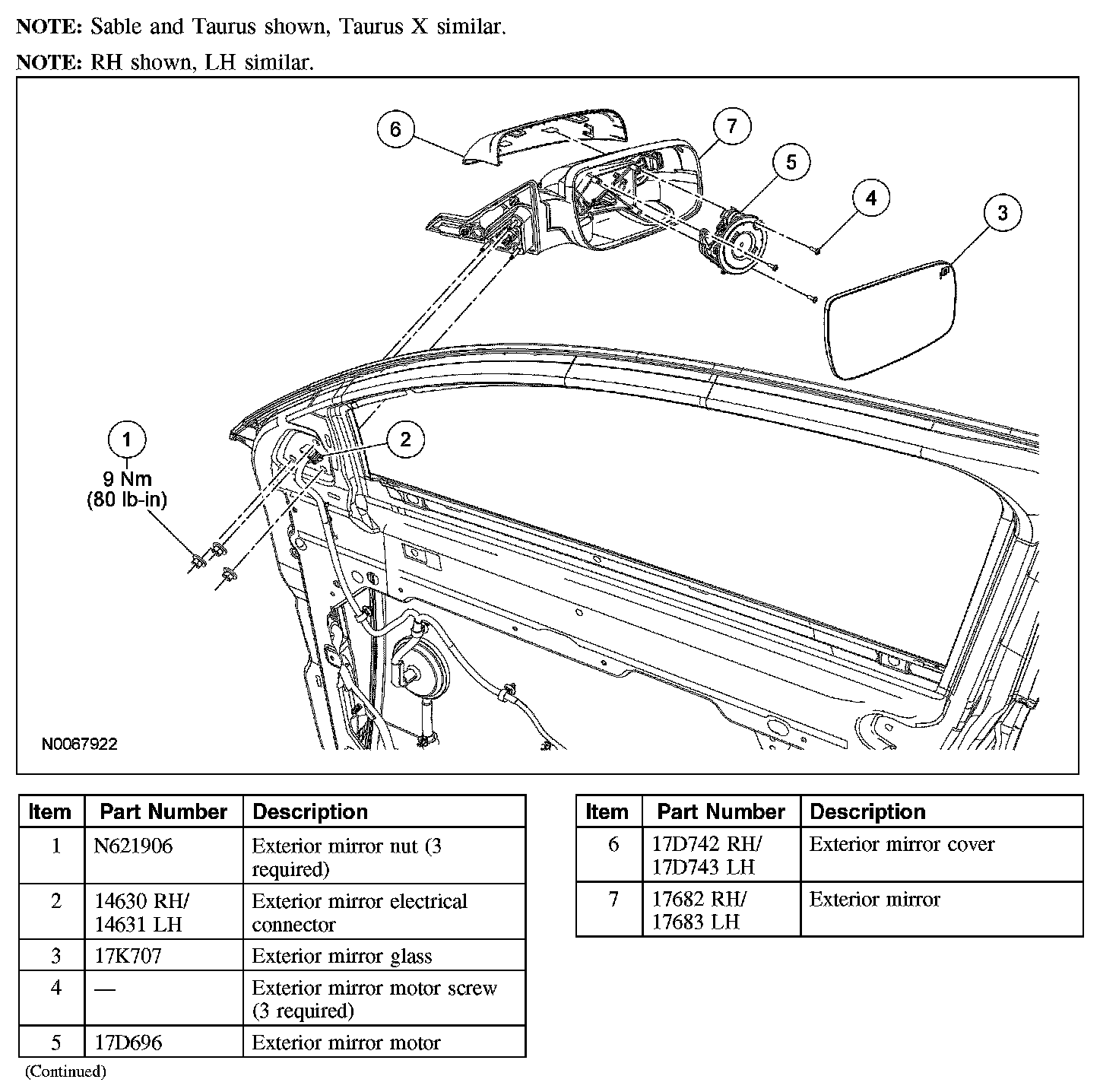

Exploded View







Removal and Installation

NOTE:
- Do not remove the exterior mirror assembly when repairing an individual part. Individual components can be installed without removing the exterior mirror.
- Sable and Taurus shown, Taurus X similar.

1. Remove the sail panel.

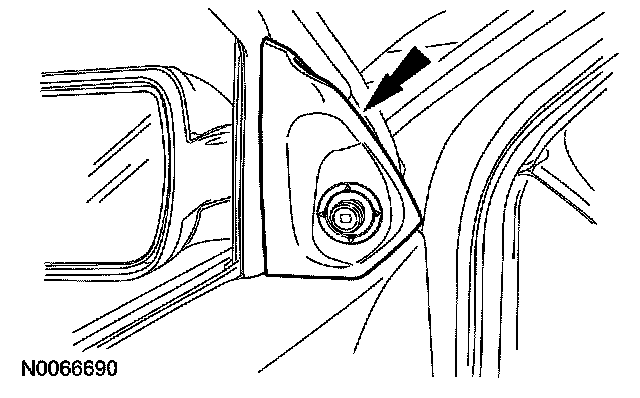

- Pull outward on the sail panel to release the retaining clips.
- Disconnect the electrical connector.







2. Disconnect the exterior mirror electrical connector.

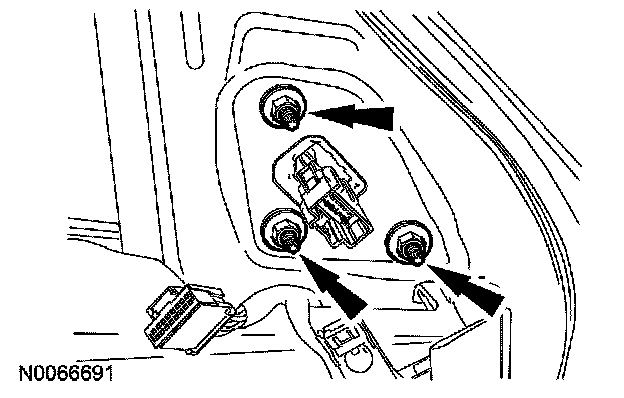

3. Remove the 3 exterior mirror nuts.
- To install, tighten to 9 Nm (80 lb-in).







4. Remove the exterior mirror.
5. To install, reverse the removal procedure.
