Test K: An Individual Button/Feature Is Inoperative From The Remote Keyless Entry (RKE) Transmitter

PINPOINT TEST K: AN INDIVIDUAL BUTTON/FEATURE IS INOPERATIVE FROM THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

Normal Operation
When any remote integrated keyhead transmitter (IKT) button is pressed, the SJB receives and processes the command to provide the appropriate output.

This pinpoint test is intended to diagnose the following:
- Door locks
- Horn system
- Liftgate or luggage compartment lid release
- Turn signal system
- IKT

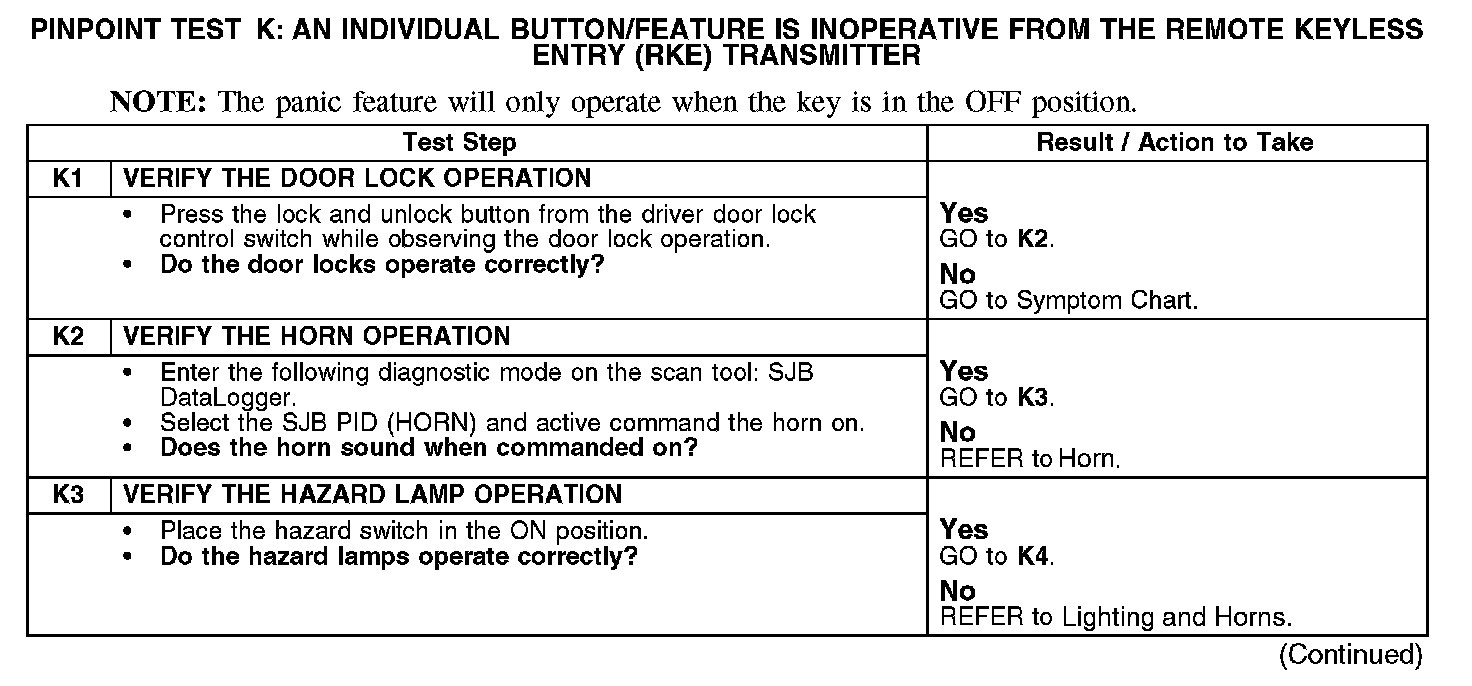

K1-K3:

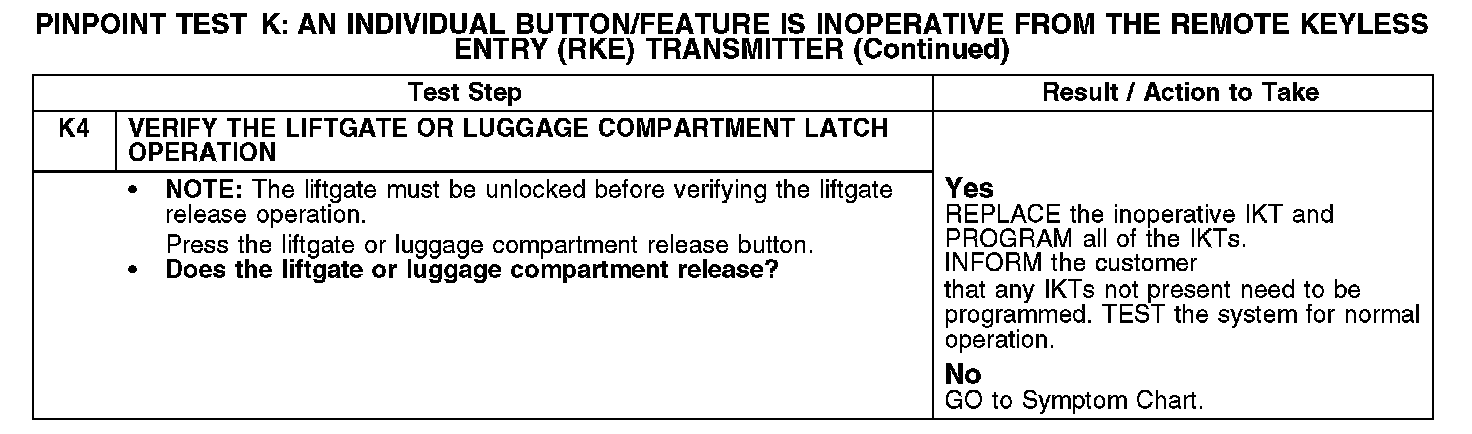

K4:
