Power Door Lock Actuator: Service and Repair

DOOR LOCK ACTUATOR

Exploded View

Part 1:

Part 2:

Removal and Installation
1. Remove the door latch.

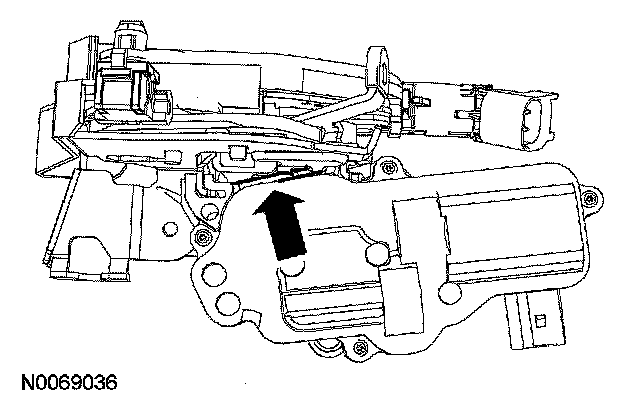

2. Release the tab on the door lock actuator and slide it off the door latch.







3. To install, reverse the removal procedure.
