Instrument Panel Center Finish Panel

INSTRUMENT PANEL CENTER FINISH PANEL

Exploded View

Taurus, Sable (Part 1):

Taurus, Sable (Part 2):

Taurus X (Part 1):

Taurus X (Part 2):

Removal and Installation
1. Remove the floor shifter trim ring.
2. Remove the floor console center finish panel.

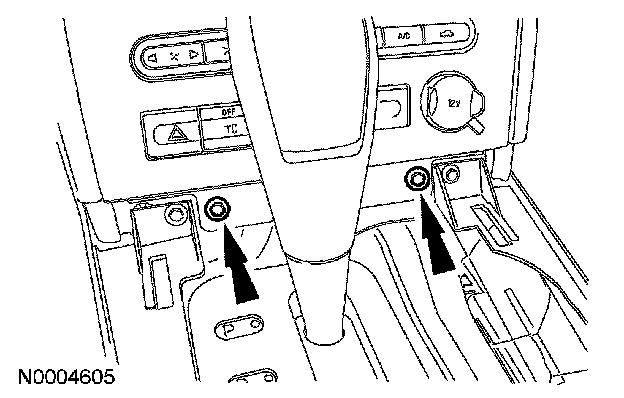

3. Remove the 2 instrument panel center finish panel screws.







4. Remove the instrument panel center finish panel.
- Disconnect the electrical connectors.

5. To install, reverse the removal procedure.
