Power Liftgate Rod

POWER LIFTGATE ROD

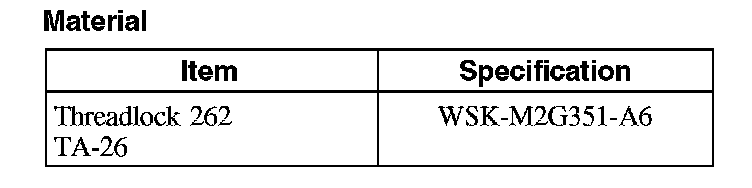

Material

Material:

Removal and Installation
1. Remove the LH quarter trim panel access cover.

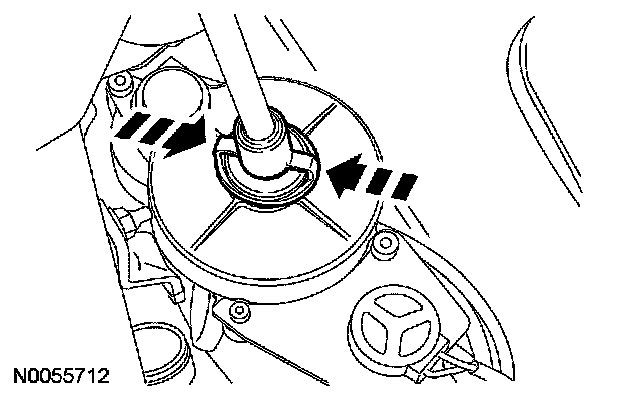

2. Unclip the power liftgate rod from the motor assembly.
- Squeeze the clip as shown to release and position the rod assembly upward.







3. Remove the cover and the power liftgate rod-to-liftgate retaining nut.
- To install, apply Threadlock 262 to the threads of the fastener and tighten to 11 Nm (8 lb-ft).

4. Remove the 3 power liftgate rod mounting bracket nuts.
- To install, tighten to 11 Nm (8 lb-ft).

5. To install, reverse the removal procedure.
