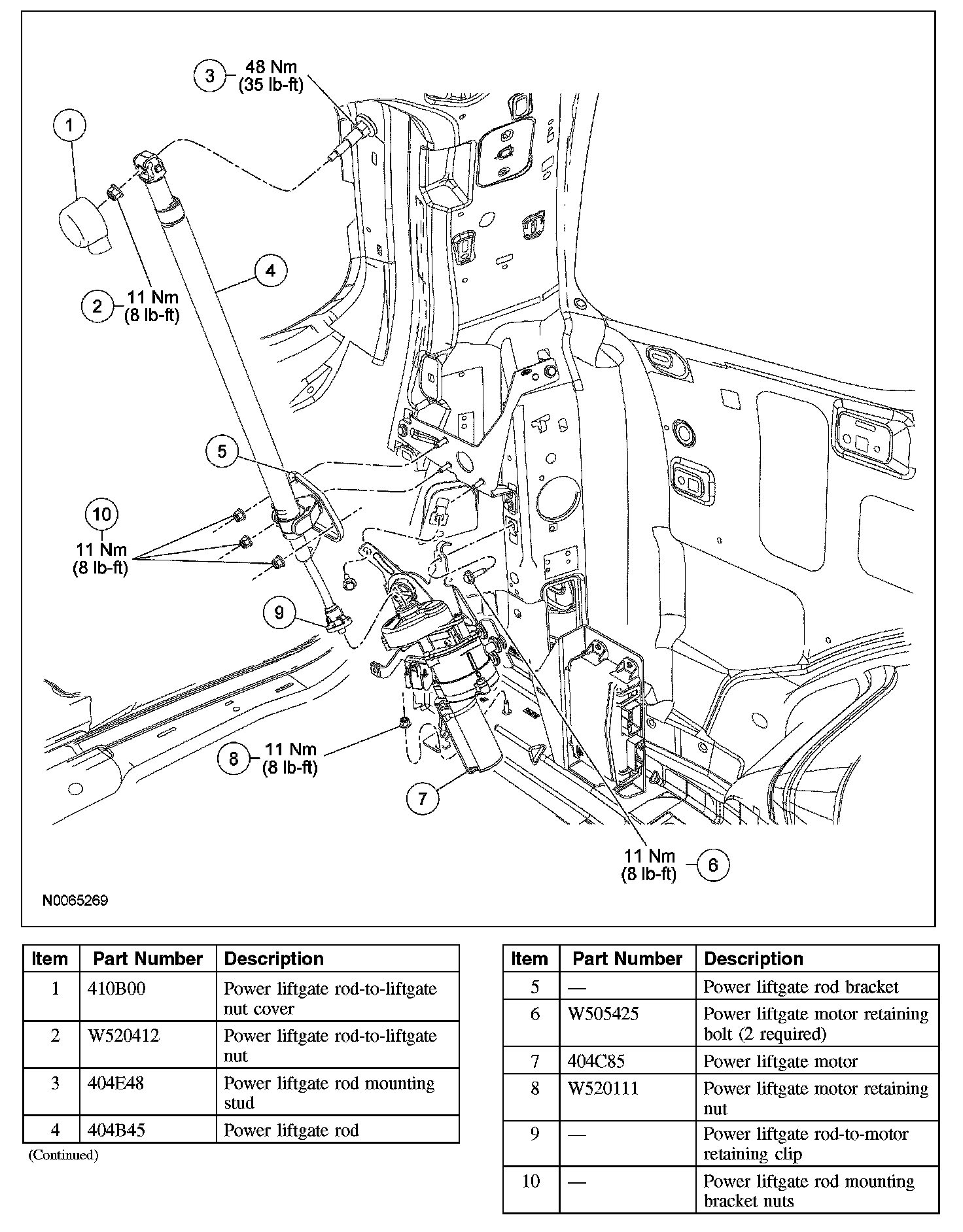

Power Liftgate Motor

POWER LIFTGATE MOTOR







Removal and Installation
1. Remove the LH rear quarter trim panel.
2. Disconnect the power liftgate motor electrical connectors.
3. Remove the power liftgate motor retaining bolts and nut.
- To install, tighten to 11 Nm (8 lb-ft).

4. Remove the power liftgate motor.
5. To install, reverse the removal procedure.
