Test I: Power Liftgate (PLG) DTC B117C - Latch Centering Switch Invalid

PINPOINT TEST I: POWER LIFTGATE (PLG) DTC B117C - LATCH CENTERING SWITCH INVALID

Normal Operation
The power liftgate (PLG) module monitors the sector gear open switch, circuit CPR67 (VT) and sector gear close switch, CPR68 (YE) to determine the sector gear position.

- DTC B117C Latch Centering Switch Invalid - If invalid switch states at the start of self-test or no switch states transition at releasing/cinching, the PLG module will set this DTC.

This pinpoint test is intended to diagnose the following:
- PLG latch
- PLG module
- Wiring, terminals or connectors

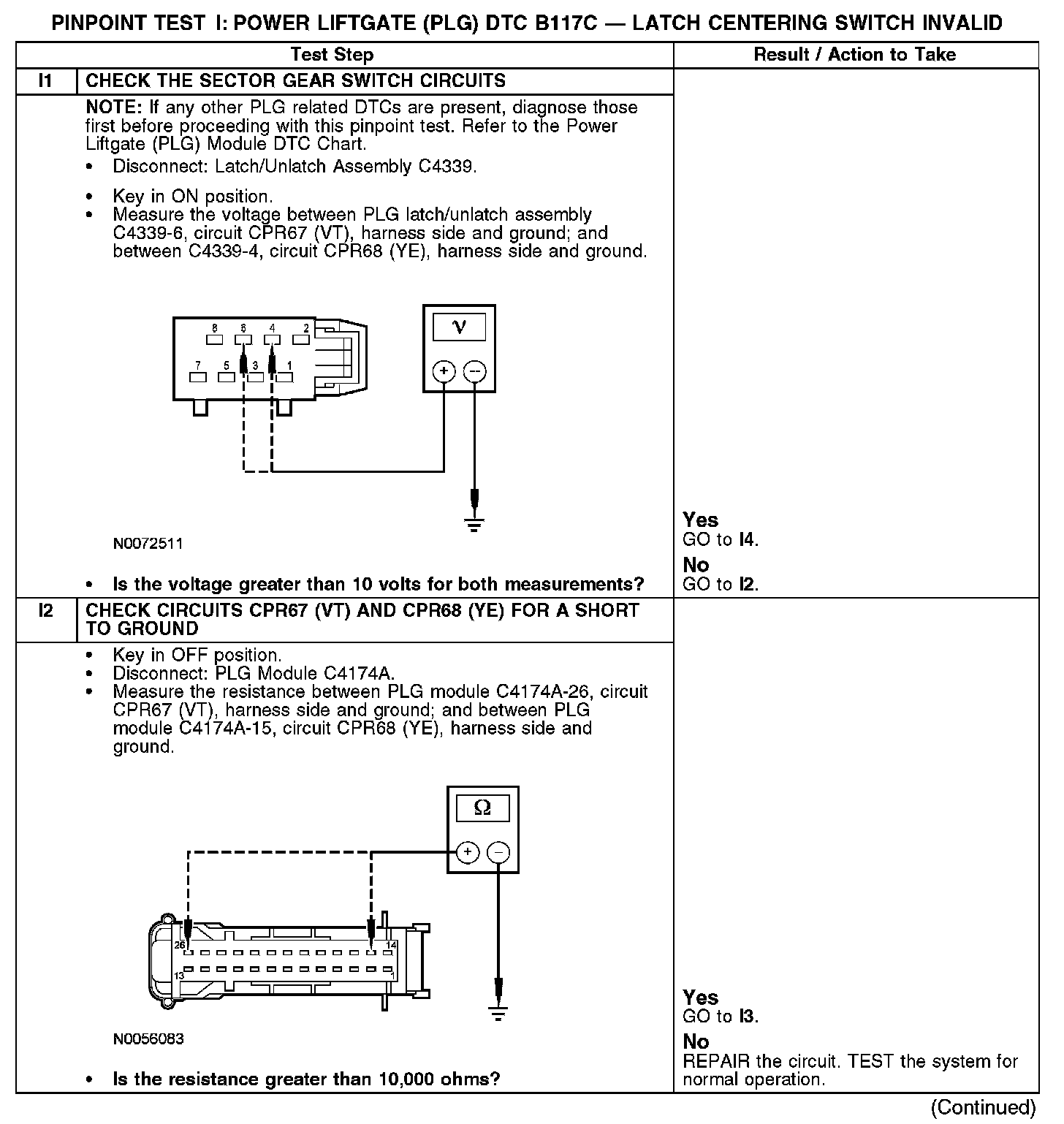

I1-I2:

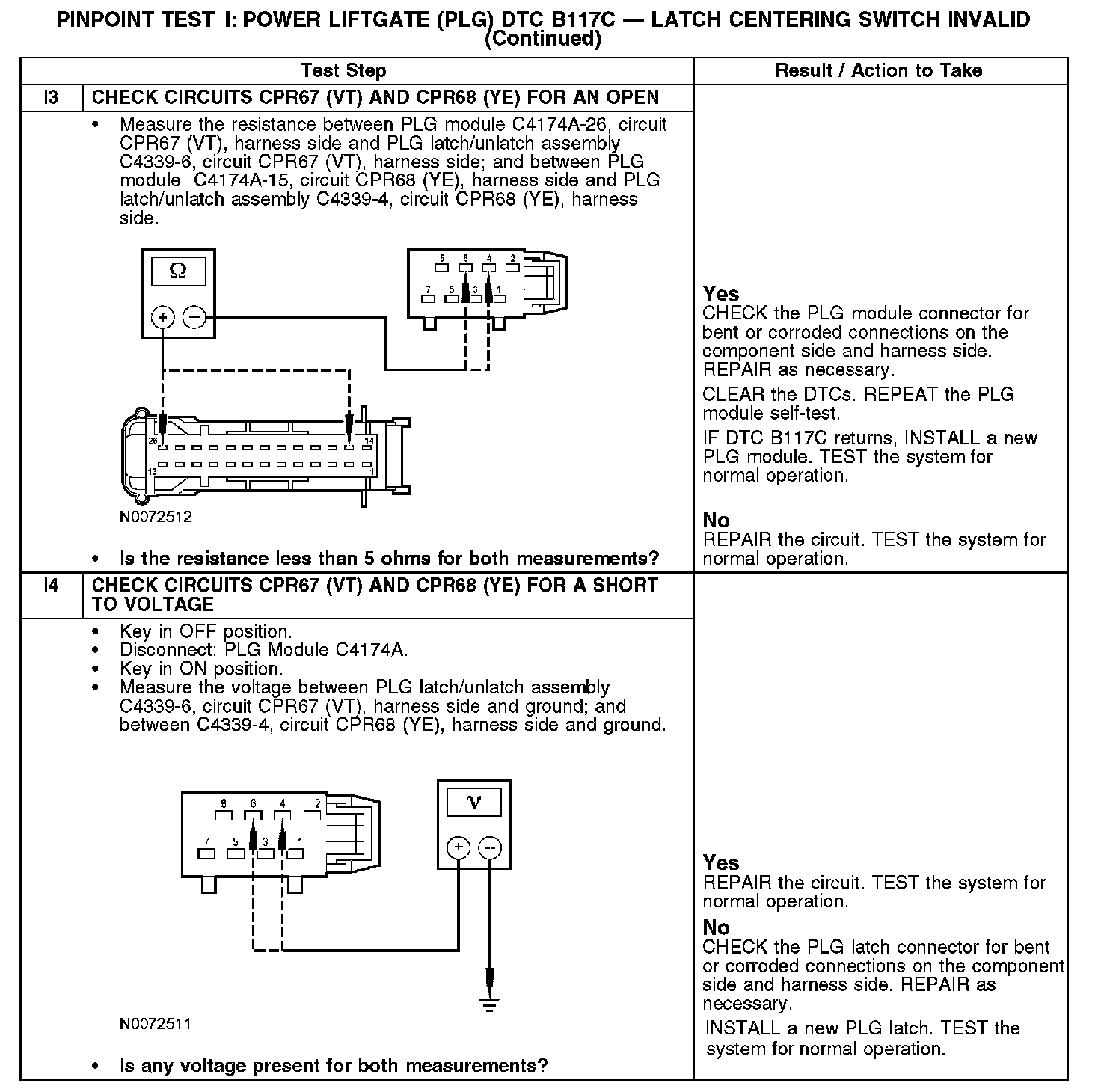

I3-I4:
