Test F: The Power Liftgate Does Not Operate Correctly - Pinch Strip Does Not Stop/Reverse The Liftgate

PINPOINT TEST F: THE POWER LIFTGATE DOES NOT OPERATE CORRECTLY - PINCH STRIP DOES NOT STOP/REVERSE THE LIFTGATE

Normal Operation
When the power liftgate (PLG) moves in the close direction, the PLG module monitors the pinch strips and position sensor for obstacle detection. The PLG module uses a 5-volt reference signal on circuit CPR52 (YE/VT) and a return signal on circuit RPR52 (VT/GY) for the left pinch strip. The PLG module uses a 5-volt reference signal on circuit CPR51 (YE/OG) and a return signal on circuit RPR52 (VT/GY) for the right pinch strip. The right and left pinch strip return signal circuits are spliced together.

- DTC B2699 Left Pinch Strip Open or Short to Battery - If no pinch strip is connected or connections are loose, the PLG module will set this DTC.
- DTC B2700 Right Pinch Strip Open or Short to Battery - If no pinch strip is connected or connections are loose, the PLG module will set this DTC.

This pinpoint test is intended to diagnose the following:
- PLG module DTC B2699 left pinch strip open or short to battery
- PLG module DTC B2700 right pinch strip open or short to battery
- Wiring, terminals or connectors
- Pinch strip
- PLG module

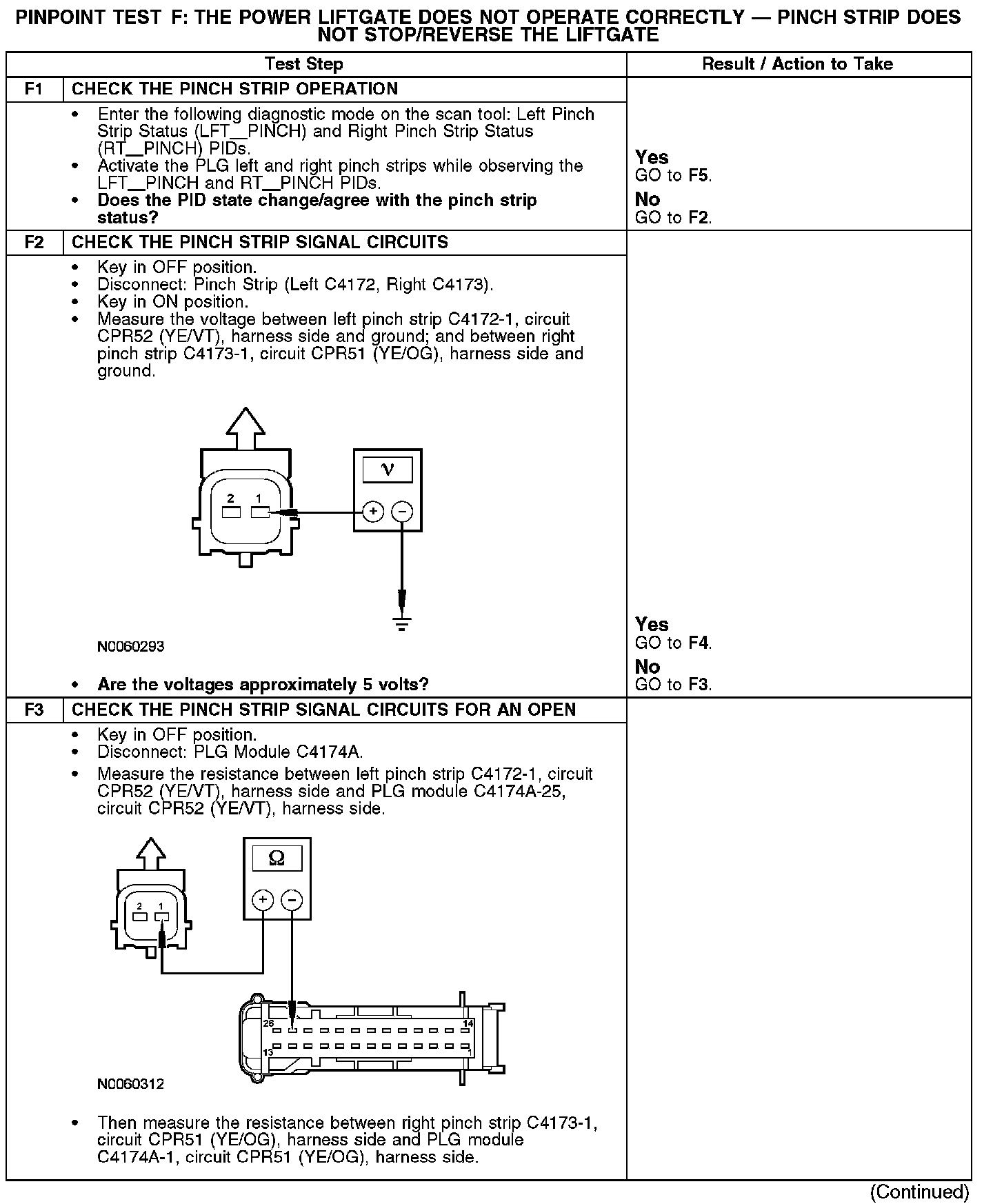

F1-F3:

F3-F5:
