Wiper Pivot Arm - Rear

WIPER PIVOT ARM - REAR

Exploded View

Front Wipers:

Rear Wiper:

Washer Pump And Reservoir:

Removal and Installation

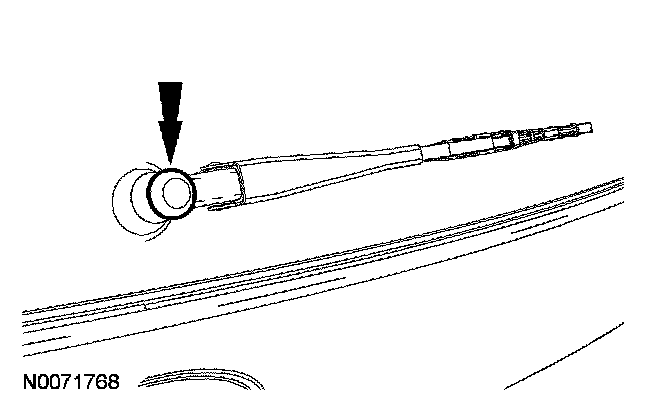

1. Remove the wiper pivot arm nut cover.

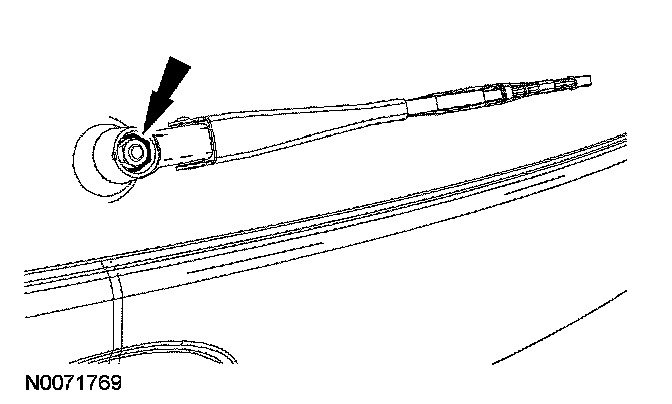

2. Remove the nut and the wiper pivot arm.
- To install, tighten to 15 Nm (11 lb-ft).







3. To install, reverse the removal procedure.
