Wiper Pivot Arm - Front

WIPER PIVOT ARM - FRONT

Exploded View

Front Wipers:

Rear Wiper:

Washer Pump And Reservoir:

Removal and Installation

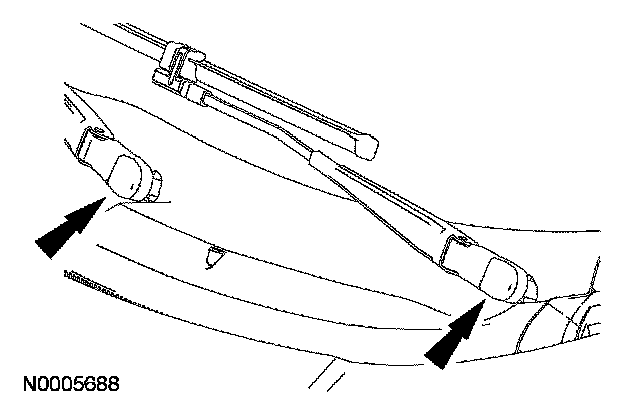

1. Remove the wiper pivot arm nut cover.

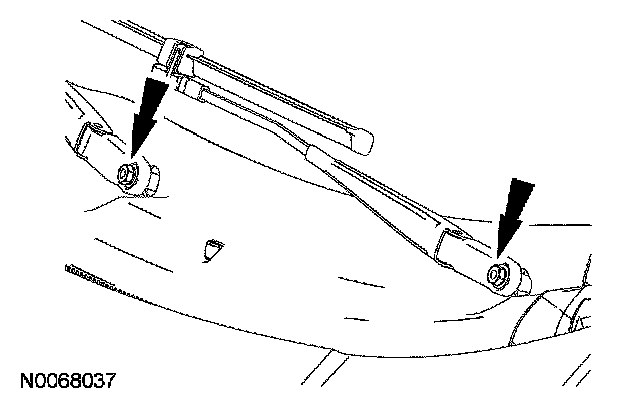

2. Remove the nut and the wiper pivot arm.
- To install, tighten to 25 Nm (18 lb-ft).







3. To install, reverse the removal procedure.
- Adjust the wiper pivot arms.
