Wiper Mounting Arm and Pivot Shaft

WIPER MOUNTING ARM AND PIVOT SHAFT

Exploded View

Front Wipers:

Rear Wiper:

Washer Pump And Reservoir:

Removal and Installation
1. Remove the wiper pivot arms and cowl panel grille.

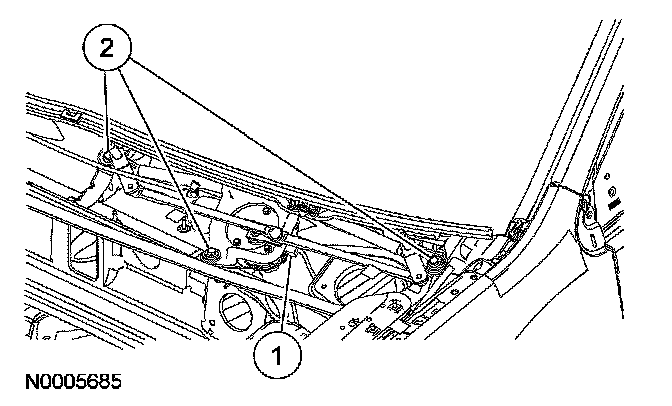

2. Remove the wiper mounting arm and wiper pivot shaft assembly.
1 Disconnect the electrical connector.
2 Remove the 3 bolts.
- To install, tighten to 8 Nm (71 lb-in).







3. To install, reverse the removal procedure.
- Adjust the wiper pivot arms.
