Home >> Mercury >> 2008 >> Sable AWD V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

Symptom Chart - Four Wheel Drive (4WD) Control Module

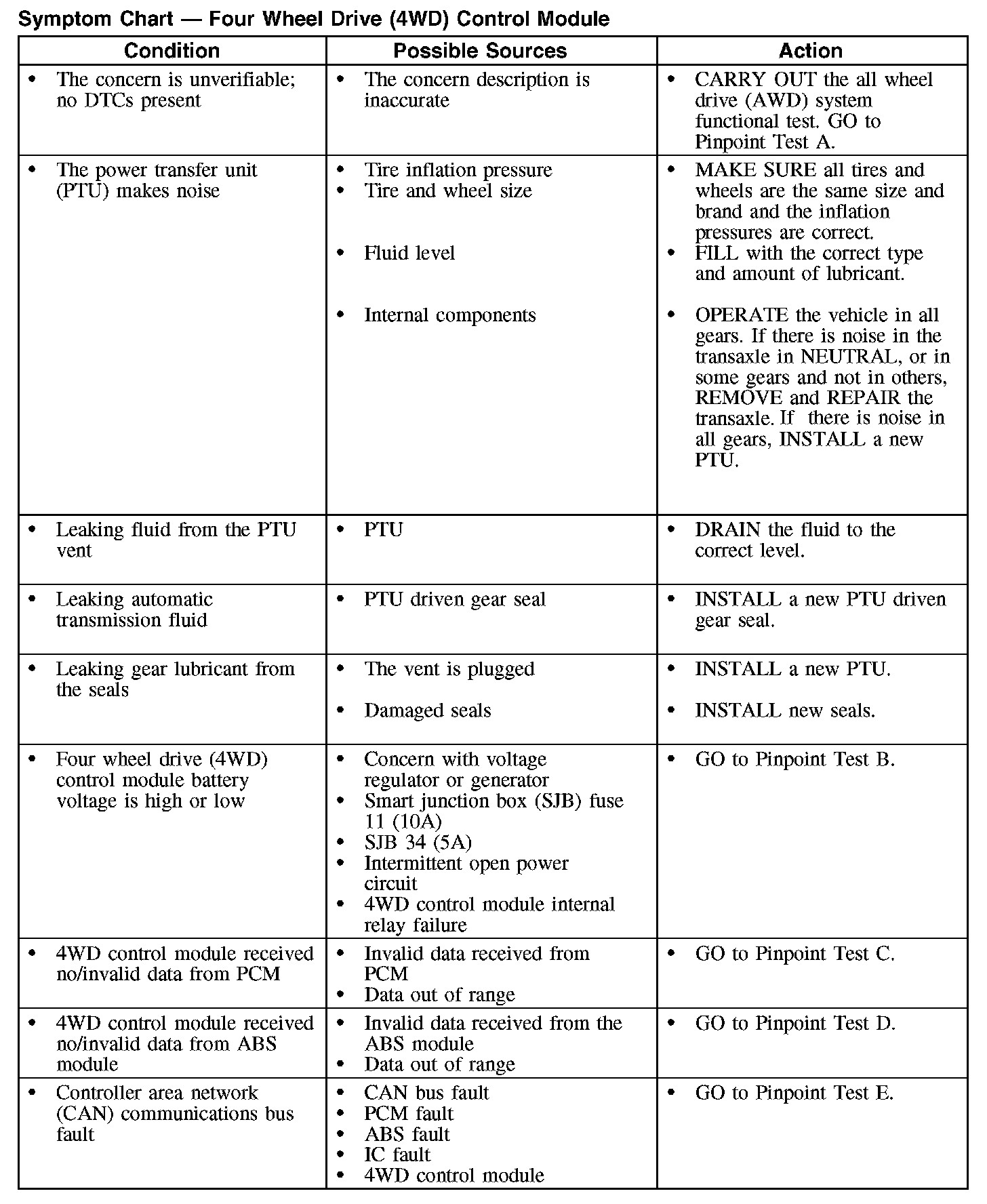

Symptom Chart - Four Wheel Drive (4WD) Control Module (Part 1):

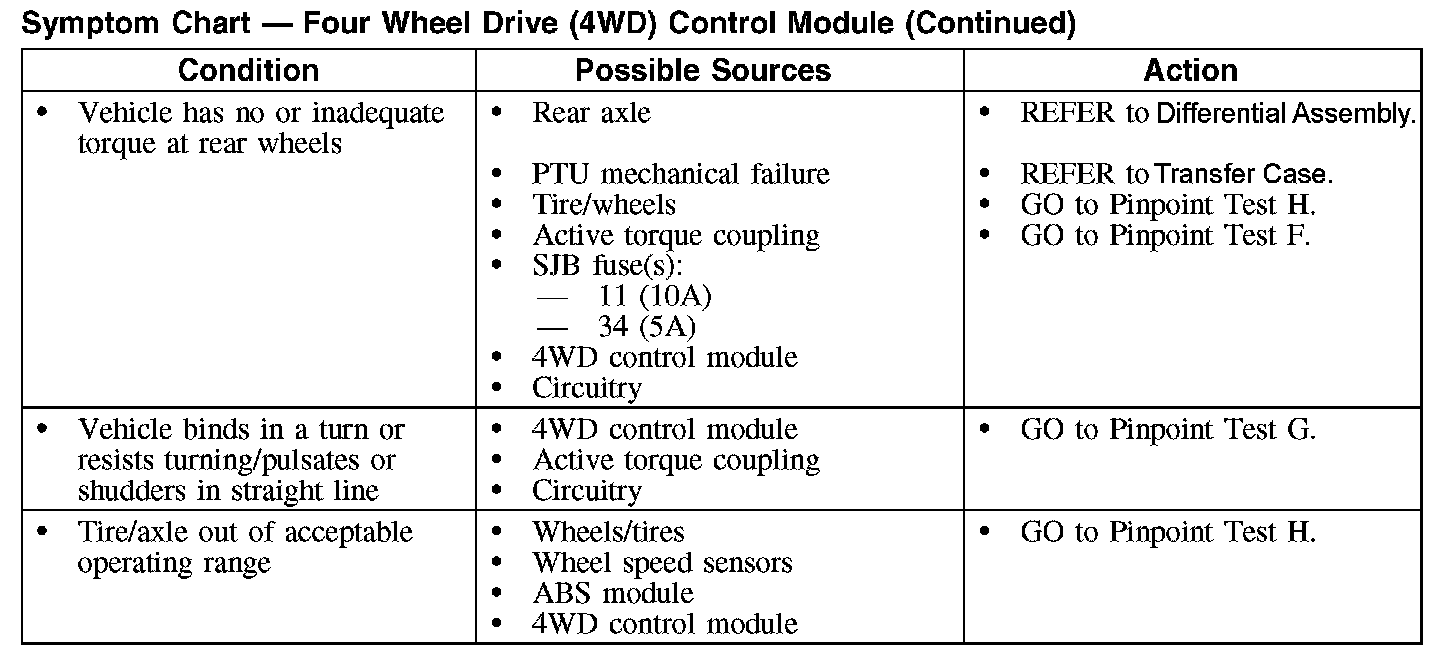

Symptom Chart - Four Wheel Drive (4WD) Control Module (Part 2):
