Stub Shaft Seal

Stub Shaft Seal








Removal

NOTE: The rear drive unit (RDU) does not have stub shaft pilot bearings. It has stub shaft seals only.

1. Remove the halfshaft assembly.

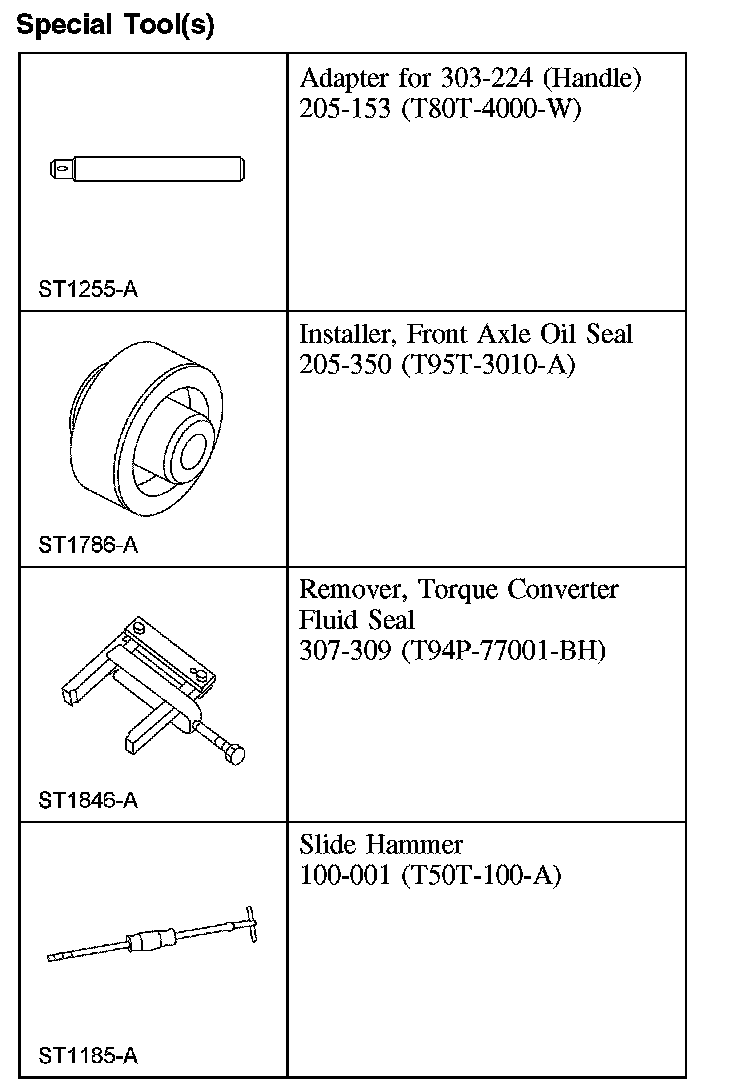

2. Using the special tools, remove the stub shaft seal.





Installation

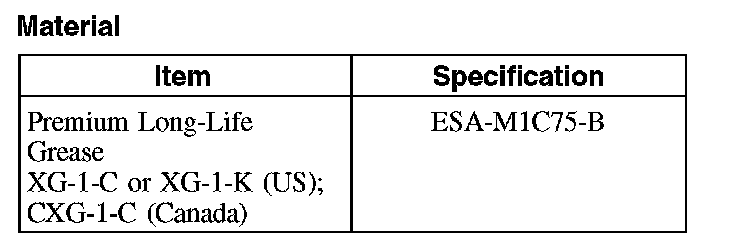

1. NOTE: Lubricate the new stub shaft seal with grease.

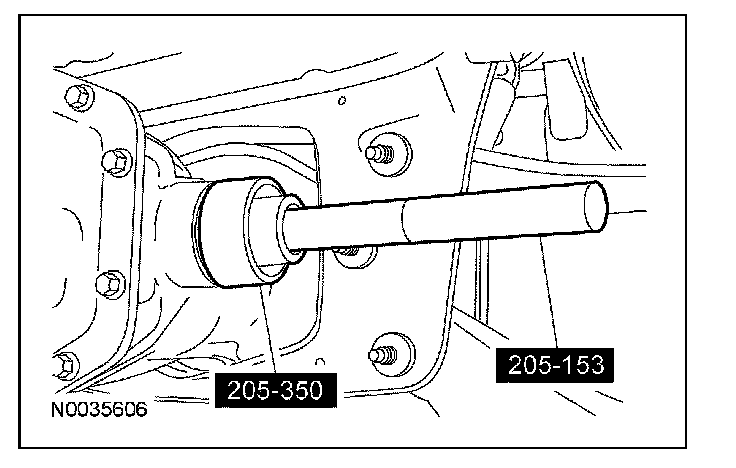

Using the special tools, install the stub shaft pilot bearing housing seal.





2. Install the halfshaft assembly.
