Automatic Transmission/Transaxle: Adjustments

Selector Lever Cable Adjustment

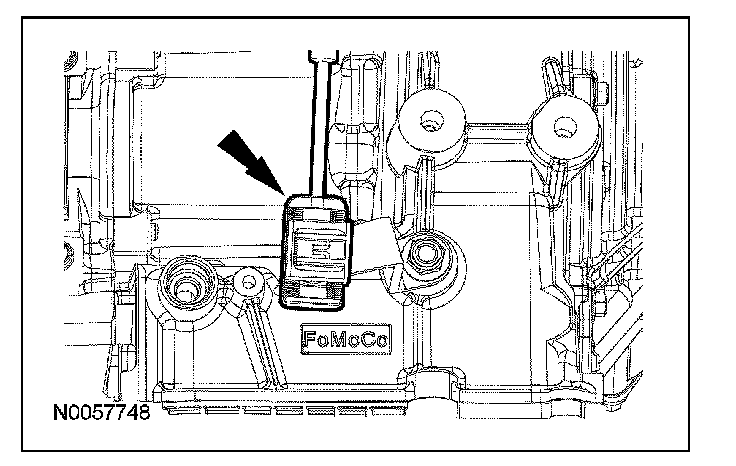

1. Disconnect the selector lever cable end from the manual lever.

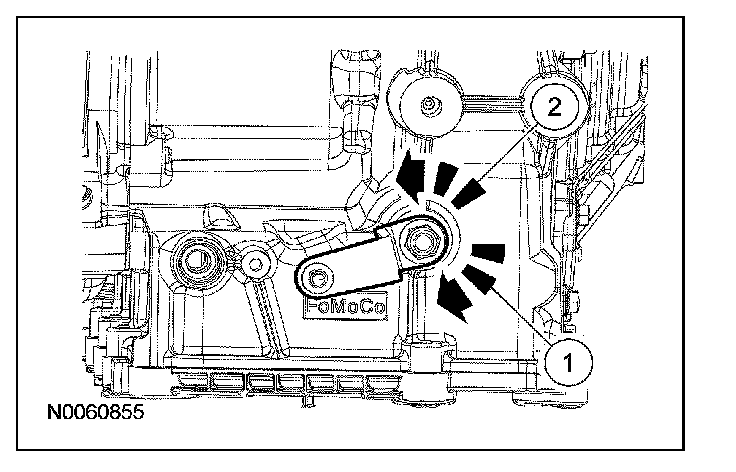

2. Place the manual lever in DRIVE.
1 Rotate the manual lever clockwise until it stops.
2 Rotate the manual lever counterclockwise one detent.

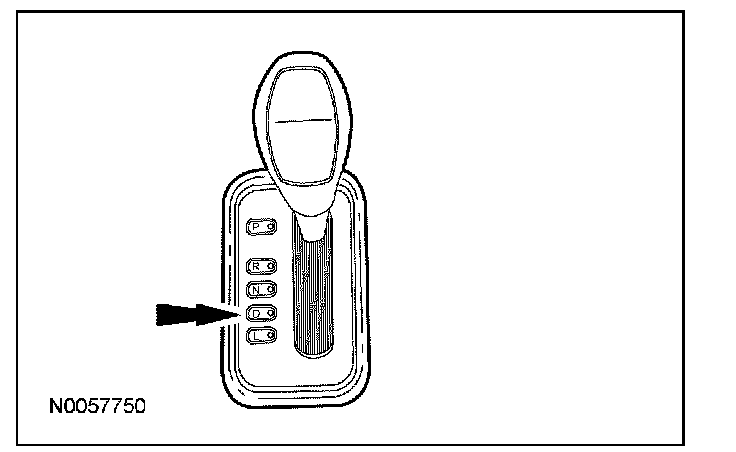

3. Place the selector lever in DRIVE.

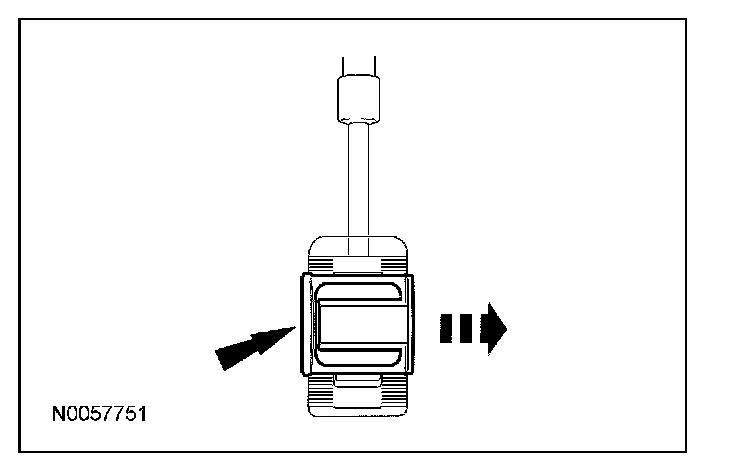

4. Unlock the adjuster by sliding the locking tab over.

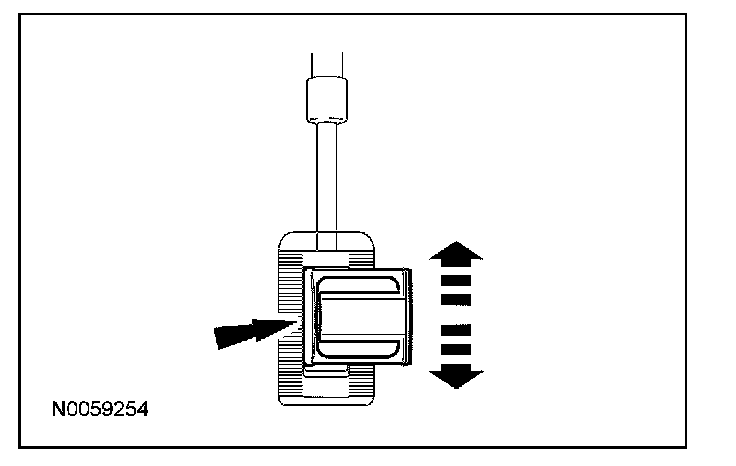

5. Slide the cable end forward or backward to align it with the manual lever.

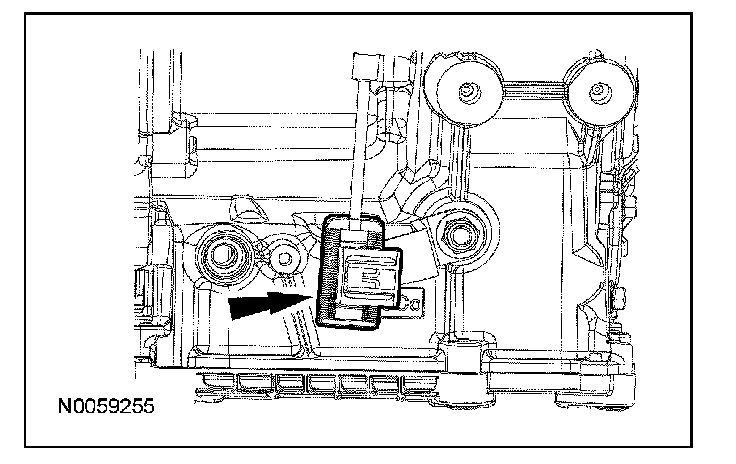

6. With the adjuster locking tab released, connect the selector lever cable end to the manual lever.

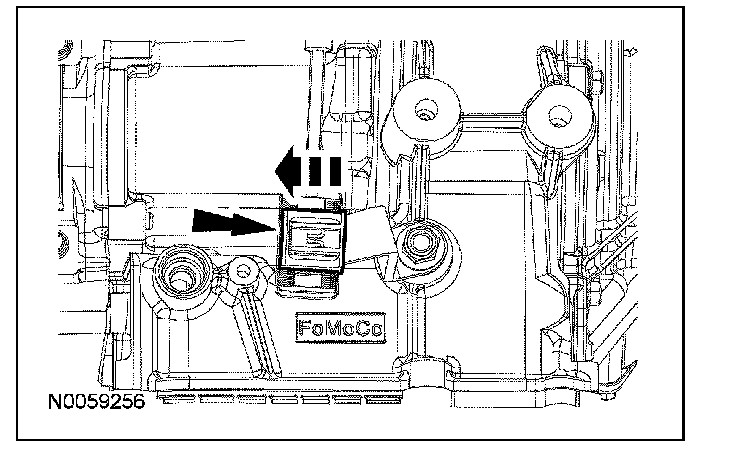

7. Slide the release tab back to lock the adjuster.





8. Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
