Power Steering Fluid Cooler: Service and Repair

Power Steering Fluid Cooler








Removal and Installation

CAUTION: When repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may occur.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the lower radiator air deflector screws, pin-type retainers and the deflector.
3. Release the clamps and disconnect the hoses from the power steering fluid cooler.

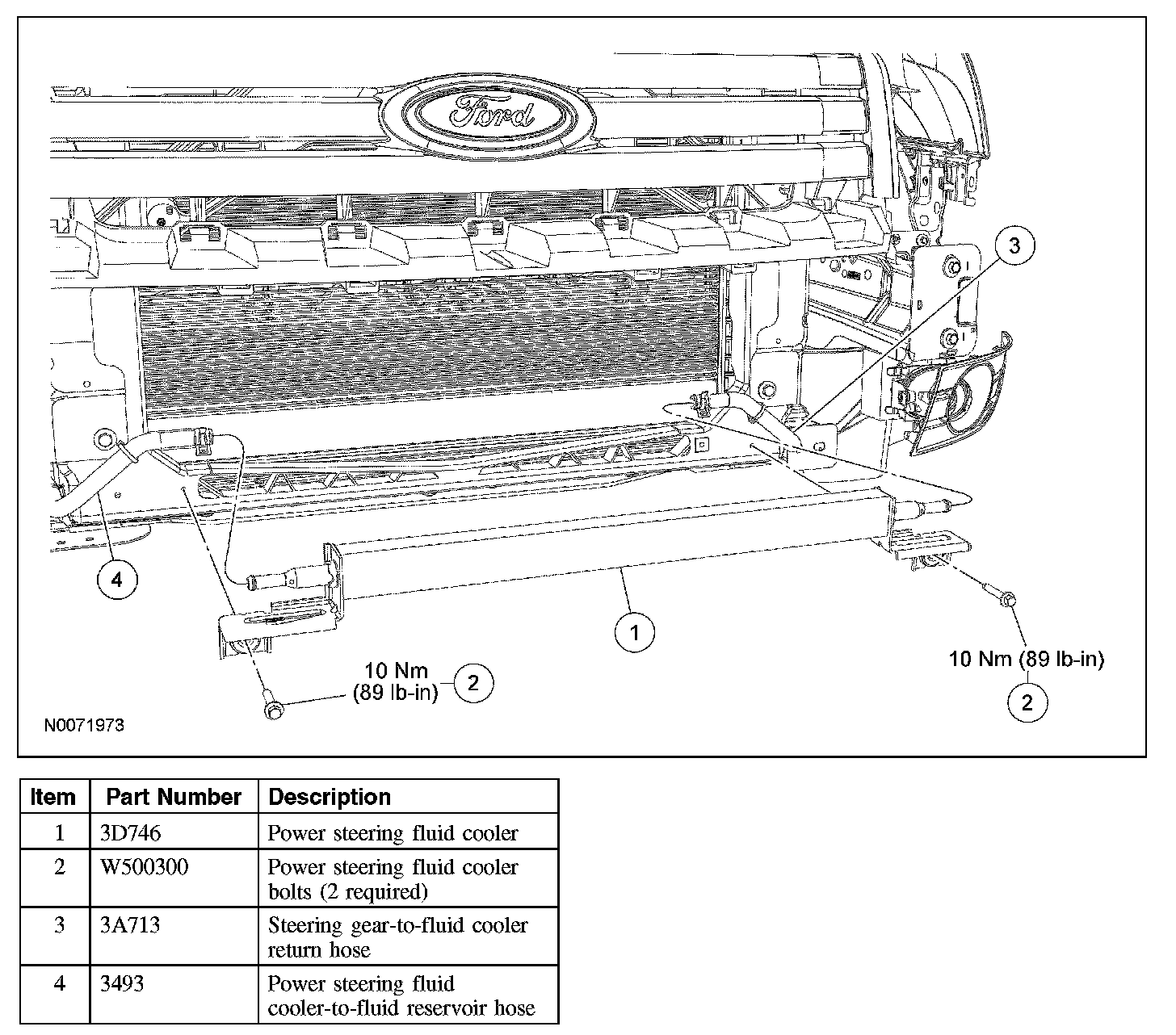

4. Remove the 2 bolts and the power steering fluid cooler.
^ To install, tighten to 10 Nm (89 lb-inch).
5. To install, reverse the removal procedure.

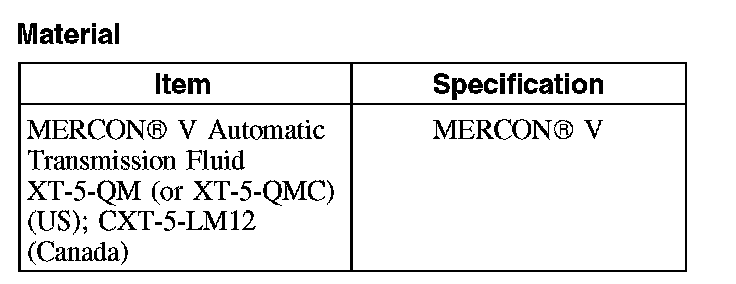

^ Fill the power steering system.
