Spring Lock Couplings

SPRING LOCK COUPLINGS

Special Tool(s)

Special Tool(s):

Disconnect

WARNING:
- Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
- Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

1. Release the fuel system pressure.

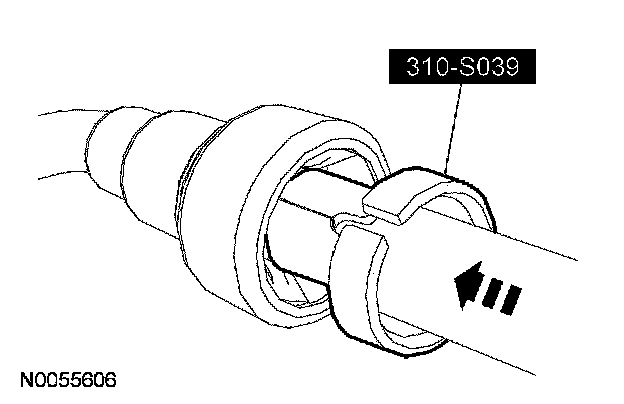

2. Install the special tool on the tube and push into the spring lock coupling to release.

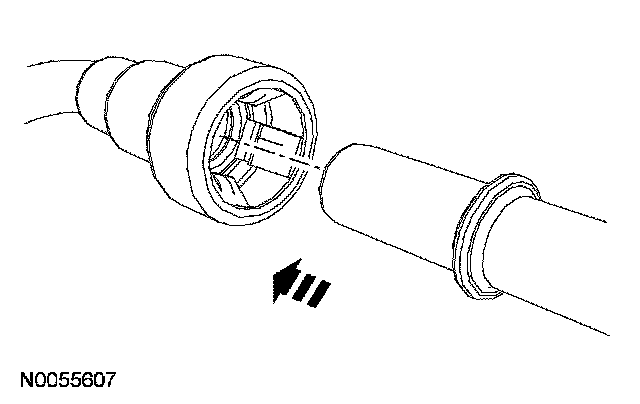

3. Separate the spring lock coupling from the tube.







Connect

1. NOTE: Lubricate the tube with clean engine oil.

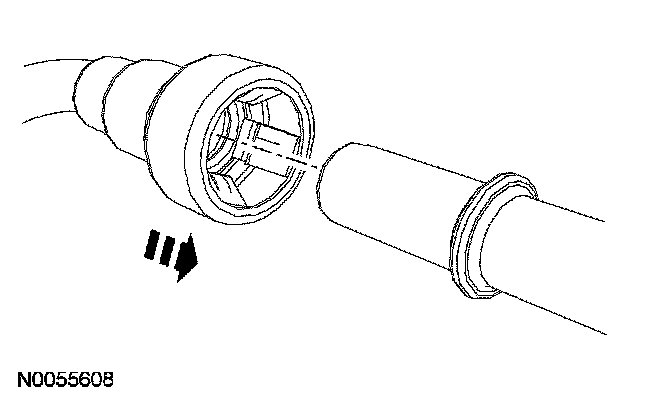

Align and push the spring lock coupling onto the tube until fully seated.







2. Pull on the coupling to make sure it is fully engaged.
