Rear

Wheel Studs








Removal

CAUTION: Suspension fasteners are critical parts because they affect performance of vital parts and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

1. Remove the rear brake disc.

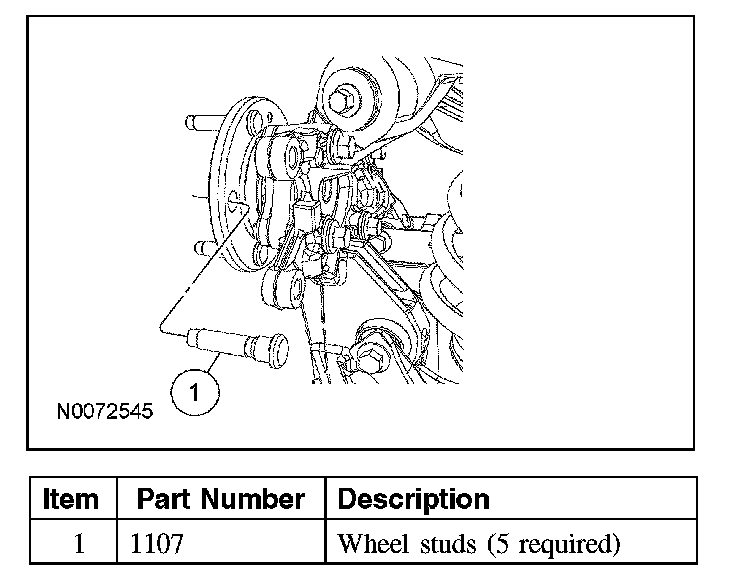

2. Using the special tool, remove and discard the wheel stud.





Installation

CAUTION: Do not use air tools to install the wheel stud. The serrations in the hub flange can be stripped.

1. Position the wheel stud in the axle flange, making sure that the serrations are aligned with those made by the original wheel stud.

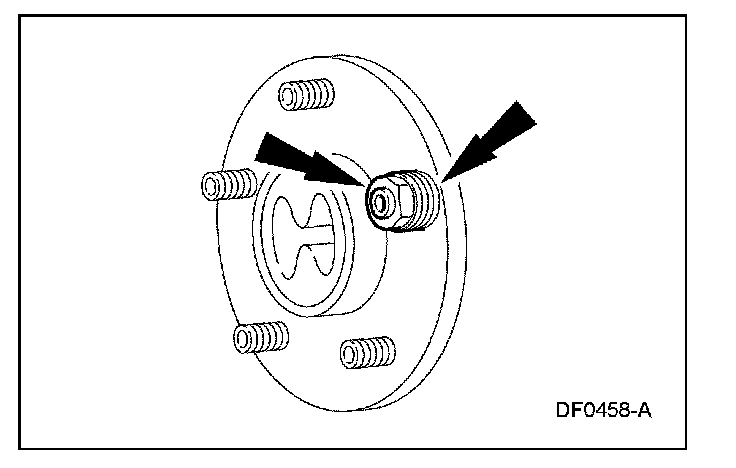

2. Position washers and a reversed wheel nut on the wheel stud and tighten the wheel nut until the stud seats on the back of the axle flange.





3. Remove the wheel nut and washers.
^ Discard the nut.
4. Install the rear brake disc.
