Front

Wheel Studs





Removal

1. CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. new part with the same part number must be installed if installation is necessary. Do not use a new part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

NOTE: Make sure the steering wheel is in the UNLOCKED position.

Remove the brake disc.

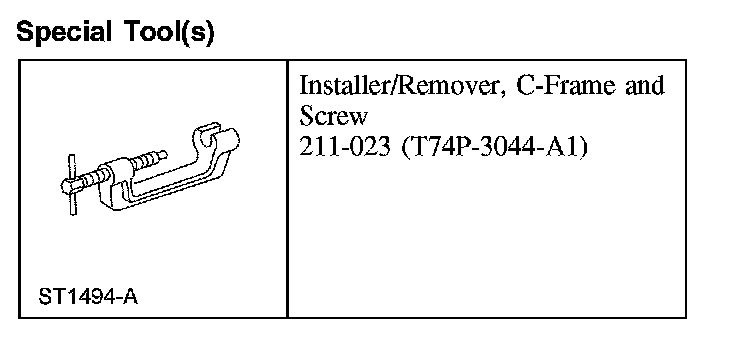

2. Using the special tool, remove the wheel stud.





Installation
1. Position the wheel stud in the flange, making sure the serrations on the stud line up with the serrations in the flange. Install the washers and a reversed wheel nut.

2. CAUTION: Do not use power tools to install the wheel stud or damage to the flange may occur.

Tighten the wheel nut until the stud is seated against the hub flange.





3. Remove the wheel nut and the washers. Discard the wheel nut.
4. Install the brake disc.
