Power Steering Pump Belt

Power Steering Pump Belt

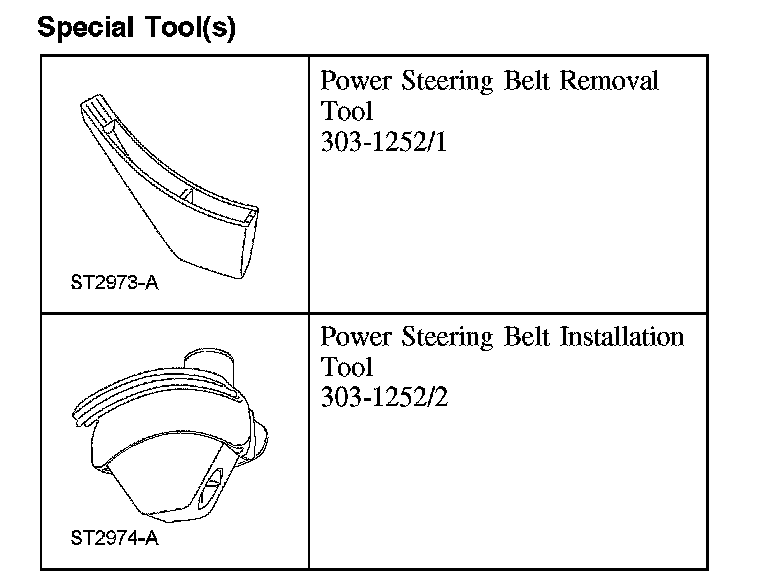

Special Tool(s)





Removal

CAUTION: Under no circumstances should the accessory drive belt, tensioner or pulleys be lubricated as potential damage to the belt material and tensioner damping mechanism will occur. Do not apply any fluids or belt dressing to the accessory drive belt or pulleys.

1. Working from the top of the vehicle, using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the generator pulley.
2. Remove the RF wheel and tire assembly.

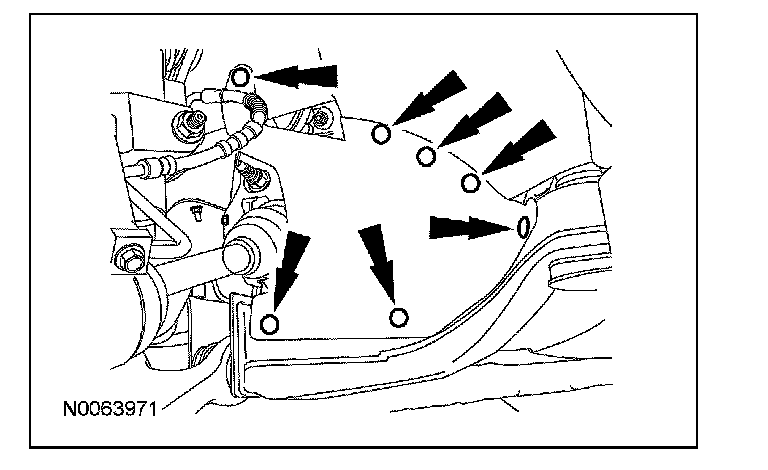

3. Remove the 7 pin-type retainers and the RH splash shield.





4. Position the accessory drive belt off the crankshaft pulley.

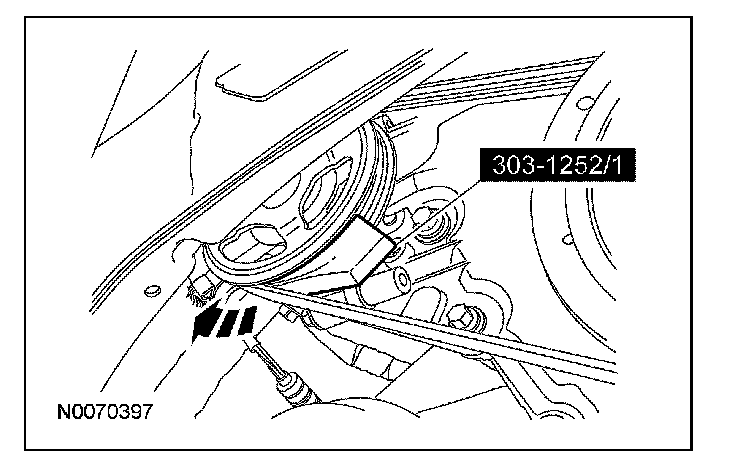

5. Install the special tool between the power steering drive belt and power steering pump pulley, turning the crankshaft bolt clockwise to remove the power steering drive belt.





Installation
1. Install the power steering drive belt on the crankshaft pulley.

2. NOTE: After installation, make sure the power steering drive belt is correctly seated on the crankshaft and power steering pump pulleys.

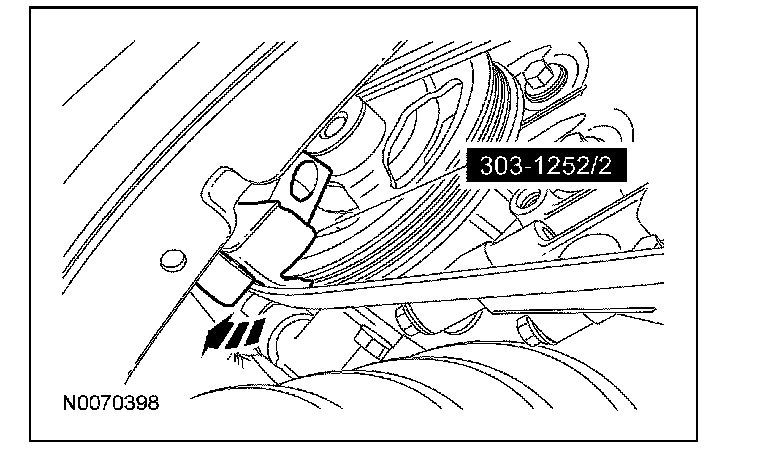

Position the power steering drive belt around the special tool and the power steering pump pulley. Make sure the belt is engaged with the power steering pump pulley and rotate the crankshaft clockwise to install the power steering drive belt.





3. Position the accessory drive belt on the crankshaft pulley.

4. NOTE: After installation, make sure the accessory drive belt is correctly seated on all pulleys.

Working from the top of the vehicle, using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner clockwise and install the accessory drive belt.
5. Install the RH splash shield and the 7 pin-type retainers.





6. Install the RF tire and wheel.
