Instrument Cluster Bulb



INSTRUMENT CLUSTER BULB

Removal and Installation
1. Remove the instrument cluster. Instrument Cluster (IC)

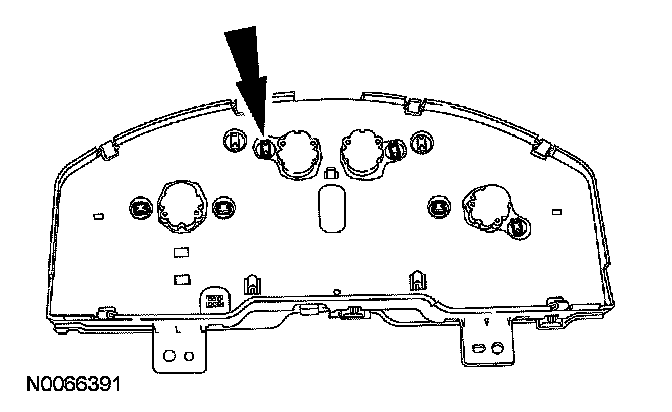

2. Rotate the bulb one quarter turn counterclockwise and lift it out from the instrument cluster.







3. To install, reverse the removal procedure.
