Clock: Service and Repair

CLOCK







Removal and Installation

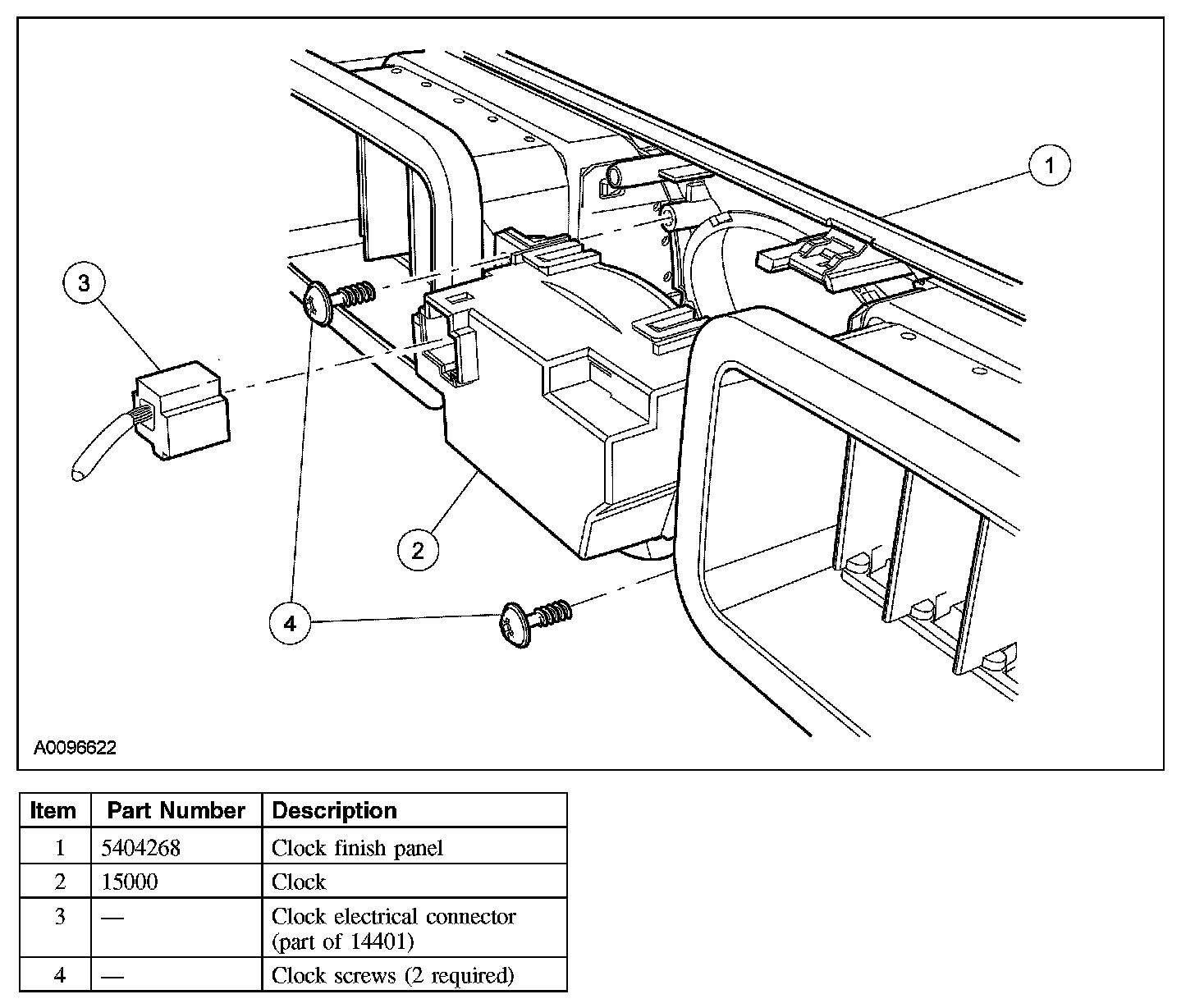

1. Remove the clock finish panel.
- Disconnect the electrical connector.

2. Remove the 2 screws and the clock.
3. To install, reverse the removal procedure.
