COMPRESSOR TO CONDENSER DISCHARGE LINE







Removal and Installation
1. Recover the refrigerant. Service and Repair

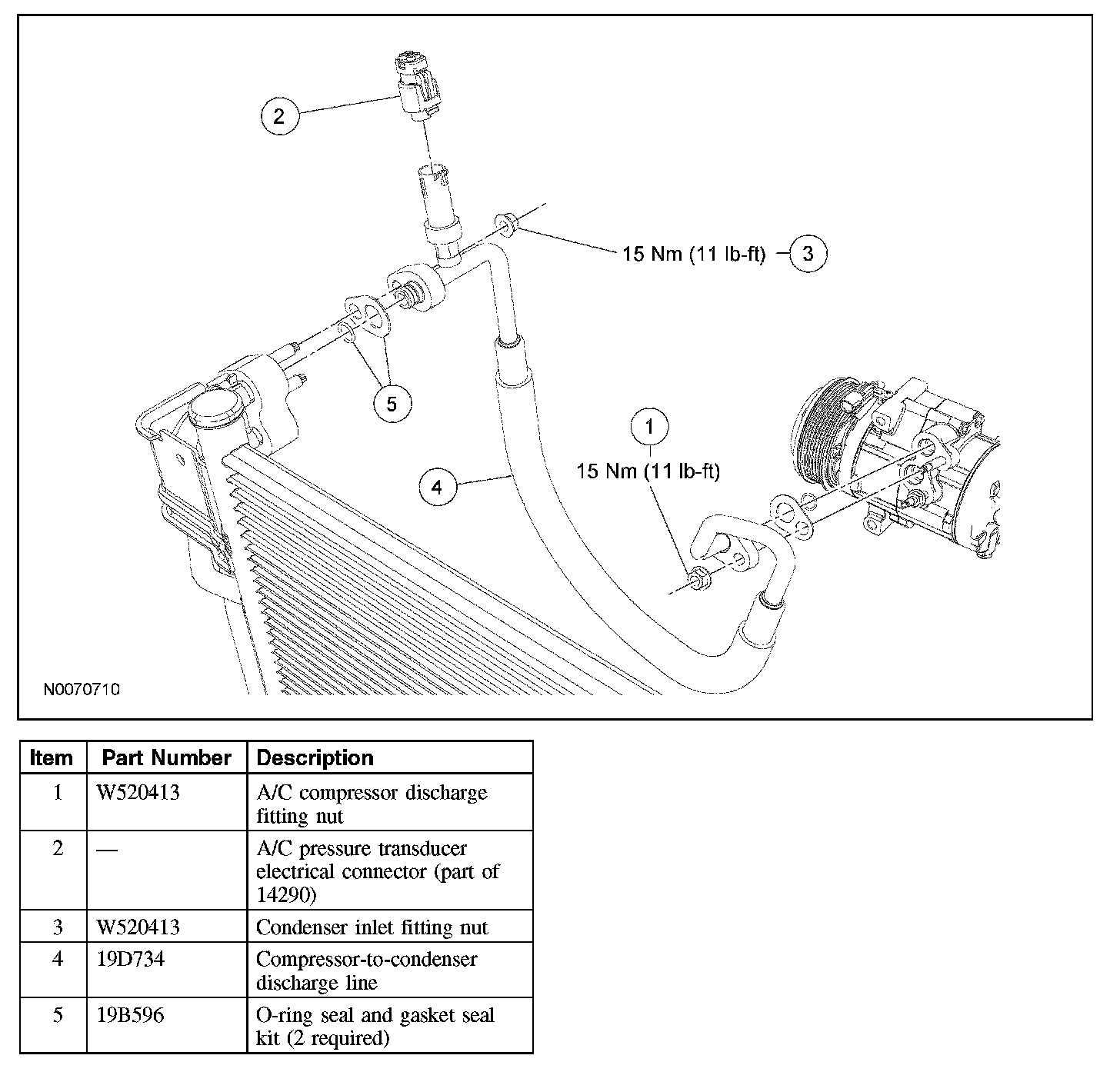

2. Remove the A/C compressor discharge fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (11 lb-ft).

3. Disconnect the A/C pressure transducer electrical connector.
4. Remove the condenser inlet fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (11 lb-ft).

5. Remove the compressor-to-condenser discharge line.
6. To install, reverse the removal procedure.
- Install new gasket seals and O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil. Service and Repair

7. Evacuate, leak test and charge the refrigerant system. Service and Repair
