Muffler: Service and Repair

Muffler and Tailpipe

Removal and Installation

CAUTION: Do not use oil or grease-based lubricants on the isolators. They may cause deterioration of the rubber.

CAUTION: Oil or grease-based lubricants on the isolators may cause the exhaust hanger isolator to separate from the exhaust hanger bracket during vehicle operation.

1. With the vehicle in NEUTRAL, position it on a hoist.

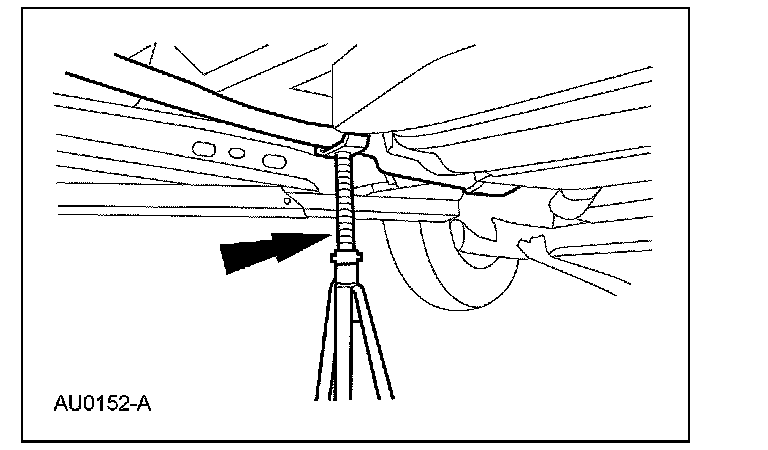

2. Support the muffler and tailpipe with a suitable jackstand.





3. Remove and discard the 2 exhaust Y-pipe flange nuts.
^ Discard the gasket.
^ To install, tighten to 40 Nm (30 lb-ft).

4. CAUTION: Do not damage or tear the isolators during removal.

Using soapy water, separate the 3 isolators and remove the muffler and tailpipe assembly from the vehicle.
5. To install, reverse the removal procedure.
^ Install a new gasket and nuts.
^ Inspect and replace any isolators damaged or torn during the removal process.
6. Start the engine and check for exhaust leaks.
