Engine Mount: Service and Repair

Engine Mount

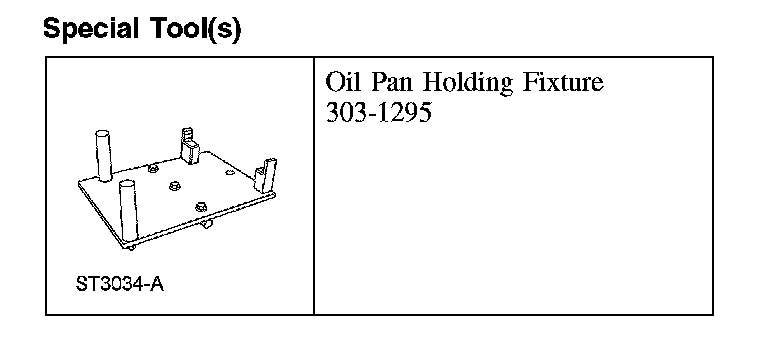

Special Tool(s)

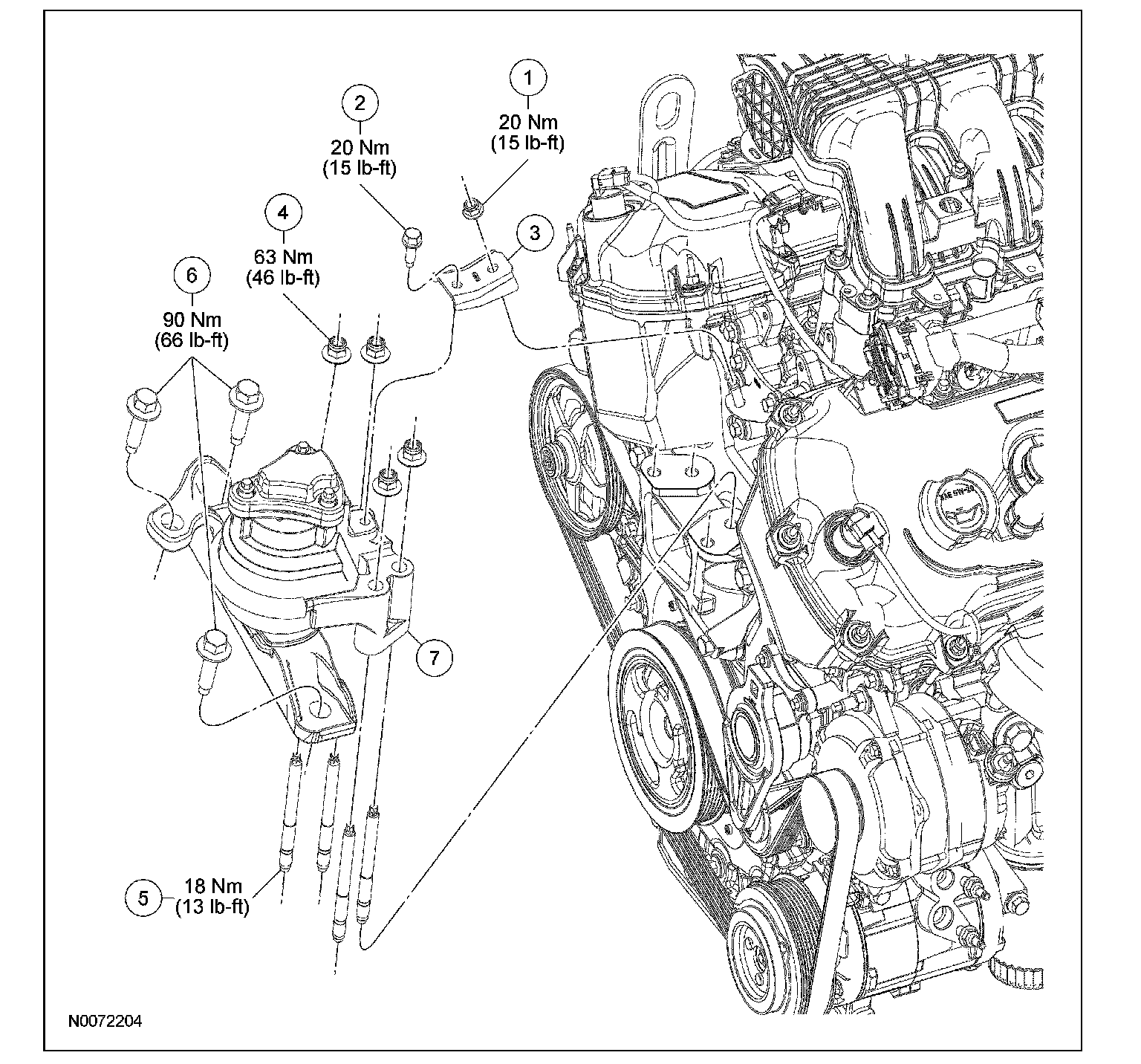

Part 1:

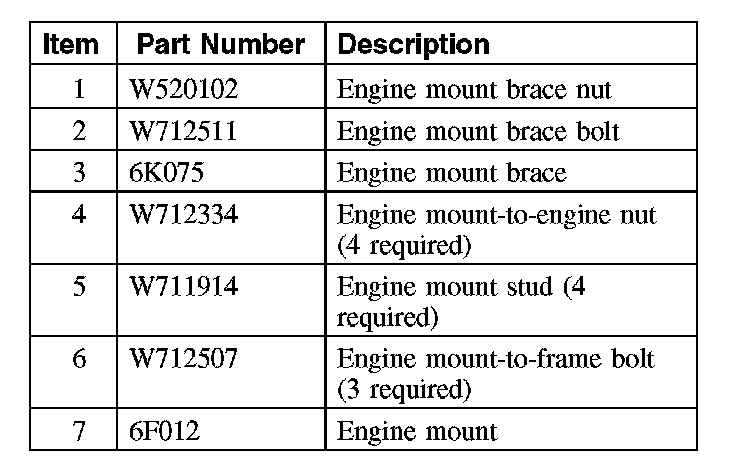

Part 2:

Removal and Installation
1. Remove the exhaust flexible pipe.

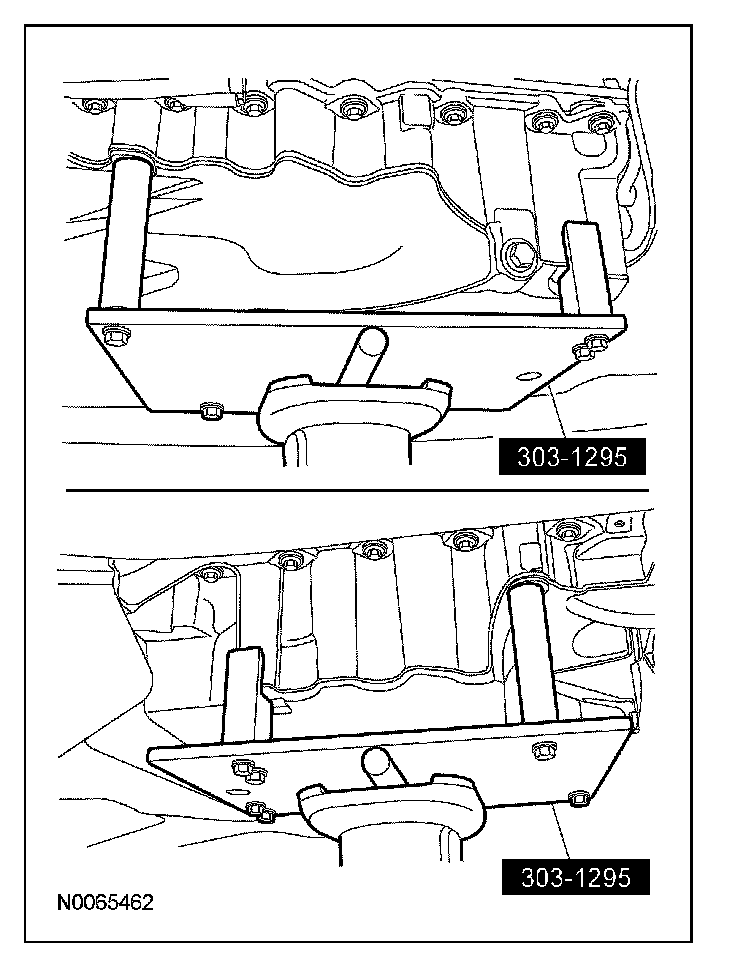

2. CAUTION: The special tool must be carefully aligned to the mounting bosses on the oil pan. Failure to follow these instructions may result in damage to the oil pan.

Position a floor jack and the special tool under the oil pan.





3. Remove the engine coolant degas bottle.
4. Remove the nut, bolt and engine mount brace.
^ To install, tighten to 20 Nm (15 lb-ft).
5. Remove the 4 engine mount nuts.
^ To install, tighten to 63 Nm (46 lb-ft).
6. Remove the 4 engine mount studs.
^ To install, tighten to 18 Nm (13 lb-ft).
7. Remove the 3 bolts and the engine mount.
^ To install, tighten to 90 Nm (66 lb-ft).
8. To install, reverse the removal procedure.
