Radiator: Service and Repair

Radiator

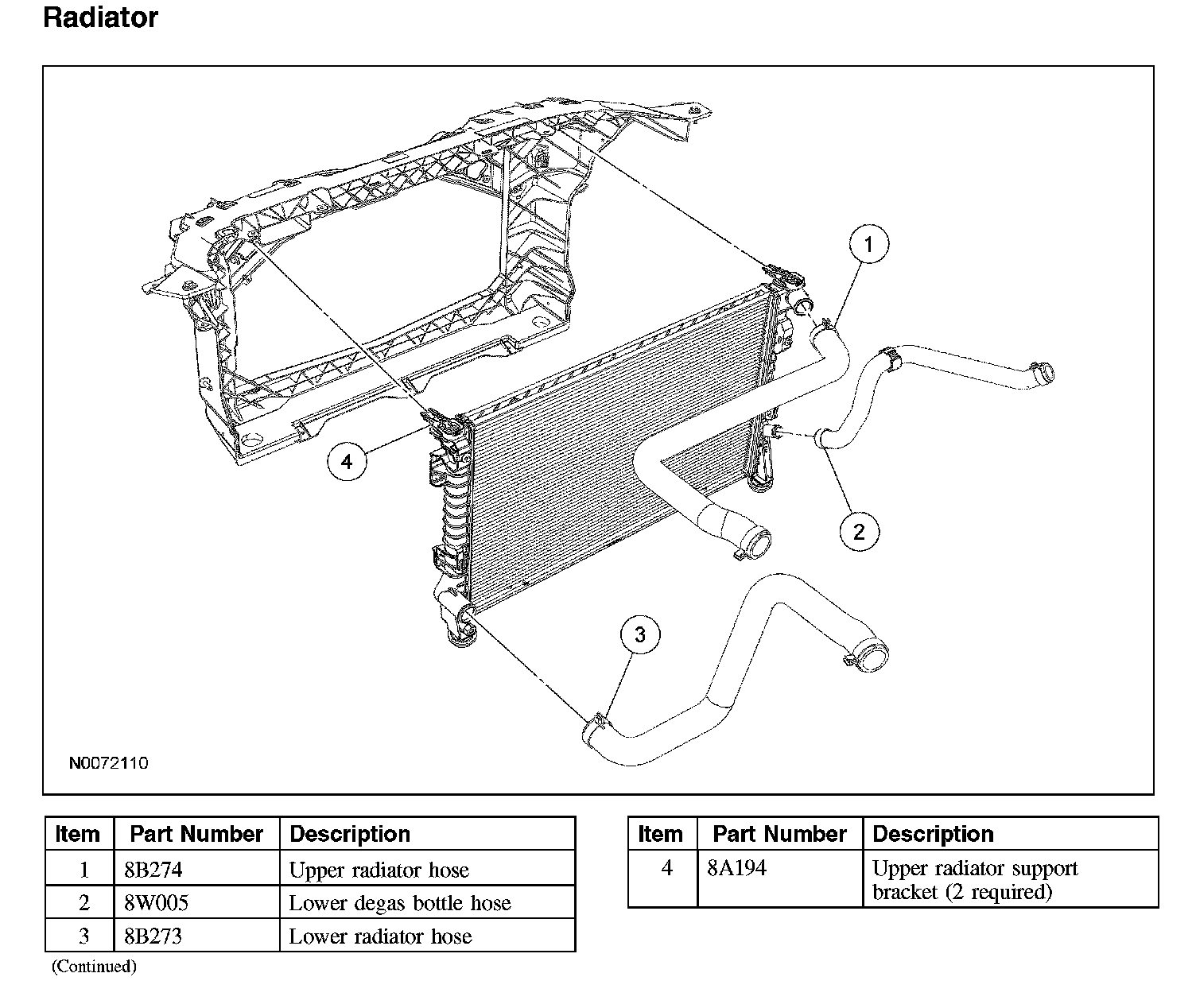

Radiator (Part 1):

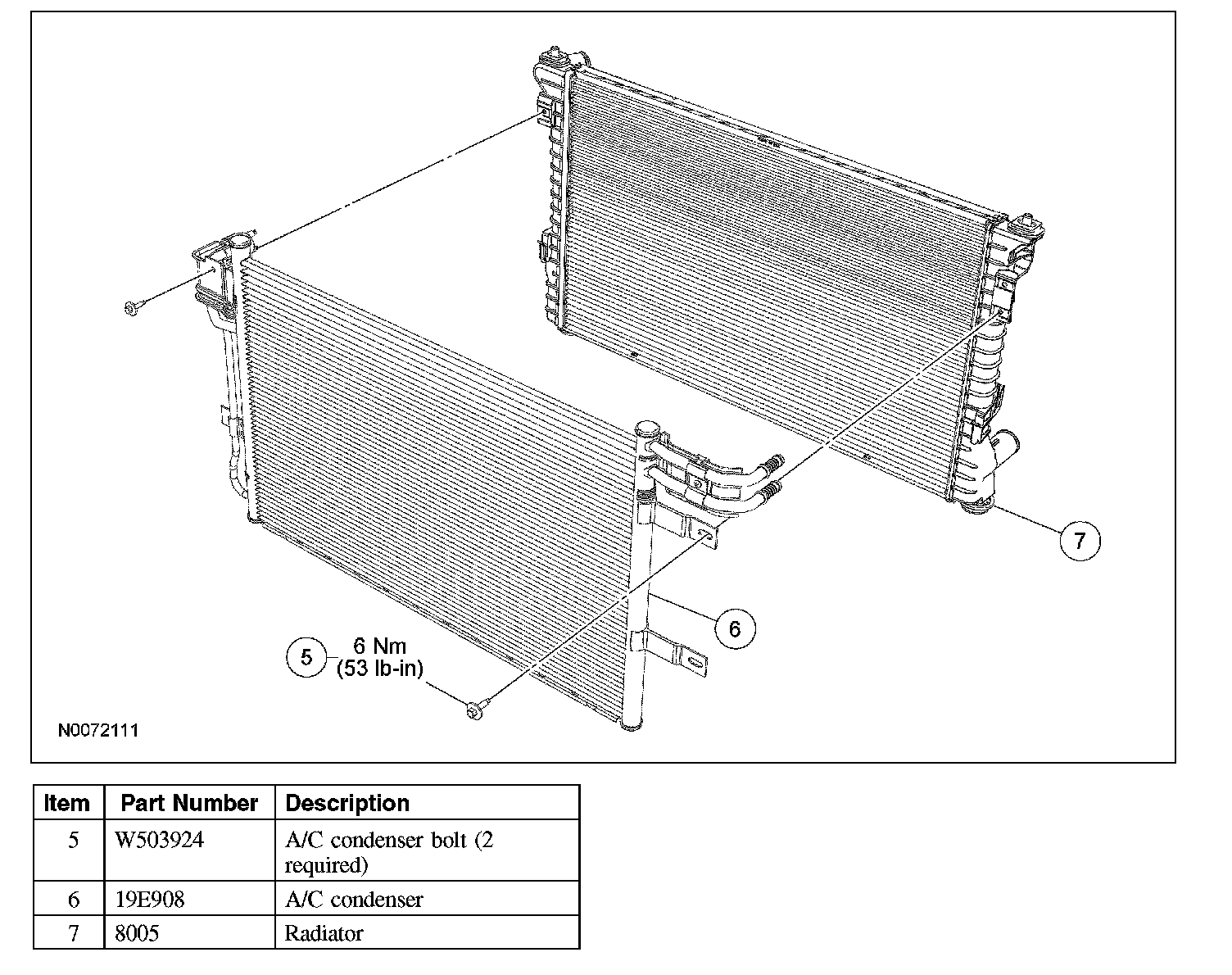

Radiator (Part 2):

Removal and Installation
1. Drain the cooling system.
2. Remove the cooling fan motor and shroud.
3. Remove the front bumper cover.
4. Disconnect the upper radiator hose and lower degas bottle hose from the radiator.
5. Disconnect the lower radiator hose from the radiator.
6. Lift the tabs and remove the radiator support brackets and position the radiator towards the engine.
7. Remove the 2 A/C condenser bolts from the radiator and separate the condenser from the radiator.
^ To install, tighten to 6 Nm (53 lb-in).
8. Remove the radiator.
9. To install, reverse the removal procedure.
10. Fill and bleed the cooling system.
