Mercury
>>
2008
>>
Sable AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C365-C527
>>
C452
C452

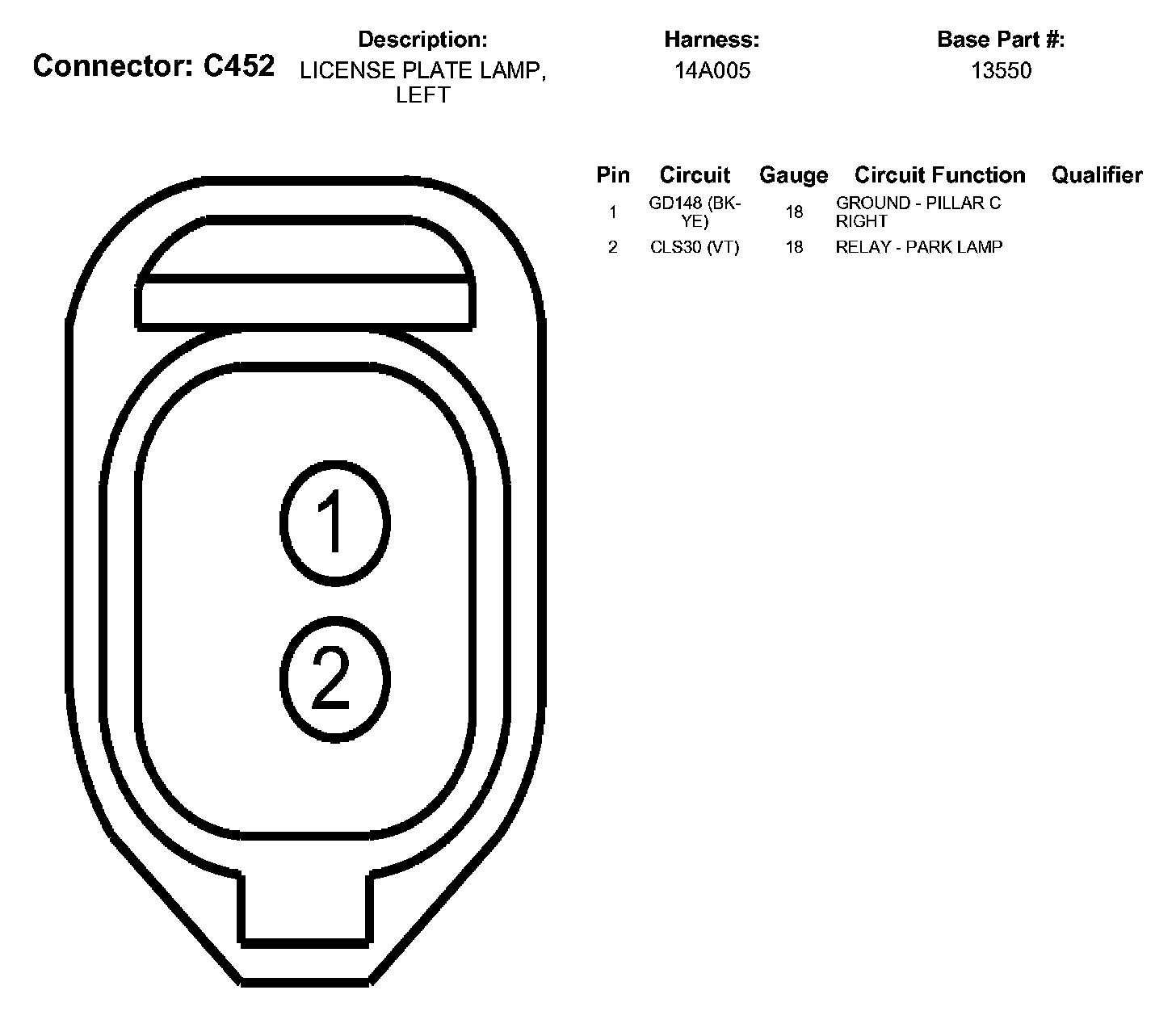

C452:

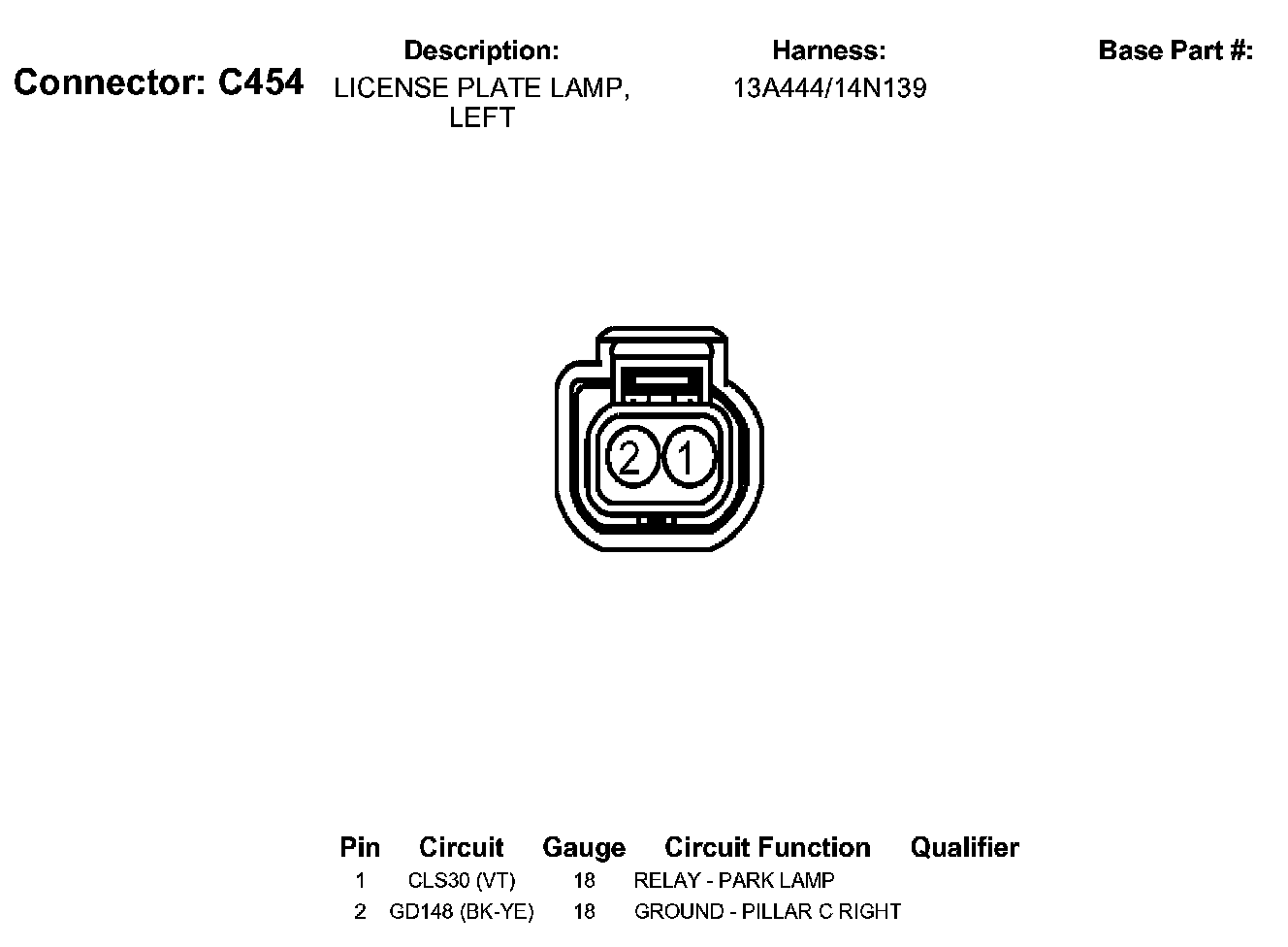

C454:
