Mercury
>>
2008
>>
Sable AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>
Driver Air Bag Module
Driver Air Bag Module

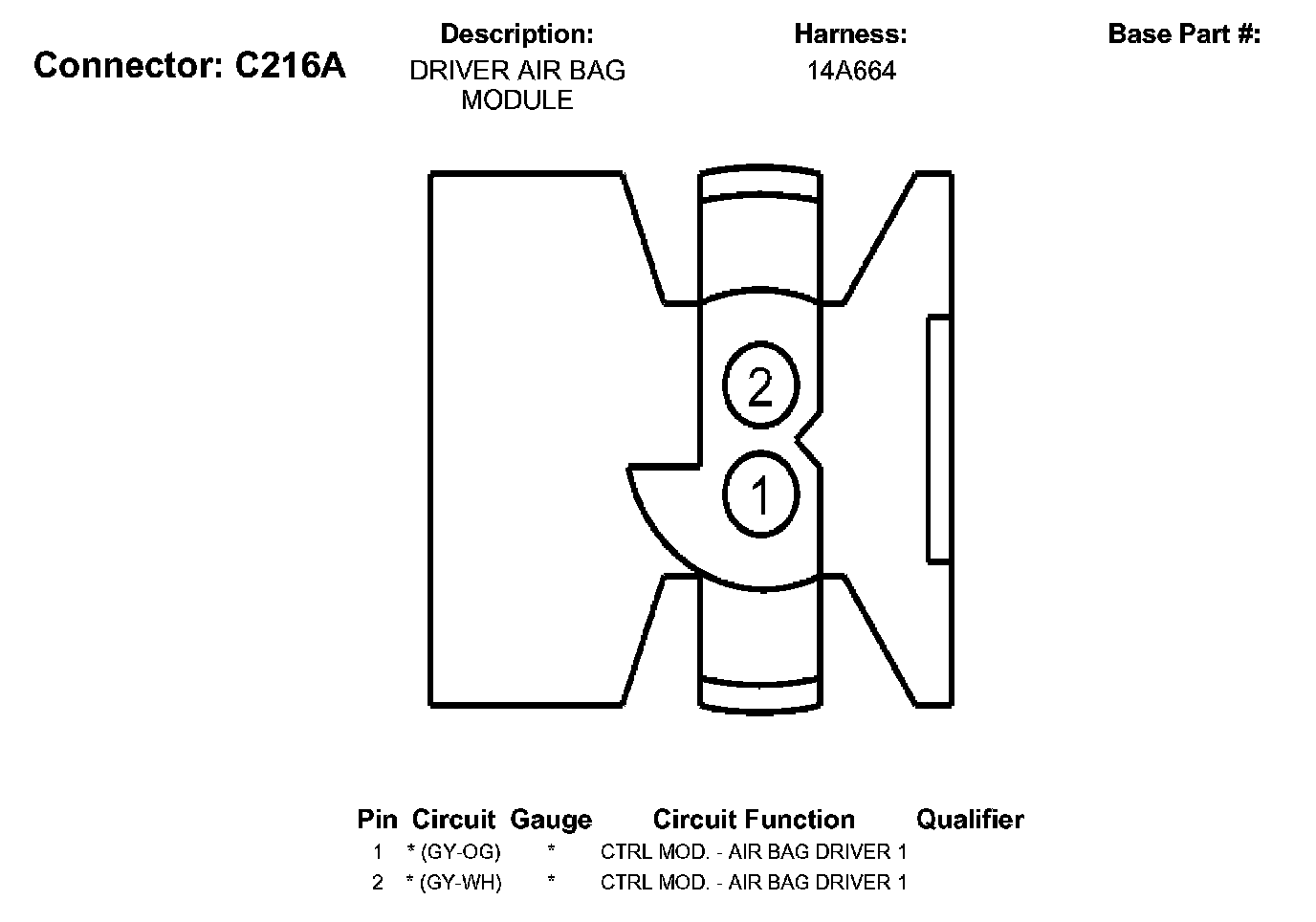

C216A:
C216B:
