Parking Brake System: Service and Repair

Parking Brake - Exploded View

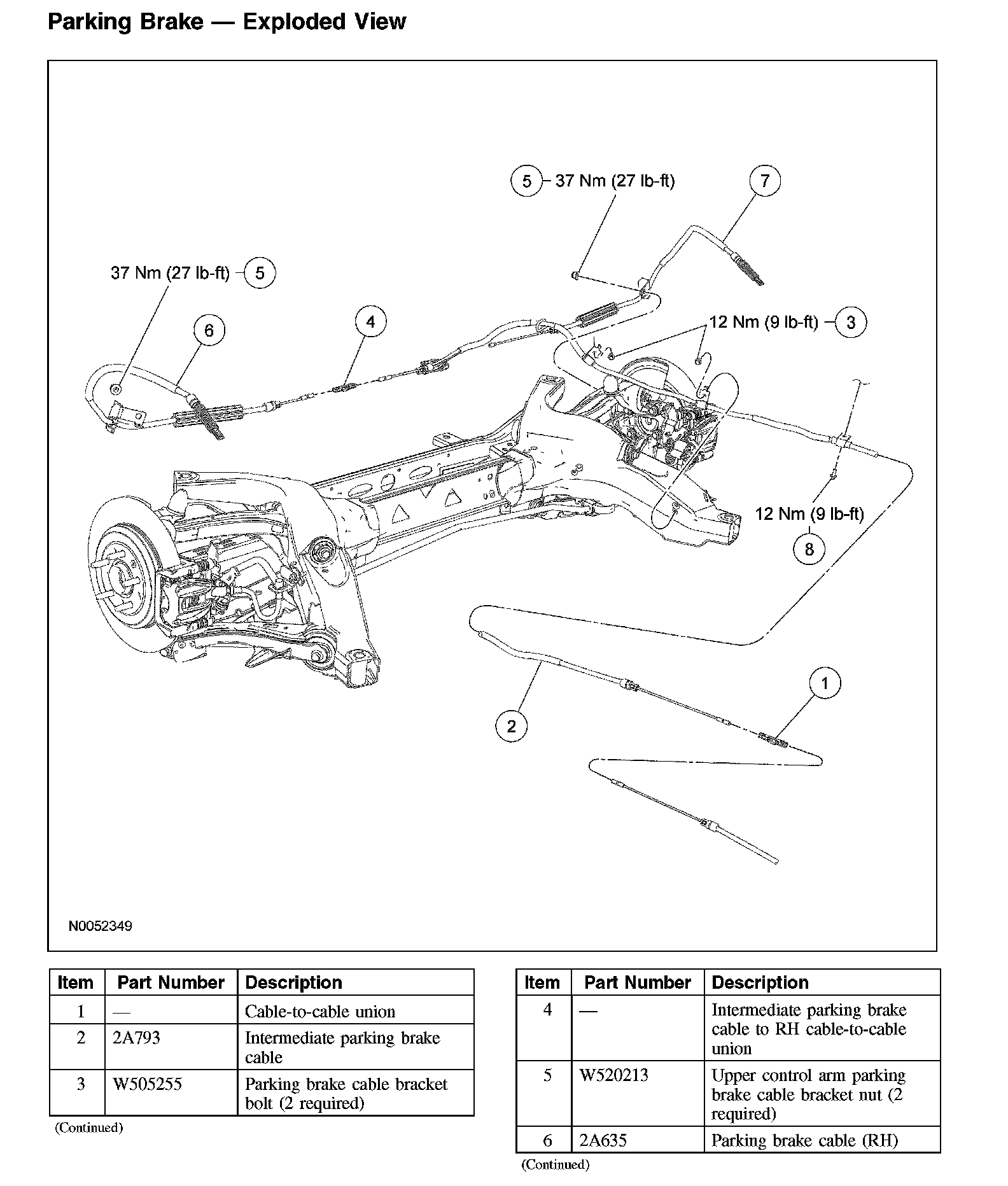

Parking Brake - Exploded View (Part 1):

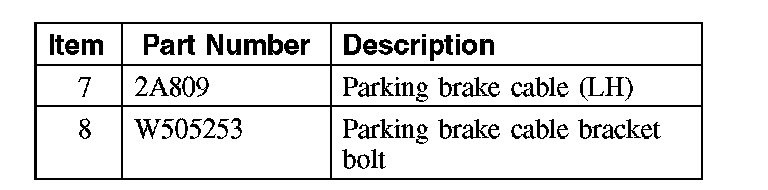

Parking Brake - Exploded View (Part 2):
