Roof Opening Panel Shield
ROOF OPENING PANEL SHIELDExploded View
Part 1:
Part 2:
Headliner - Taurus, Sable:
Headliner - Taurus X:
Removal and Installation
1. Remove the roof opening panel glass.
2. Slide the roof opening panel shield forward halfway.

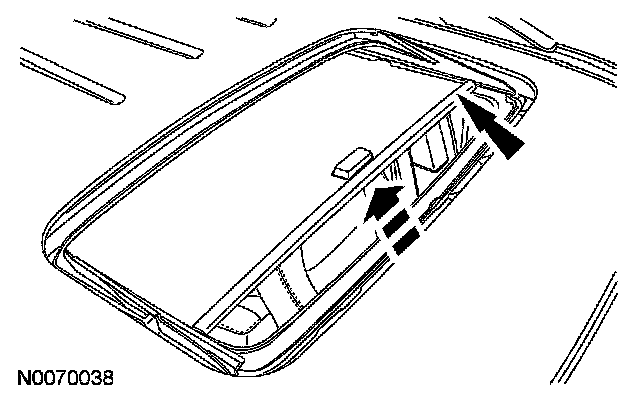

3. Disengage the roof opening panel shield guide feet.
- Lift the front portion of the roof opening panel shield upward at center until able to disengage one of the front guide feet.

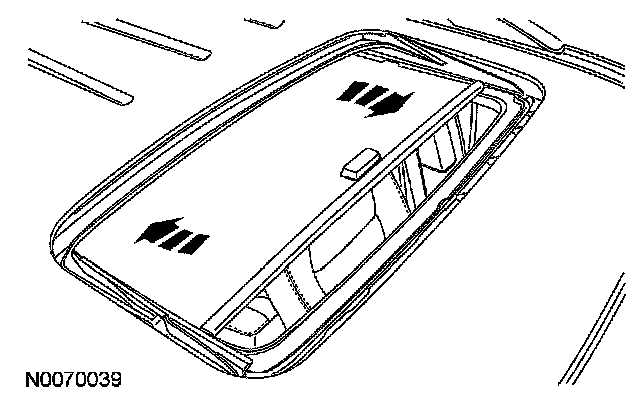

4. With one of the guide feet released, carefully rotate the roof opening panel shield in a clockwise manner to disengage the remaining guide feet.
5. To install, reverse the removal procedure.
