Auto-Dimming Interior Mirror

AUTO-DIMMING INTERIOR MIRROR

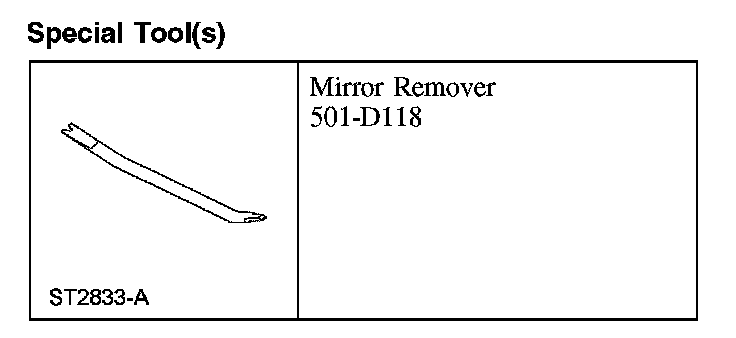

Special Tool(s)

Special Tool(s):

Removal
1. Remove the wire cover.
2. Disconnect the electrical connector.

3. NOTE:
- If equipped, the compass module does not need to be removed prior to this step.
- High level mirror shown, others similar.

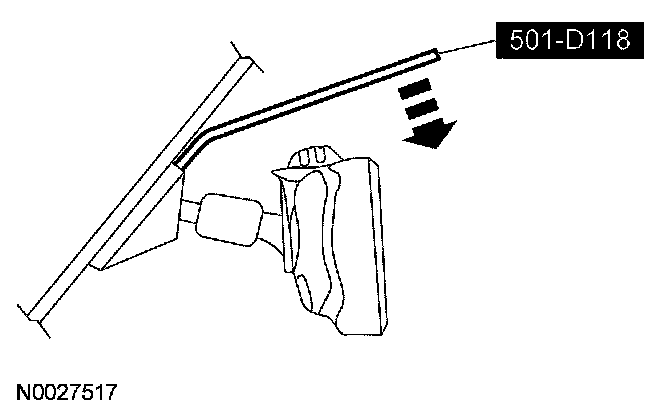

Insert the special tool between the mirror mount and windshield bracket from the top.

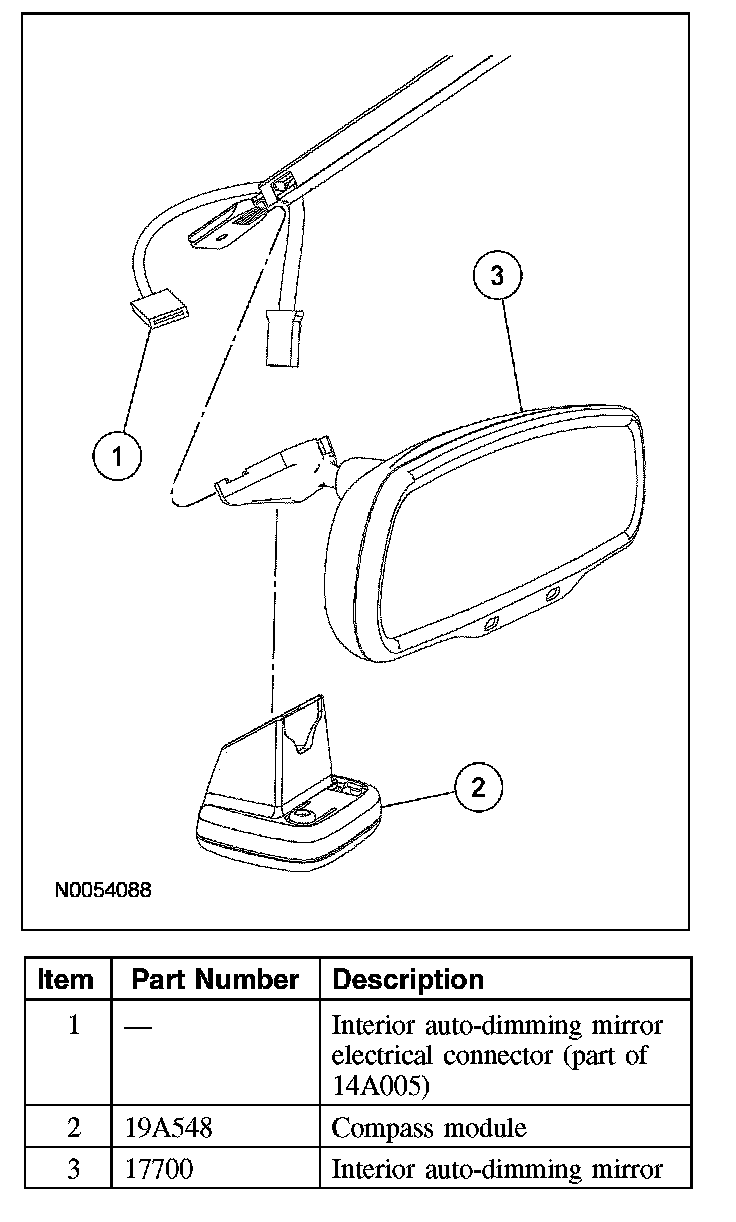

4. If equipped, separate the compass module from the mirror assembly by disengaging the compass module locking tabs.

5. CAUTION: Twisting the interior rear view mirror base from right to left may cause a stress fracture to the windshield.

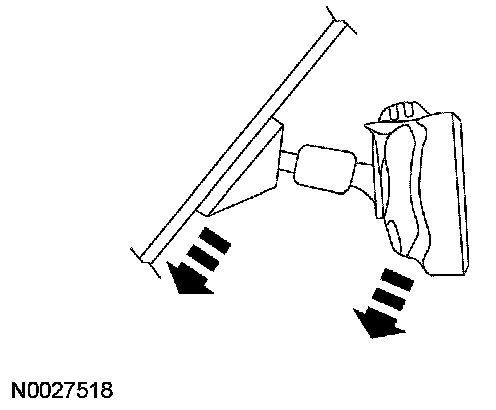

Release the mirror mount from the windshield bracket by pulling the tool and mirror down and away from the windshield.

Installation
1. Slide the mirror mount over the windshield bracket from the top and adjust the mirror to the upward position.







2. Quickly press the mirror assembly downward along the windshield until a click is felt. The click indicates the base is engaged to the windshield bracket.
3. Connect the electrical connector and wire cover.
4. If equipped, install the compass module. Check the compass zone and calibration.
