Subwoofer Speaker

SUBWOOFER SPEAKER

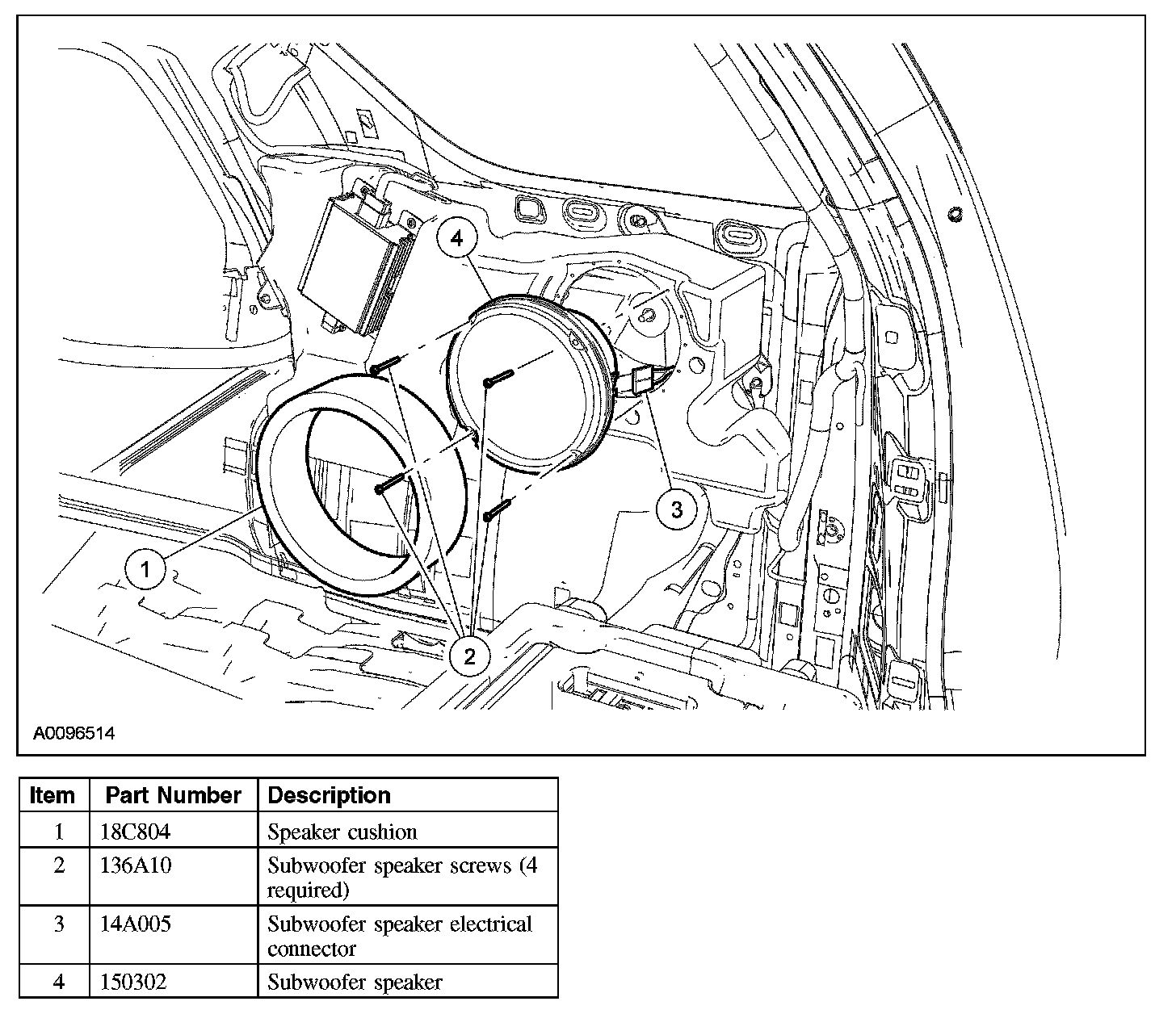

Removal and Installation
1. Remove the RH rear quarter trim panel.
2. Remove the speaker cushion.
3. Remove the 4 screws and the subwoofer speaker.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
