Speaker Enclosure

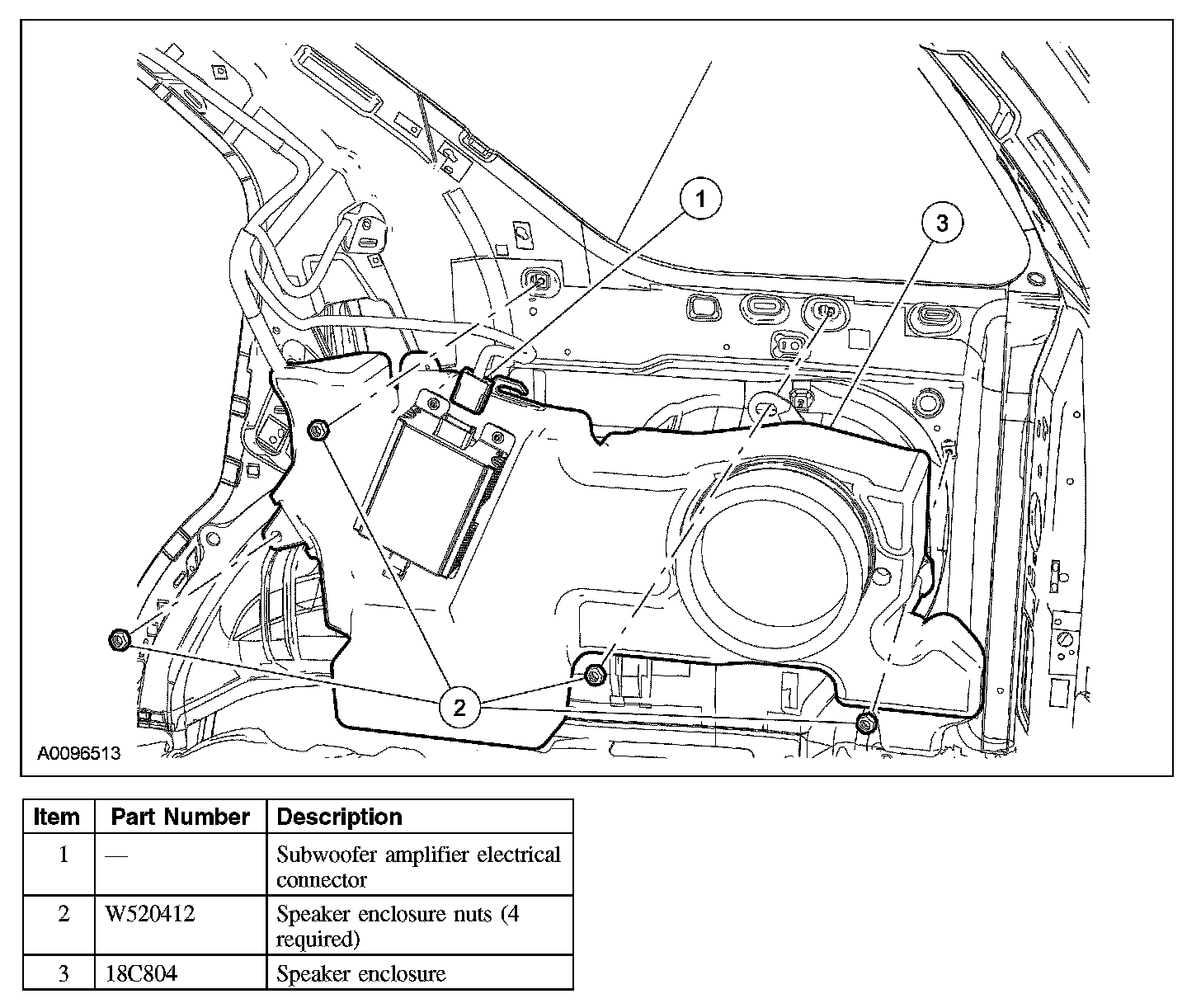

SPEAKER ENCLOSURE
Removal and Installation
1. Remove the RH rear quarter trim panel.
2. Remove the 4 nuts and the speaker enclosure.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the RH rear quarter trim panel.
2. Remove the 4 nuts and the speaker enclosure.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
