Removal and Replacement

SATELLITE RADIO RECEIVER

Wagon:

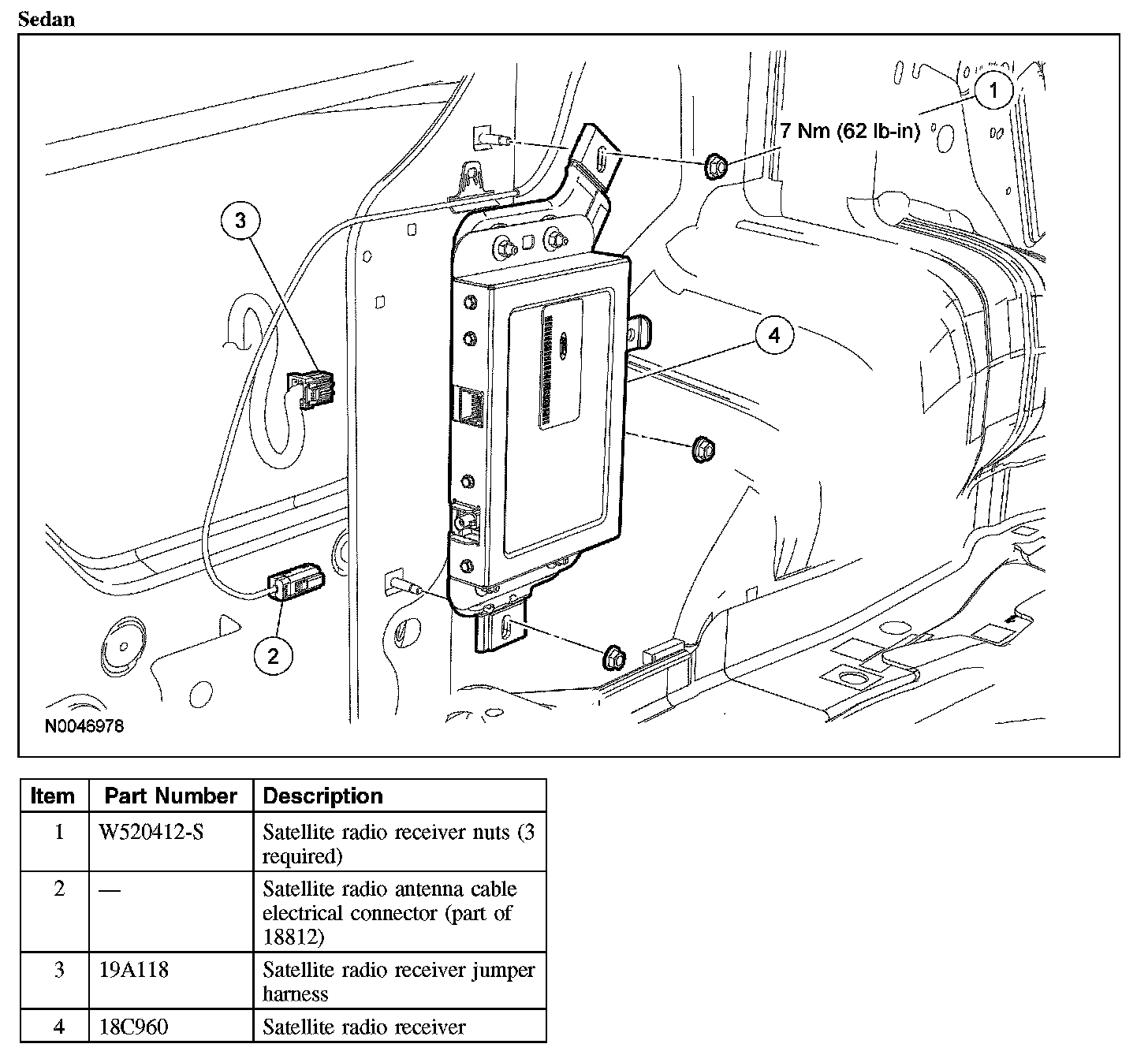

Sedan:

Removal and Installation

Wagon
1. Remove the RH quarter trim panel.

Sedan
2. Remove the LH luggage compartment trim panel.

All vehicles
3. Remove the 4 bolts or 3 nuts and remove the satellite radio receiver.
- Disconnect the satellite radio antenna cable electrical connector.
- Disconnect the satellite radio receiver jumper harness.
- To install, tighten to 7 Nm (62 lb-in) (sedan only).

4. To install, reverse the removal procedure.
