Amplifier: Service and Repair

SUBWOOFER AMPLIFIER

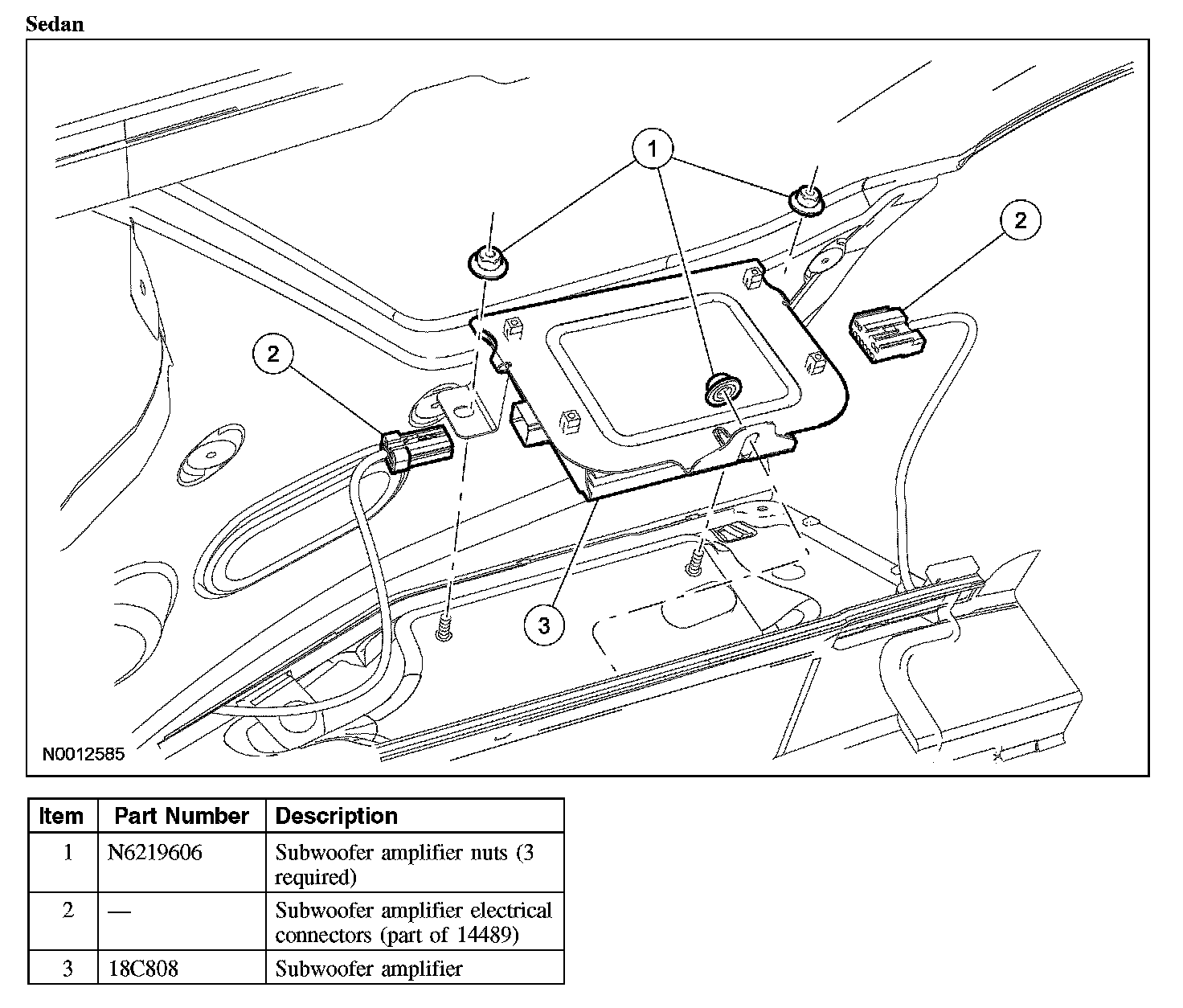

Sedan:

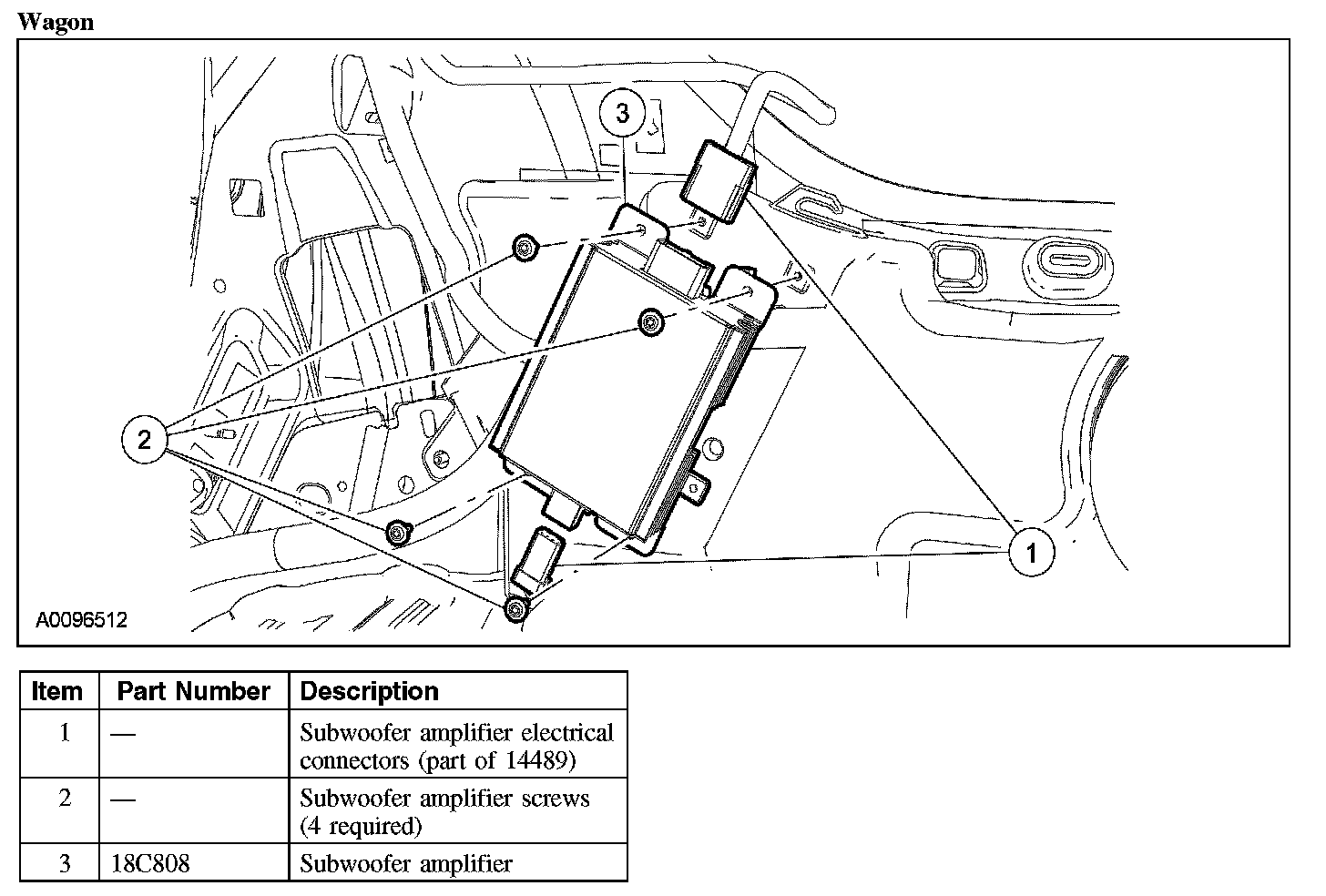

Wagon:

Removal and Installation

CAUTION: Make sure the audio unit is off before removing or installing the audio amplifier. Failure to follow these instructions may result in damage to the audio amplifier.

Sedan
1. Remove the LH rear trunk trim.
2. Remove the 3 nuts and the subwoofer amplifier.
- Disconnect the electrical connectors.

Wagon
3. Remove the RH rear quarter trim panel.
4. Remove the 4 screws and the subwoofer amplifier.
- Disconnect the electrical connectors.

All vehicles
5. To install, reverse the removal procedure.
