DVD Player: Service and Repair

DIGITAL VERSATILE DISC (DVD) PLAYER

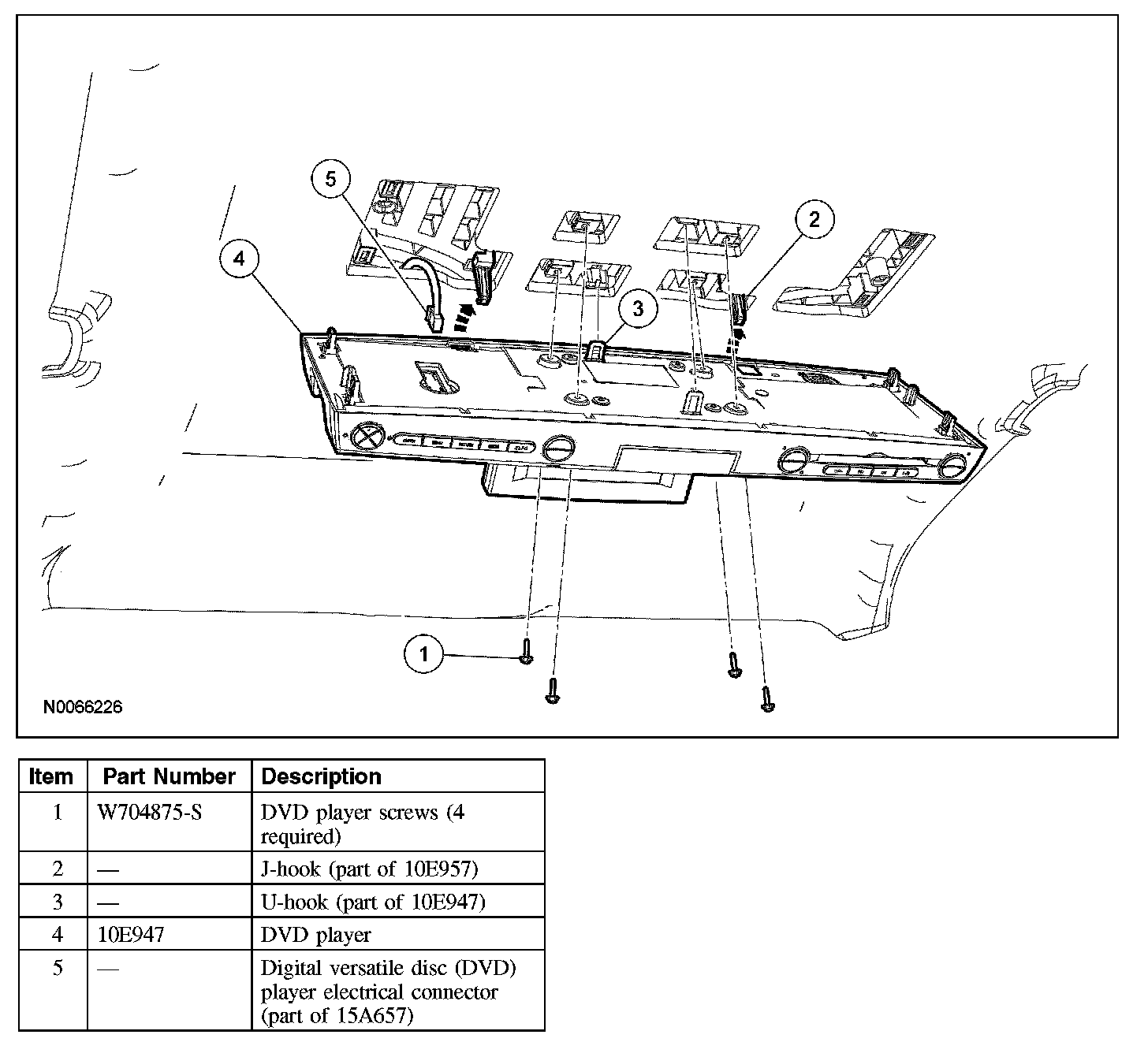

Removal

NOTE: Programmable module installation (PMI) only needs to be carried out if the DVD player is being replaced.

1. Upload the DVD player configuration to the scan tool.

2. NOTE: Open the DVD player display.

Remove the 4 screws.

3. Remove the DVD player.
- Pull down on the sides of the DVD player to disengage the clips from the bracket.
- Using a suitable tool, push the rear most U-hook forward and release the U-hooks.
- Hang the DVD player on the J-hooks and disconnect the electrical connector.
- Remove the DVD player from the J-hooks.

Installation
1. Hang the DVD player on the J-hooks.
2. Connect the electrical connector.
3. Remove the DVD player from the J-hooks.

4. NOTE: Tilt the DVD player, as necessary, to align it correctly.

Align the left side guide pin with the left side locating hole.

5. Lift up the right side of the DVD player and engage the U-hooks.
6. Install the 4 screws.
7. Push on the left and right sides of the DVD player to engage the clips.
8. Download the DVD player configuration from the scan tool.
