Antenna Cable - Satellite Radio

ANTENNA CABLE - SATELLITE RADIO

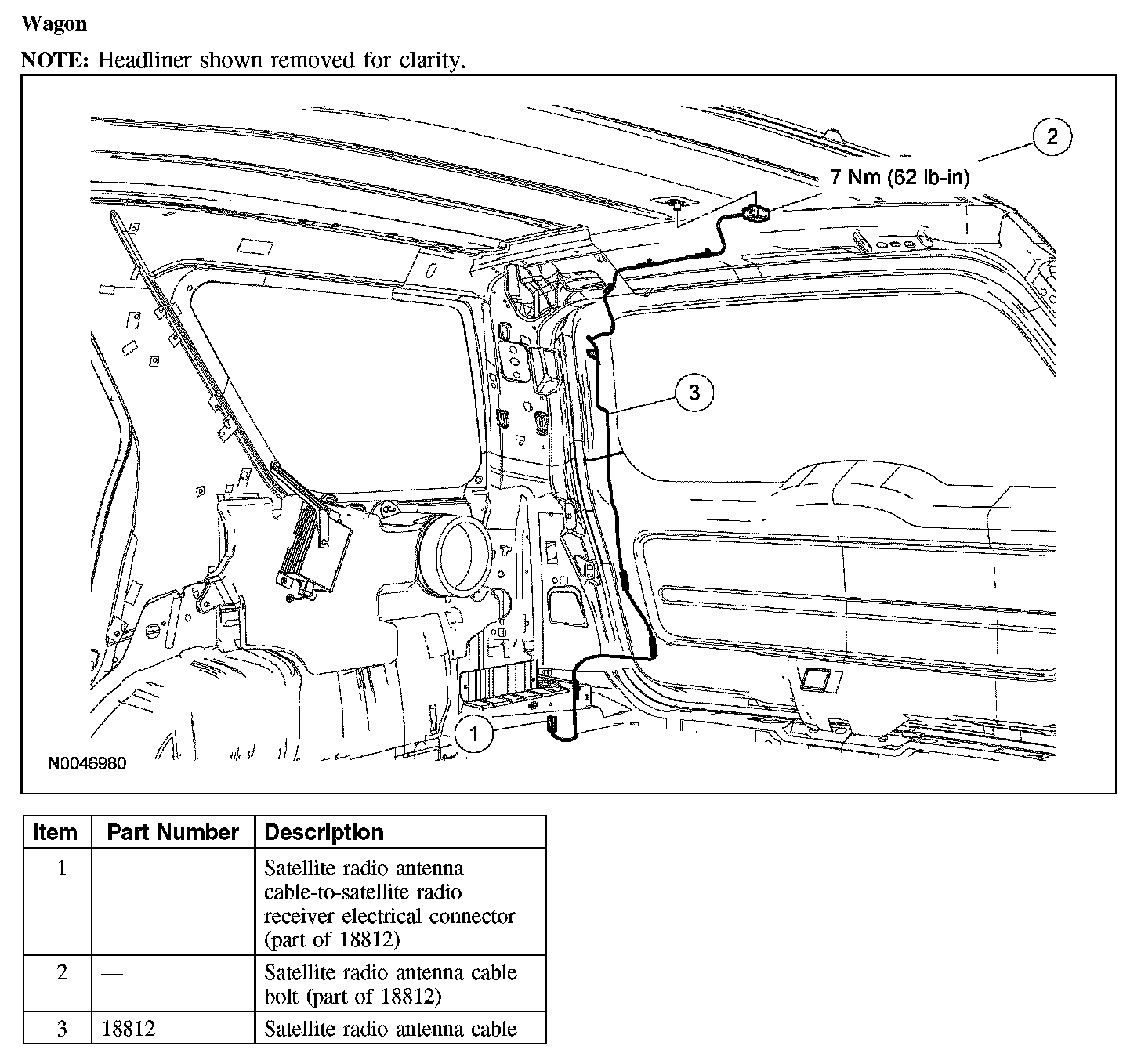

Wagon:

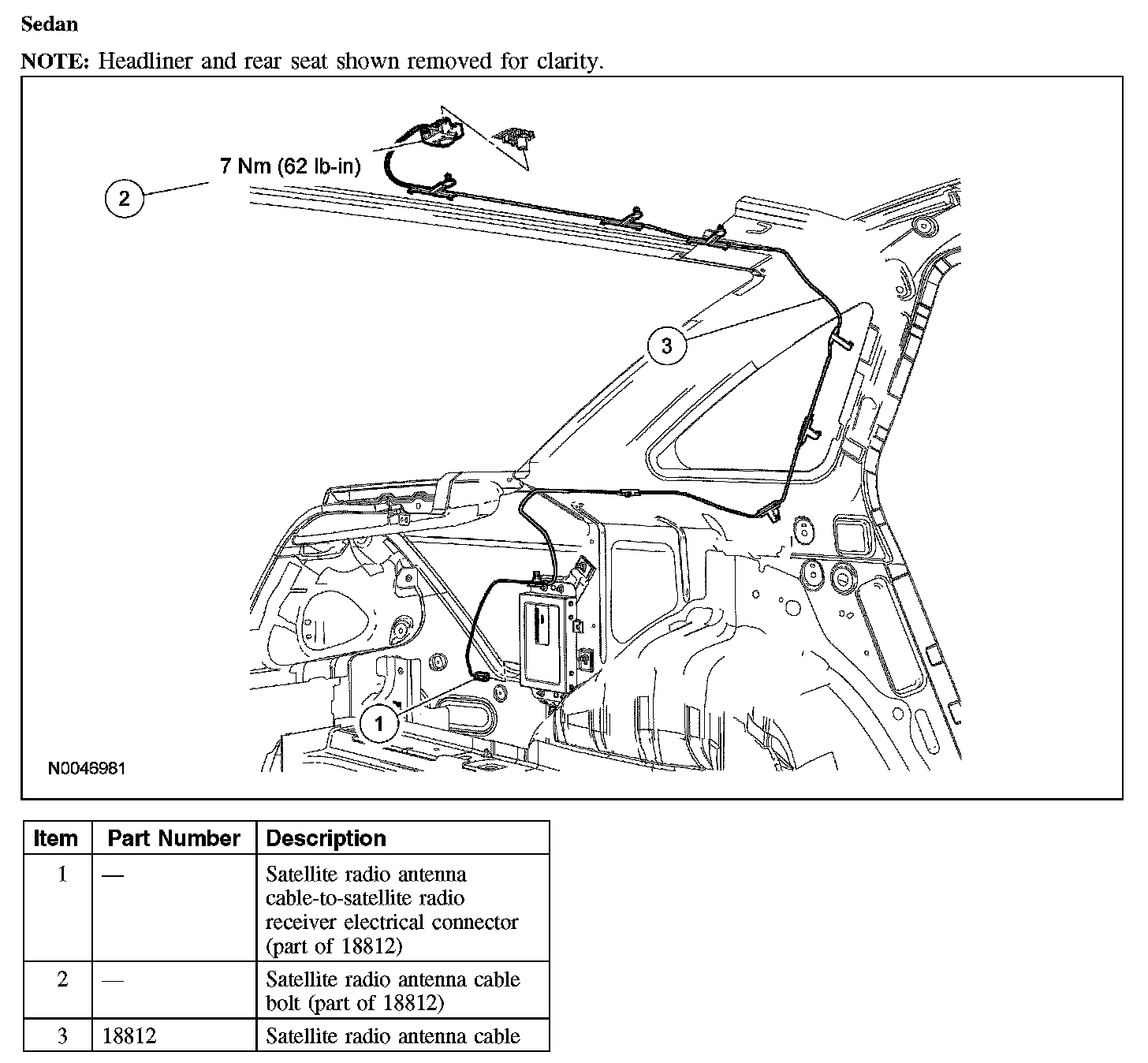

Sedan:

Removal and Installation

Wagon
1. Remove the RH quarter trim panel.
2. Remove both D-pillar trim panels.

Sedan
3. Remove the LH luggage compartment trim panel.
4. Remove both C-pillar trim panels.

All vehicles
5. Disconnect the satellite radio antenna cable-to-satellite radio receiver electrical connector.
6. Carefully lower the rear of the headliner to gain access to the satellite antenna.
7. Loosen the satellite radio antenna cable bolt and remove the satellite radio antenna cable.
- To install, tighten to 7 Nm (62 lb-in).

8. To install, reverse the removal procedure.
