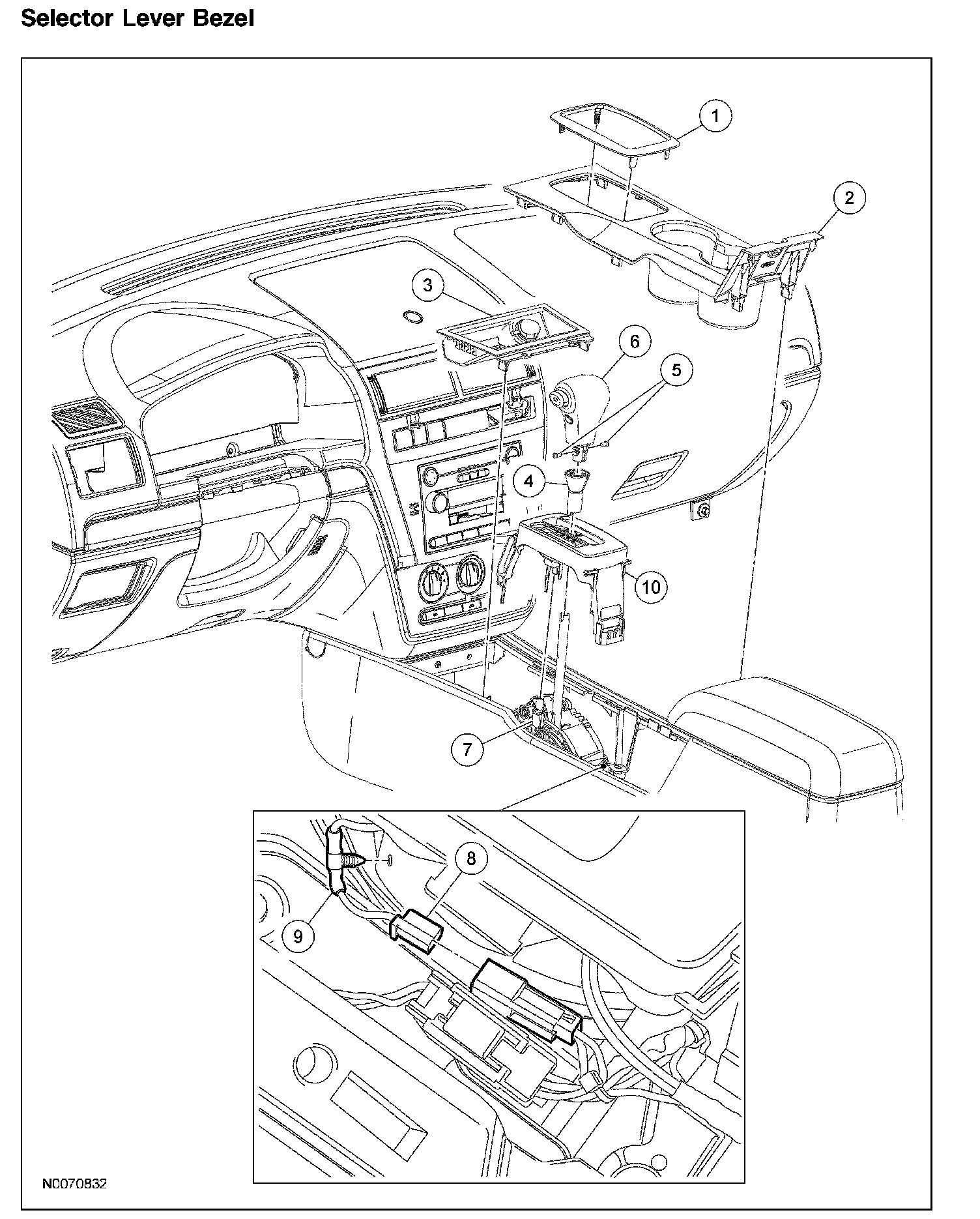

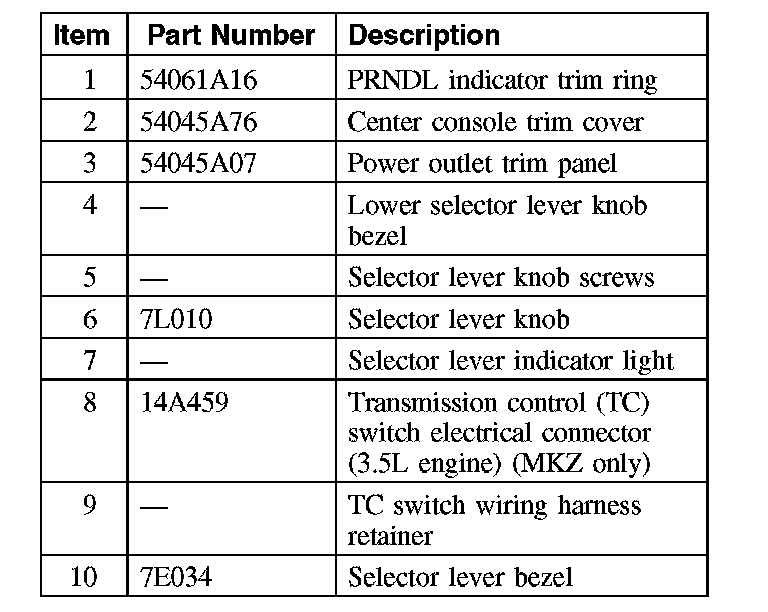

Selector Lever Bezel (Part 1):

Selector Lever Bezel (Part 2):

Removal

All vehicles

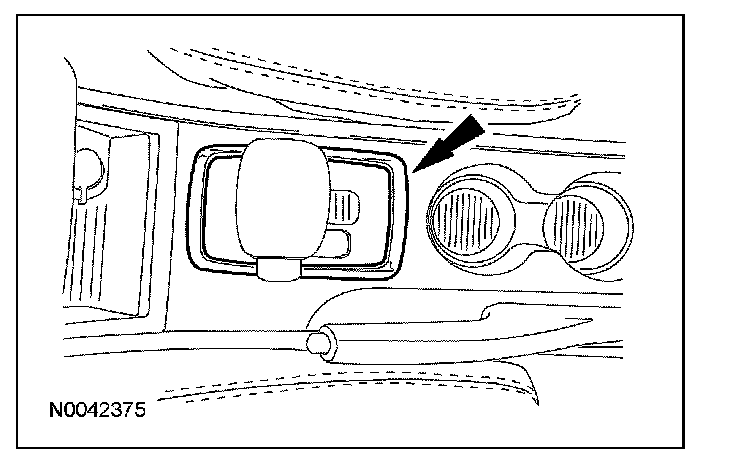

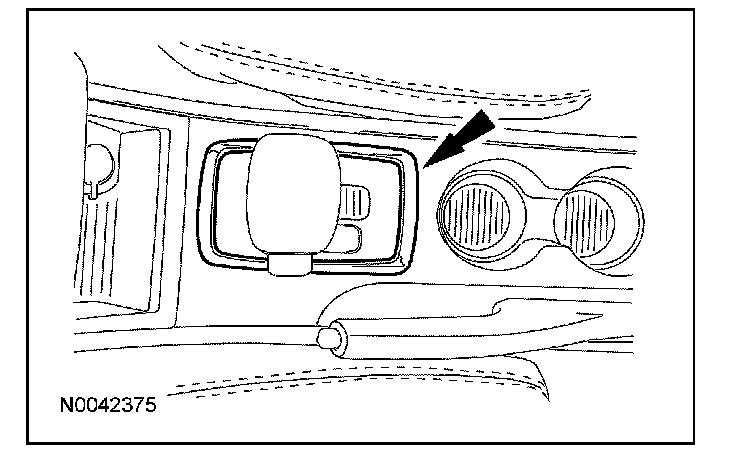

1. Remove the PRNDL trim ring.

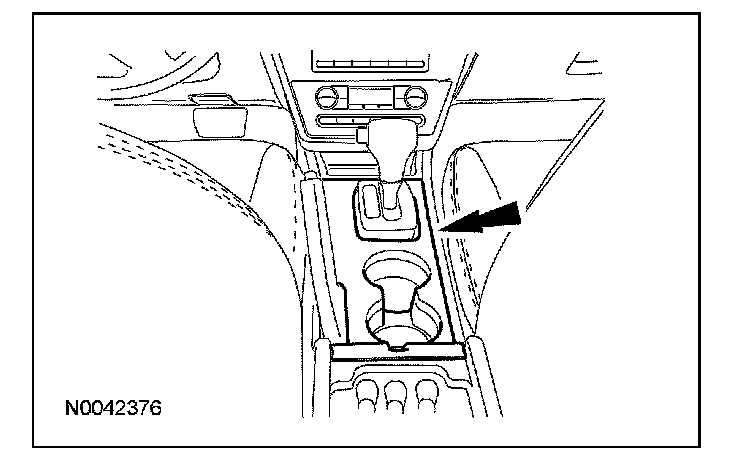

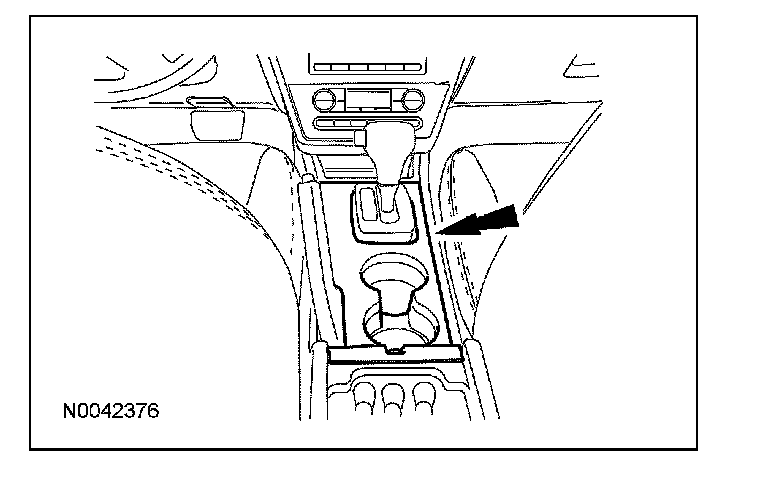

2. Remove the upper console panel.





Fusion/Milan

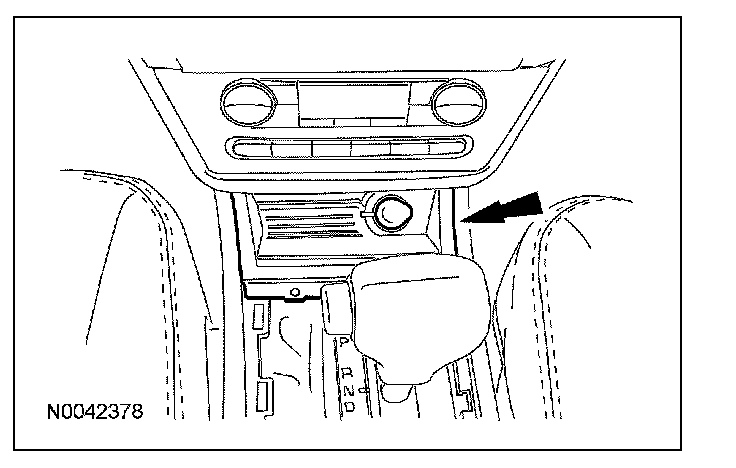

3. Remove the power outlet trim panel from the center console.

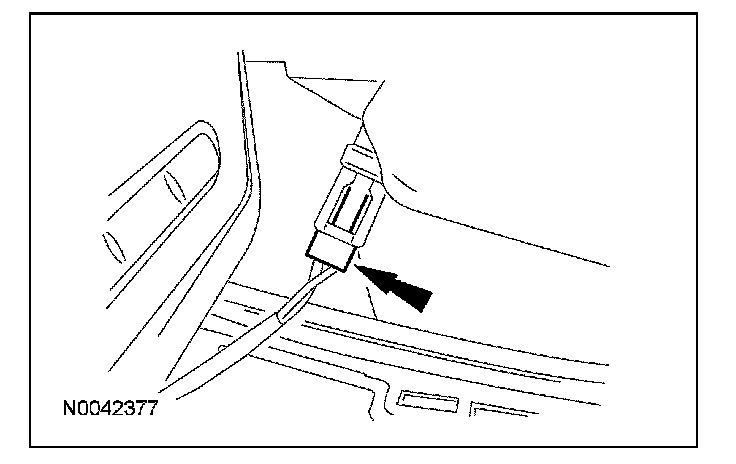

4. Disconnect the electrical connector and remove the power outlet trim panel.





All vehicles

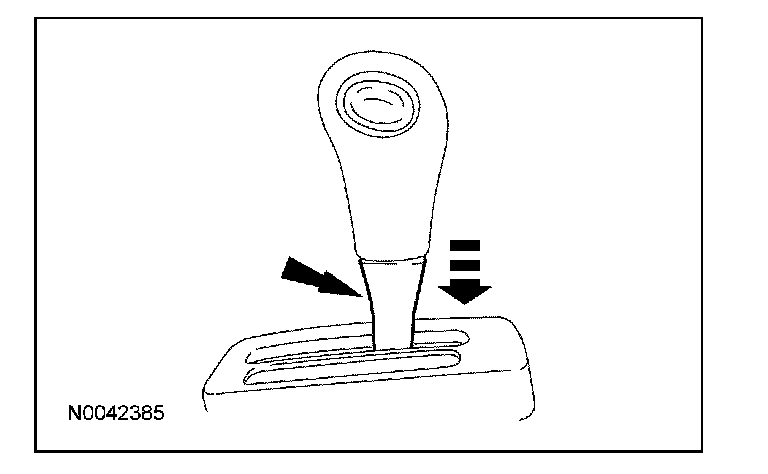

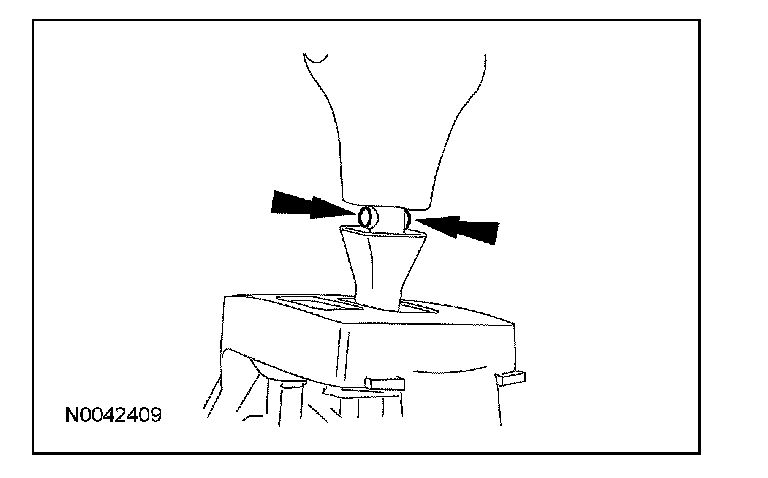

5. Slide the lower selector lever knob bezel downward.

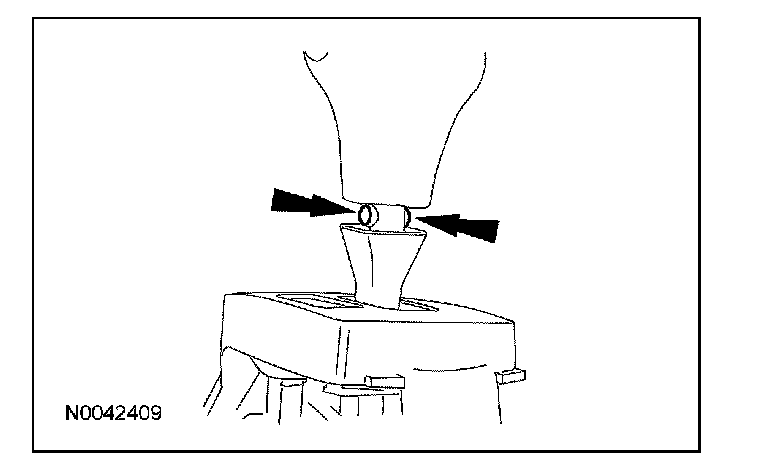

6. Remove and discard the 2 bolts from the selector lever knob.





Vehicles equipped with a light bulb
7. Disconnect the light from the PRNDL bezel.





Vehicles equipped with LED illumination

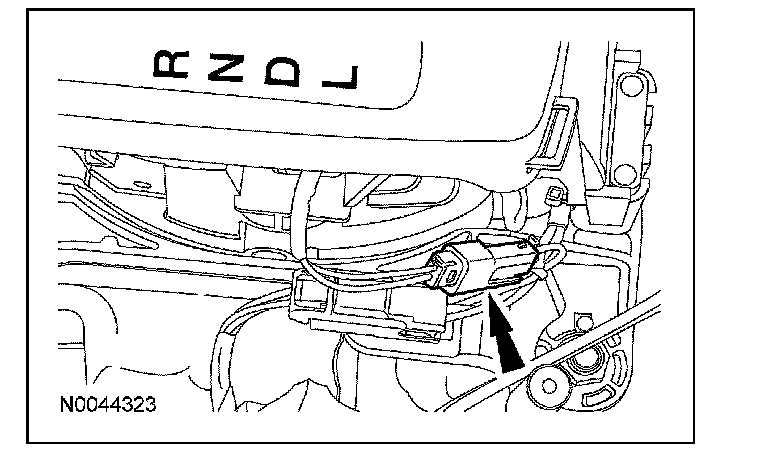

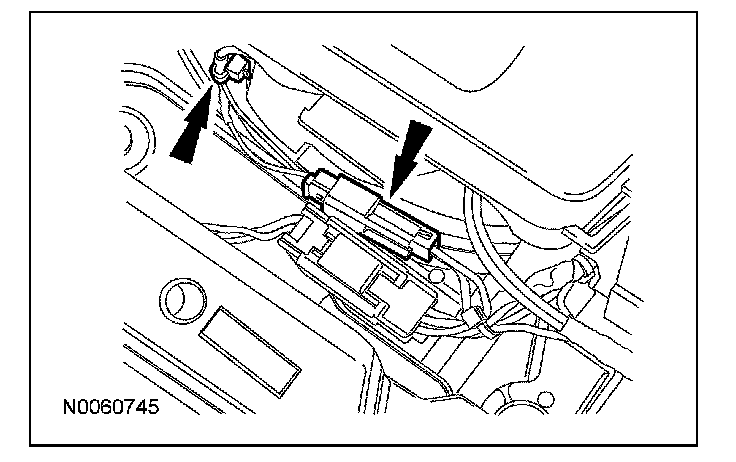

8. Disconnect the LED electrical connector.





Vehicles equipped with a transmission control (TC) switch

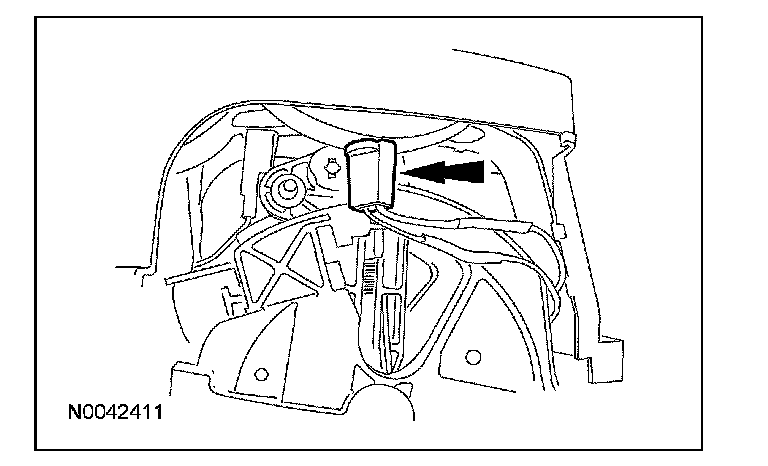

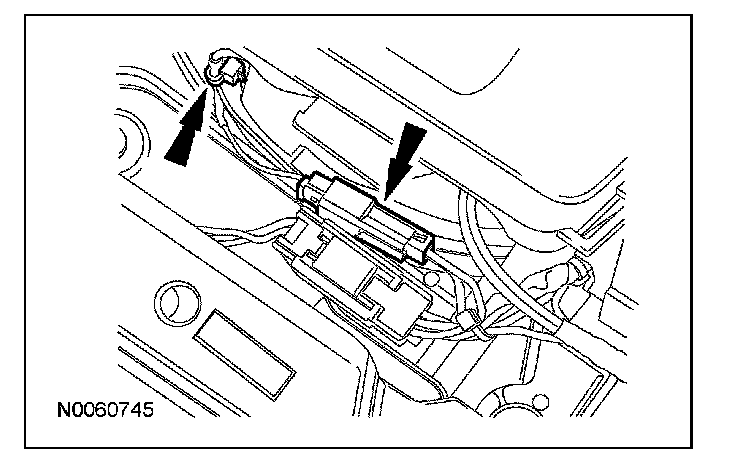

9. Disconnect the transmission control (TC) switch electrical connector and remove the wiring harness fastener from the selector lever housing.





All vehicles

10. NOTE: Selector lever removed for clarity.

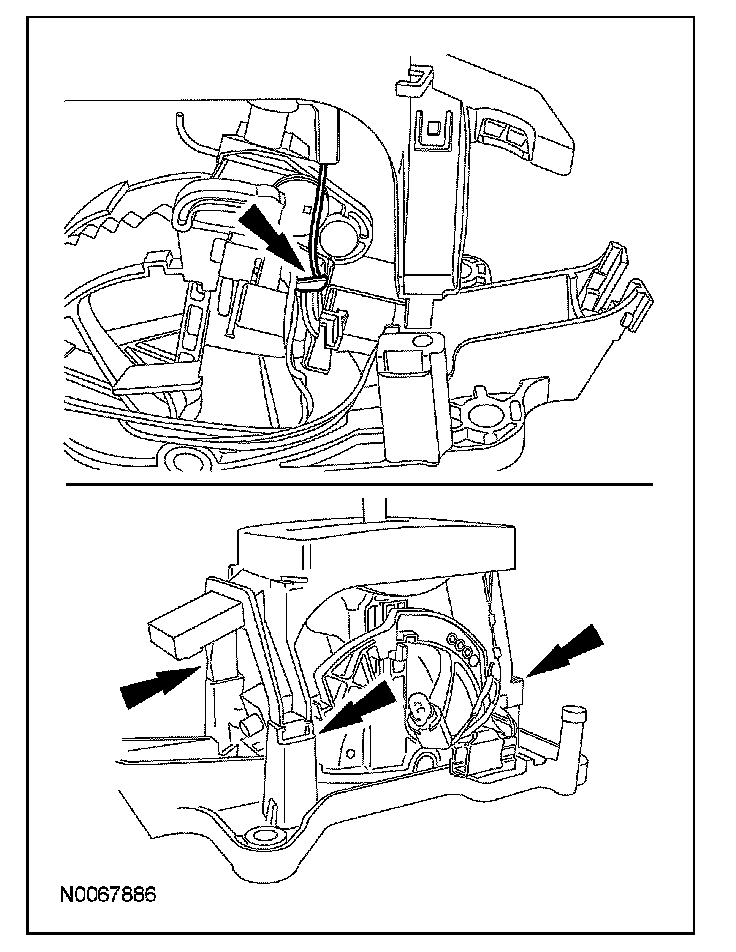

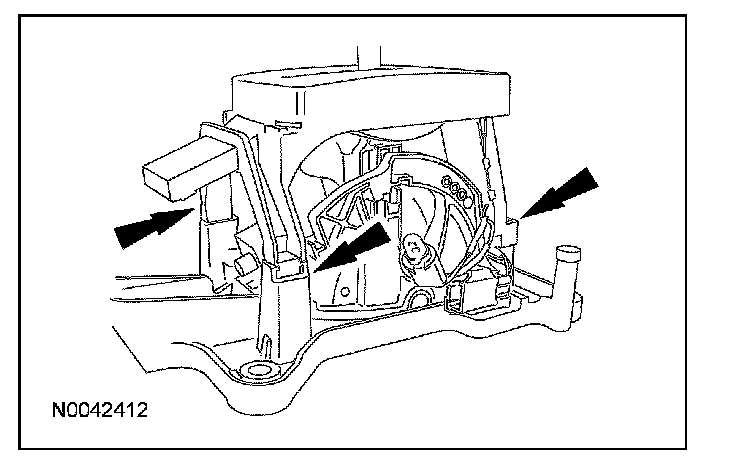

Release the 3 tabs and remove the PRNDL bezel selector lever knob and knob bezel.





Installation

Vehicles equipped with a TC switch
1. Route the TC switch wiring harness through the selector lever knob bezel and the PRNDL bezel.

All vehicles

2. CAUTION: Be sure that the override lever is inserted in the override lever guide or the shift interlock override button will not work correctly.

NOTE: Selector lever removed for clarity.

Install the PRNDL bezel, selector lever knob and knob bezel on the selector lever.
^ Position the override lever in the override lever guide.
^ Make sure that the 3 locking tabs are locked in place.





Vehicles equipped with a TC switch

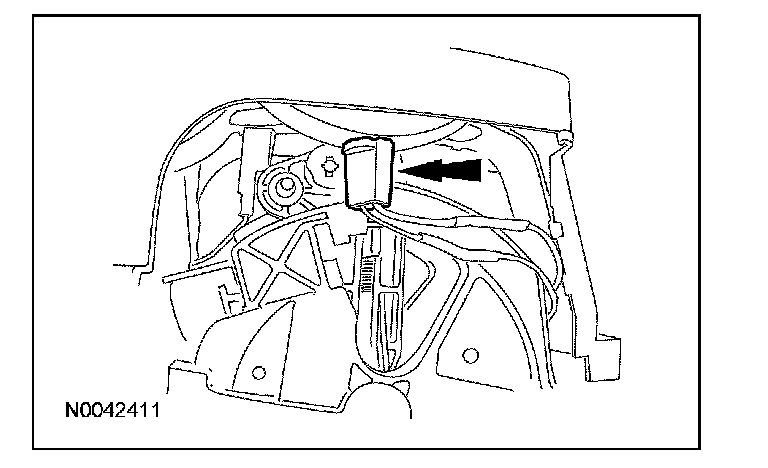

3. Connect the TC switch electrical connector and install the wiring harness retainer on the selector lever housing.





Vehicles equipped with LED illumination

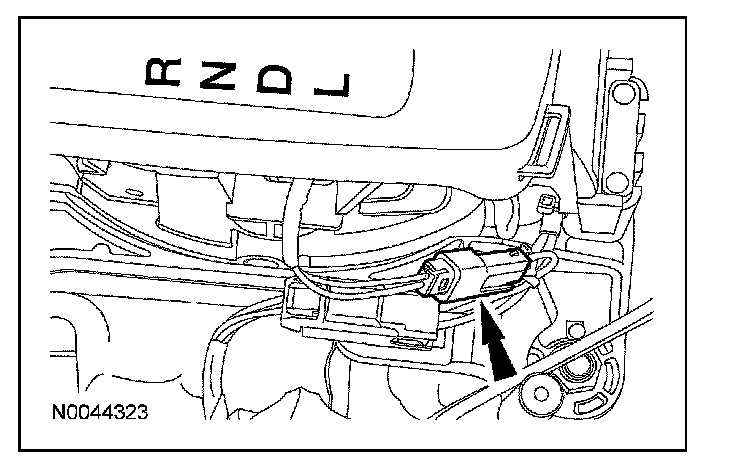

4. Connect the LED electrical connector.





Vehicles equipped with a light bulb
5. Connect the light to the PRNDL bezel.





All vehicles

6. CAUTION: Do not overtighten the selector lever knob bolts or damage to the selector lever or knob may occur.

Install the selector lever knob and 2 new bolts.
^ Tighten to 2 Nm (18 lb-in).

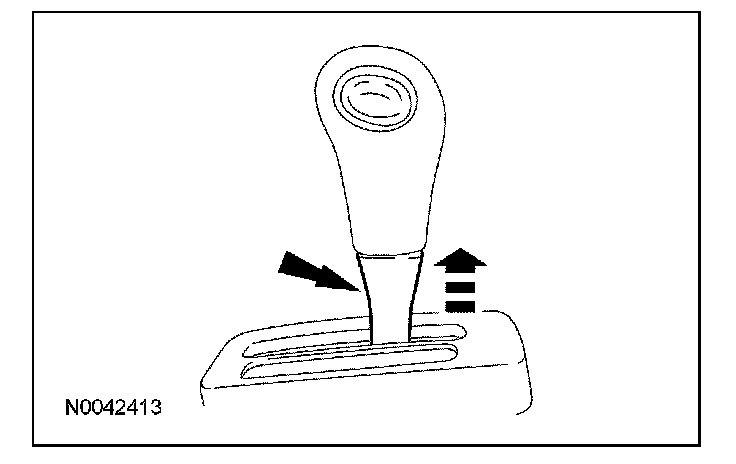

7. Slide the lower selector lever knob bezel up and snap it into place.





Fusion/Milan

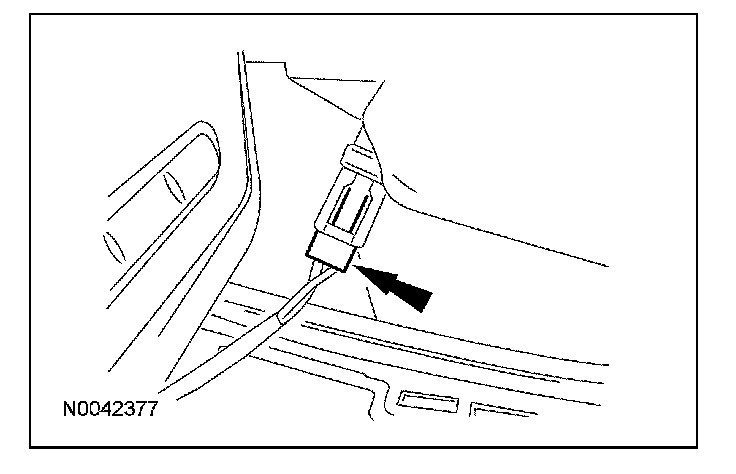

8. Connect the power outlet electrical connector.





9. Install the power outlet trim panel in the center console.





All vehicles
10. Install the upper console panel.





11. Install the PRNDL trim ring.
