Seat Position Sensor: Service and Repair

SEAT POSITION SENSOR







NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

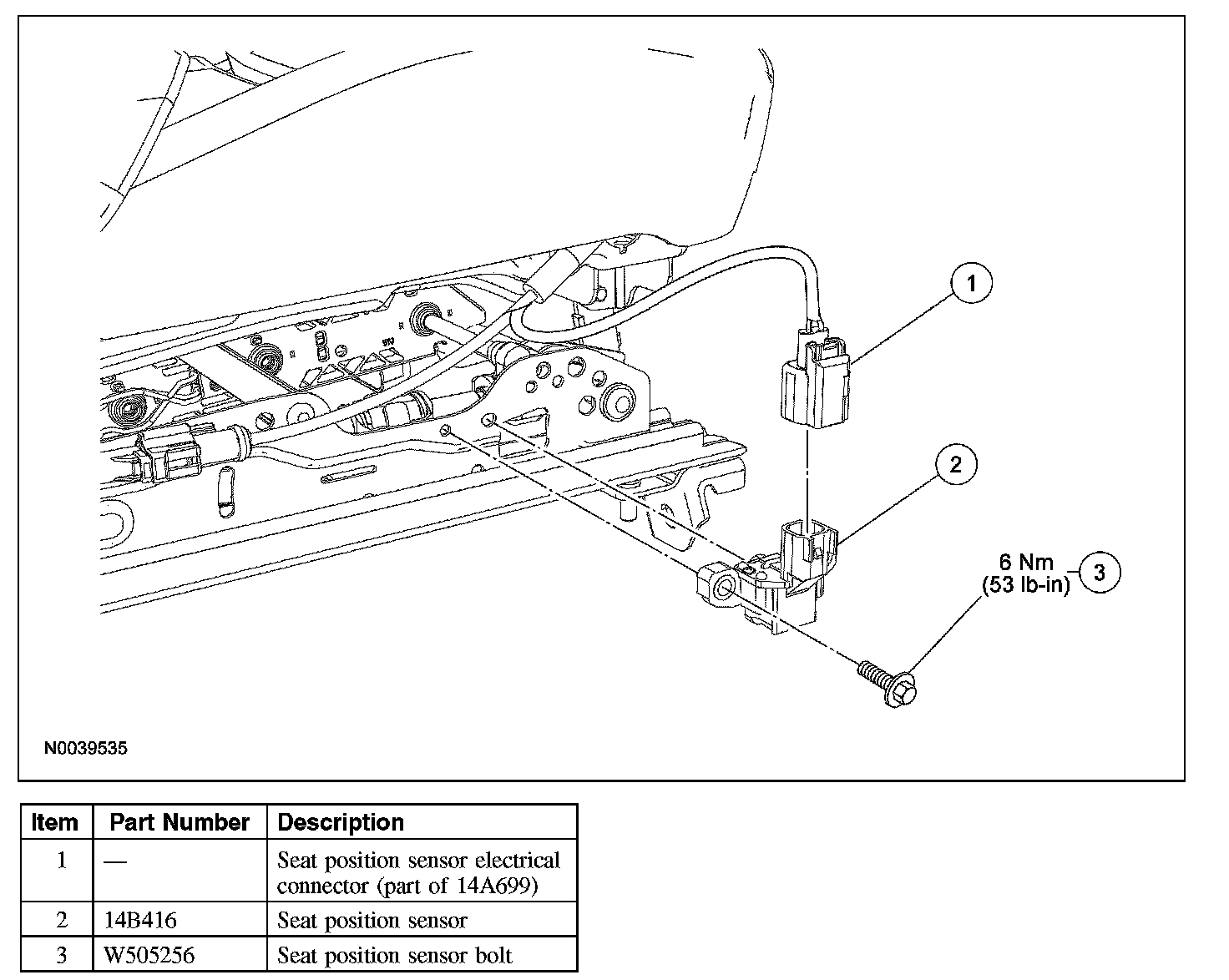

- Power seat track seat position sensor shown, manual seat track position sensor similar.

1. Position the front seat to the rearmost and upward position.
2. Depower the SRS.
3. Disconnect the seat position sensor electrical connector.

4. WARNING: Always tighten the seat position sensor retaining bolt to specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.

NOTE: Note the position of the seat position sensor locating tab for installation.

Remove the bolt and the seat position sensor.
- To install, tighten to 6 Nm (53 lb-in).

5. To install, reverse the removal procedure.
6. Repower the SRS.
