Passenger Air Bag Module

PASSENGER AIR BAG MODULE

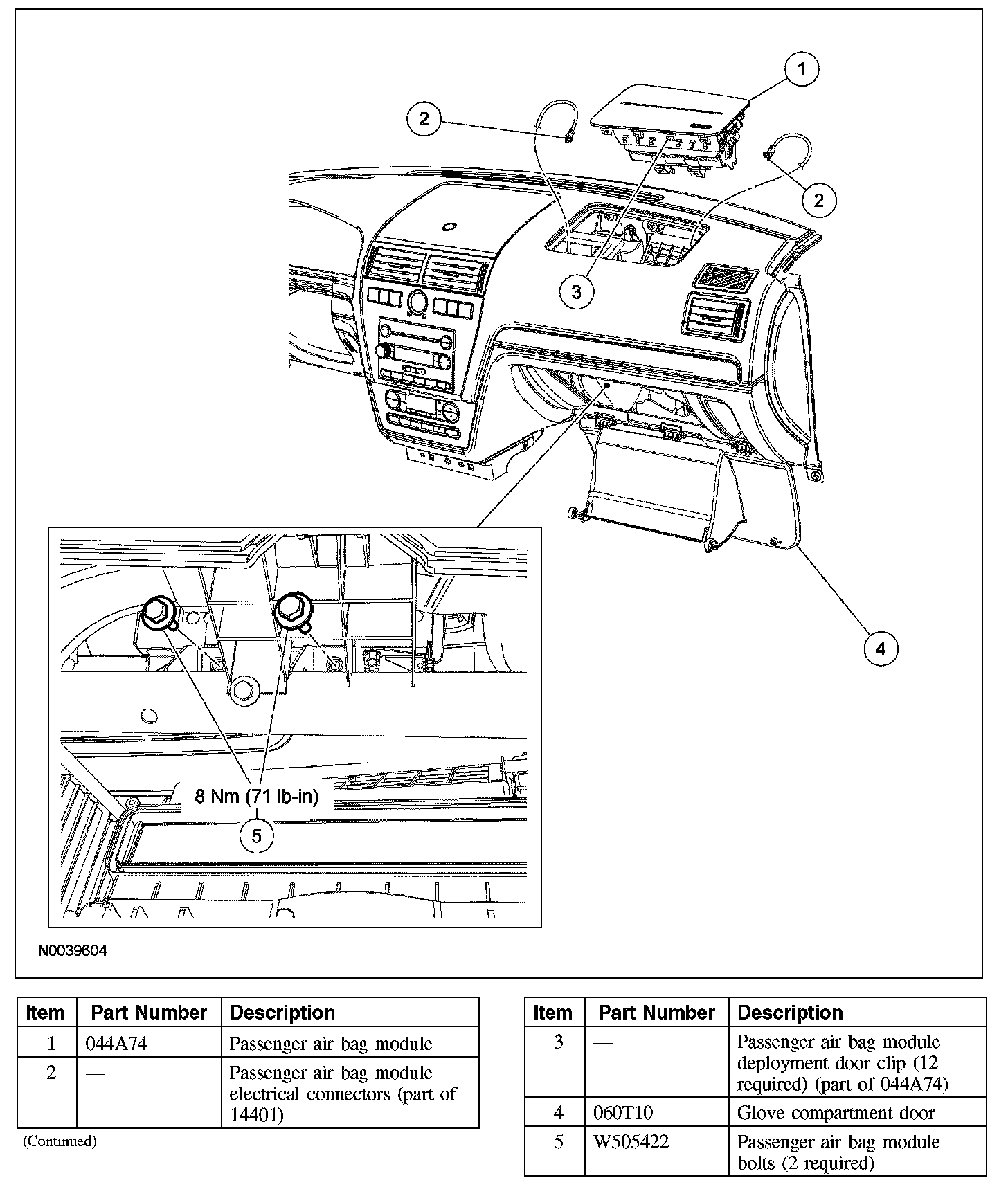

Removal

WARNING:
- Always wear eye protection when servicing a vehicle. Failure to follow this instruction may result in serious personal injury.
- Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
- Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
- Do not repaint air bag modules with discolored or damaged trim covers or deployment doors; new air bag modules must be installed. Failure to follow this instruction may result in the air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

1. Depower the SRS.
2. Open the glove compartment door and release the door damper cable, then fully lower the door.







3. Remove the 2 passenger air bag module bolts.

4. CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment doors. Damage to the air bag module may occur.

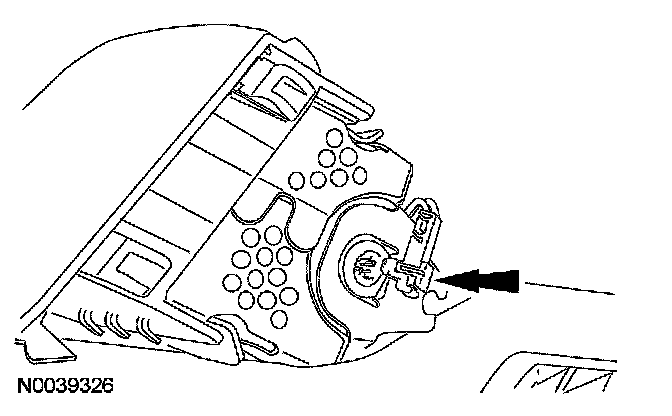

Through the glove compartment opening, release the deployment door clips from the instrument panel and then lift the passenger air bag module out of the instrument panel.

5. NOTE: RH shown, LH similar.

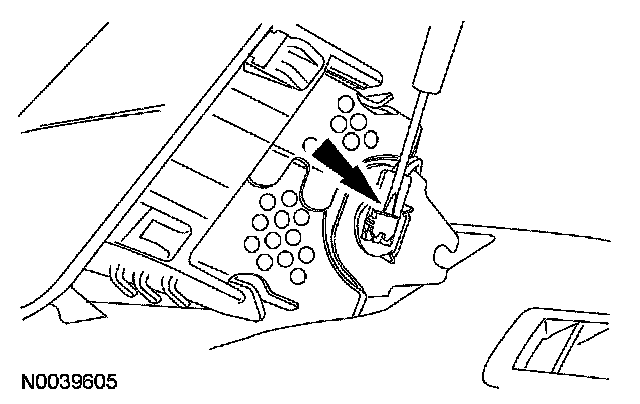

Using a small screwdriver as shown, lift up and release the locking buttons on the 2 passenger air bag module electrical connectors.







6. CAUTION: Do not pull the passenger air bag module electrical connectors out by the locking buttons. Damage to the locking buttons can occur.

NOTE: RH shown, LH similar.

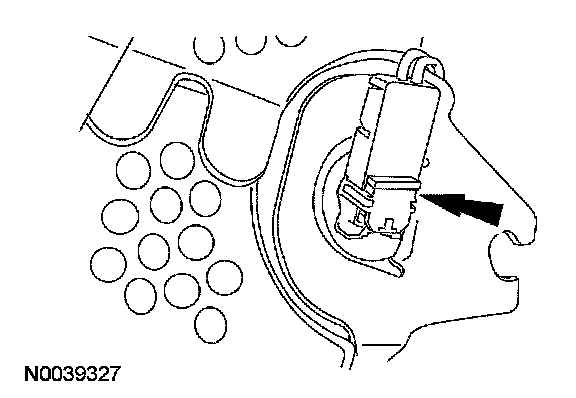

With the locking buttons released, remove the 2 electrical connectors and the passenger air bag module.







Installation

1. CAUTION:
- Do not install the passenger air bag module electrical connectors by the locking buttons. Damage to the locking buttons can occur.
- The passenger air bag module electrical connector locking buttons must be in the released position when the connector is being installed or connector damage may occur.
- The passenger air bag module electrical connectors are unique and cannot be reversed when connected to the passenger air bag module. Match the electrical connector key to the keyway in the passenger air bag module. Do not force the electrical connectors into the passenger air bag module. Damage to the connector or component may occur.

NOTE: RH shown, LH similar.

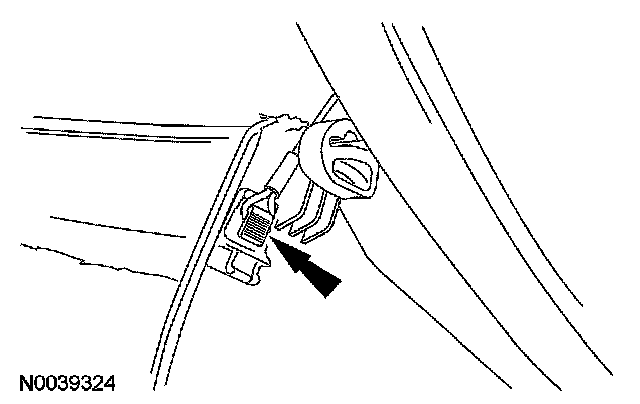

With the locking buttons released, install the 2 passenger air bag module electrical connectors fully into the passenger air bag module and seat the locking buttons.







2. CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment doors. Damage to the air bag module may occur.

NOTE: During air bag module installation, make sure all the deployment door clips are fully seated in the instrument panel.

Install the passenger air bag module in the instrument panel.

3. Install the 2 passenger air bag module bolts.
- Tighten to 8 Nm (71 lb-in).

4. Attach the door damper cable and close the glove compartment door.
5. Repower the SRS.
