Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal

Lower End Components - Exploded View, Crankshaft Pulley andCrankshaft Front Seal:

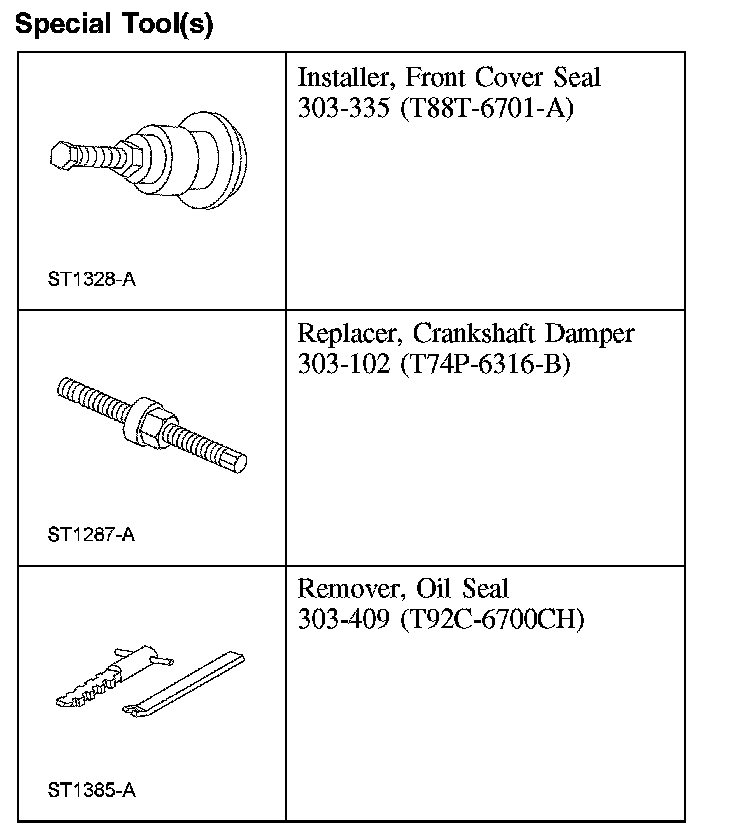

Special Tool(s):

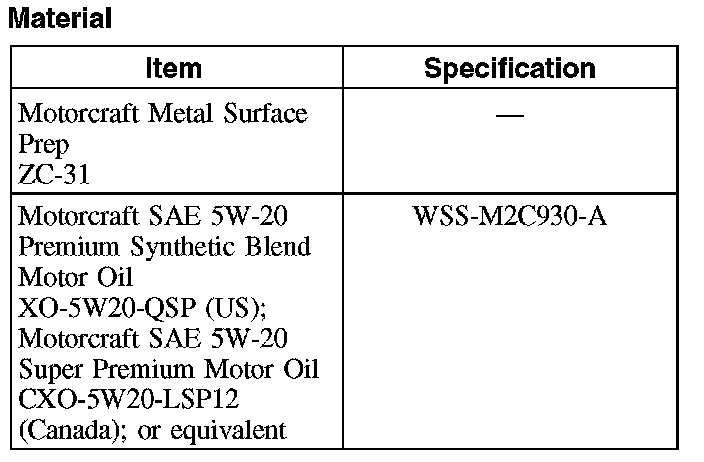

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the crankshaft pulley.
3. Using the special tool, remove and discard the crankshaft front seal.





Installation

1. NOTE: Clean all sealing surfaces with metal surface prep.

Apply clean engine oil to the seal lip and seal bore before installing the seal.

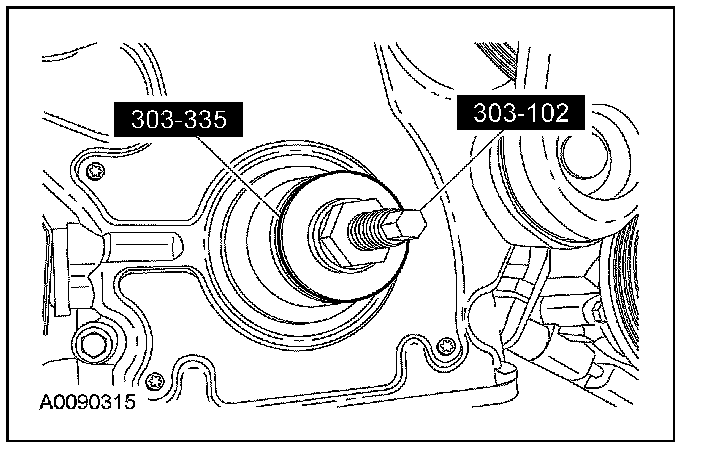

2. Using the special tools, install a new crankshaft front seal.
3. Install the crankshaft pulley.
